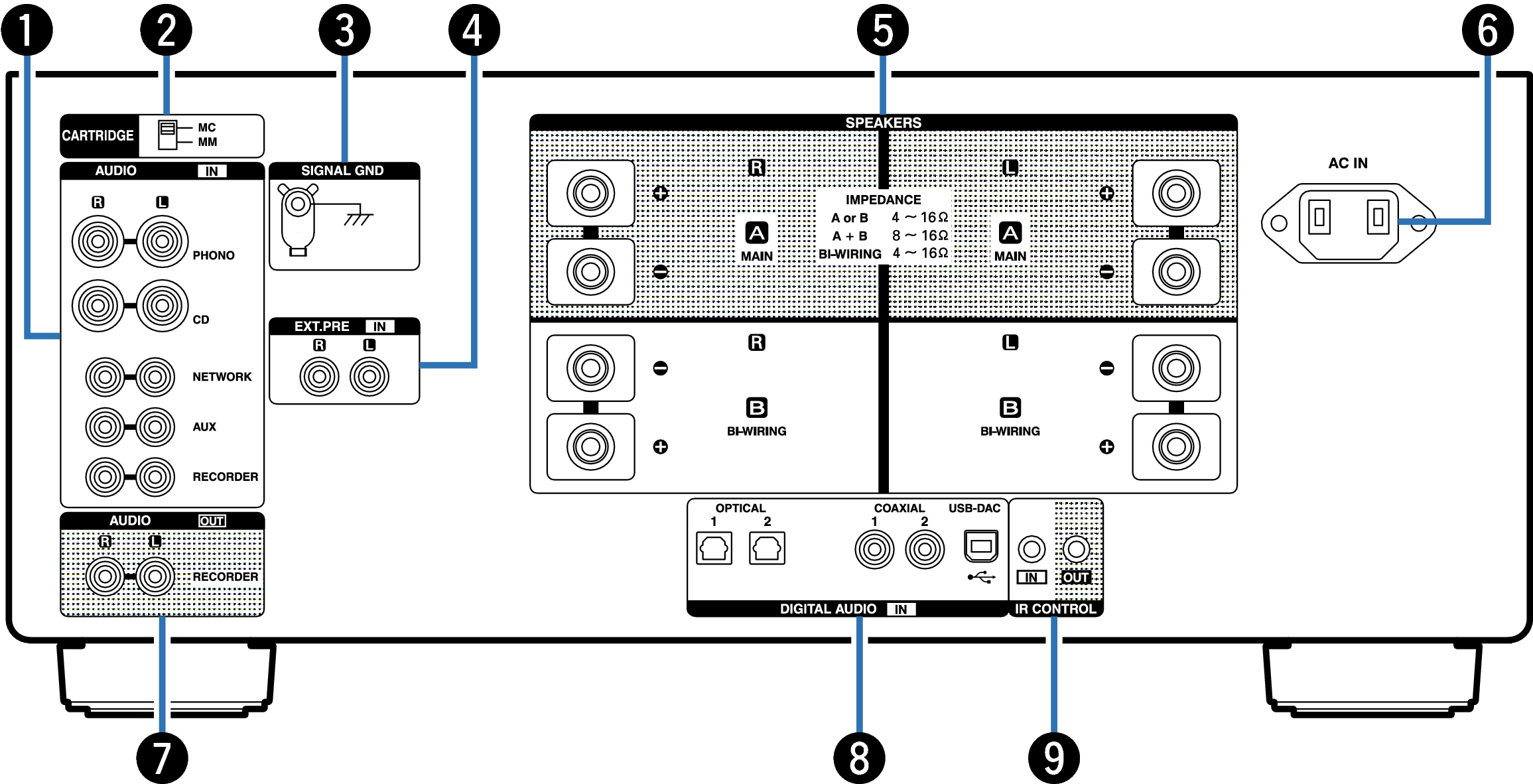

Rear panel
Analog audio connectors (AUDIO IN)
Used to connect devices equipped with analog audio connectors.
CARTRIDGE selection switch
Set this switch to MM or MC according to the type of cartridge used on your turntable.
SIGNAL GND terminal
Used to connect a turntable. link
EXT.PRE IN connectors
Used to connect a pre-amplifier when this unit is used as a power amplifier. link
The volume should be adjusted on the connected device.
Speaker terminals (SPEAKERS)
Used to connect speakers. link
AC inlet (AC IN)
Used to connect the power cord. link
AUDIO OUT connectors (RECORDER)
Used to connect the input connector of a recorder. link
DIGITAL AUDIO IN connectors
Used to connect devices equipped with digital audio output connectors and PC.
IR control input/output connectors (IR CONTROL IN/OUT)
Used to connect Denon network audio players with an IR controller.
