Remote control unit

The remote control provided with this unit can control a Denon CD player.

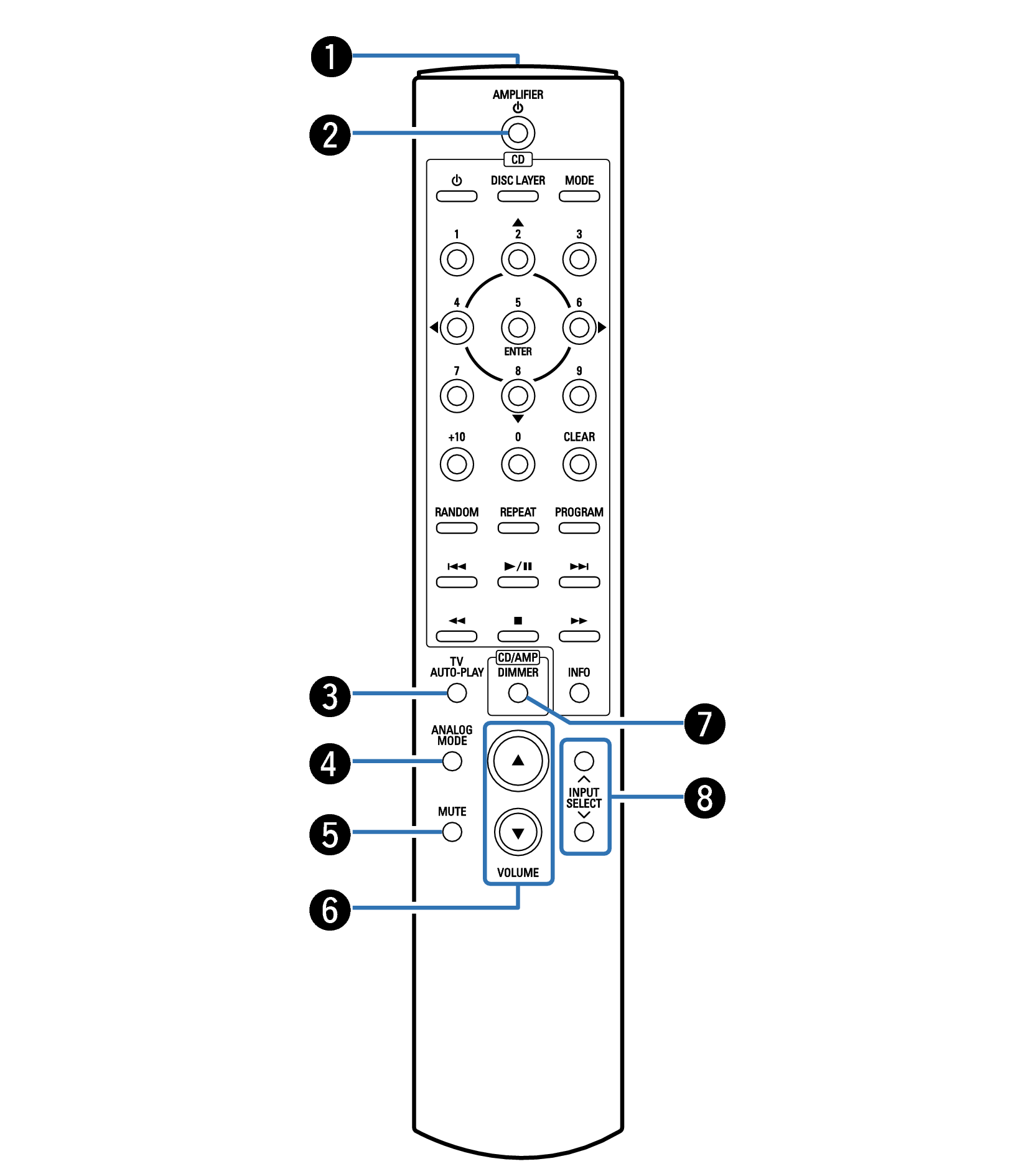

Operating this unit

Name RC1237 PMAA110 1

Remote control signal transmitter

This transmits signals from the remote control unit. link

Power operation button (AMPLIFIER Power Button )

This turns the power on/off (standby). link

TV AUTO-PLAY button

This switches the digital input for the TV auto play. link

ANALOG MODE button

This switches the analog mode 1/2/off. link

MUTE button

This mutes the output audio. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level. link

DIMMER button

This switches the brightness of the display.link

INPUT SELECT buttons

This selects the input source. link

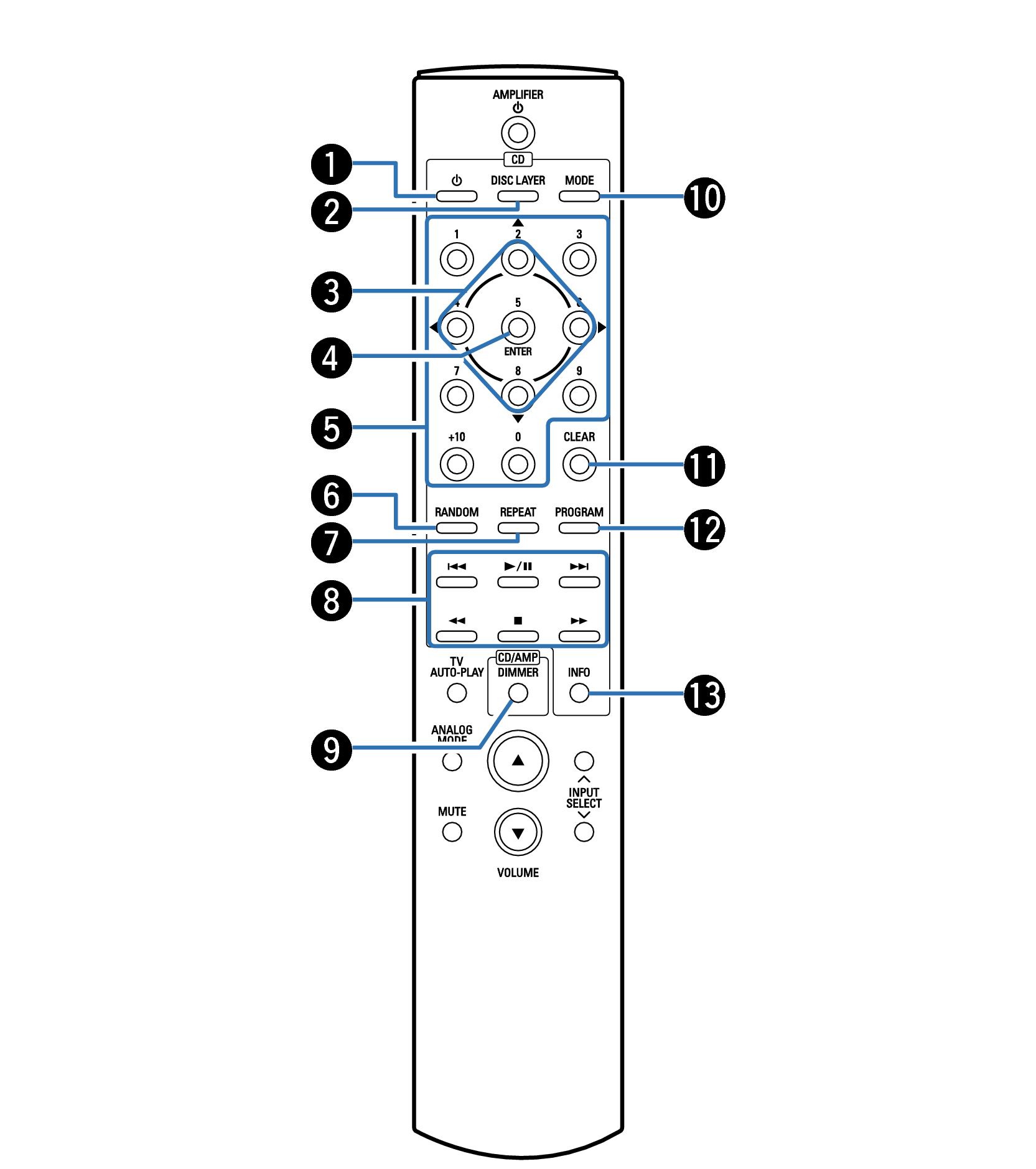

CD player operations

Name RC1237 PMAA110 2

A Denon CD player can be operated.

Power operation button ( Power Button )

DISC LAYER button

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

ENTER button

Number buttons (0 – 9, +10)

RANDOM button

REPEAT button

System buttons

DIMMER button

MODE button

CLEAR button

PROGRAM button

Information button (INFO)

The remote control may not operate some products.
