Connecting the speaker cables

Carefully check the left (L) and right (R) channels and + and – polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.

Peel off about 10 mm of sheathing from the tip of the speaker cable, then twist the core wire tightly.
Conn spCable1

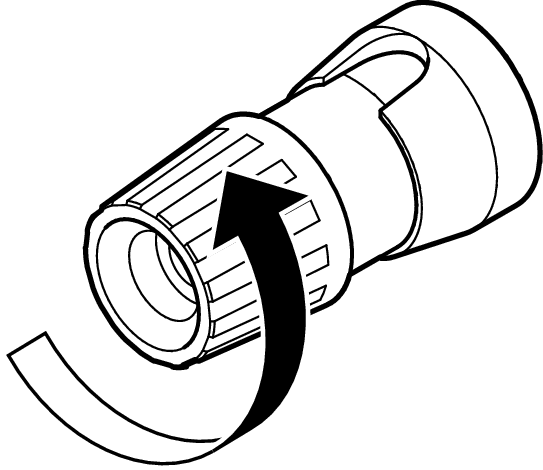

Turn the speaker terminal counterclockwise to loosen it.
Conne M40 SP cable 1
Insert the speaker cable’s core wire to the hilt into the speaker terminal.
Conne M40 SP cable 2

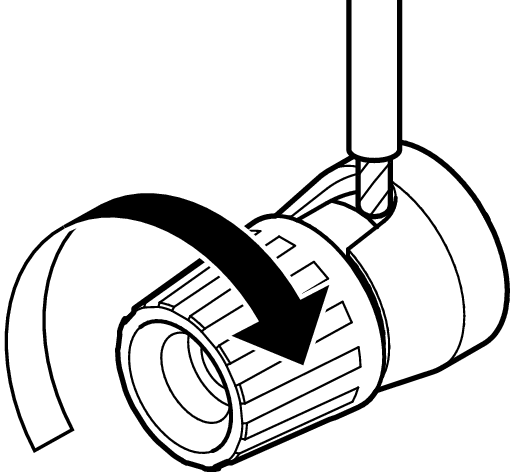

Turn the speaker terminal clockwise to tighten it.
Conne M40 SP cable 3
