Playback in ZONE2/ZONE3
The or indicator lights.
The indicator on the display lights.
Power in ZONE2 or ZONE3 can be turned on or off by pressing ZONE2 ON/OFF or ZONE3 ON/OFF on the main unit.
The audio signal of the selected source is output to ZONE2 or ZONE3.

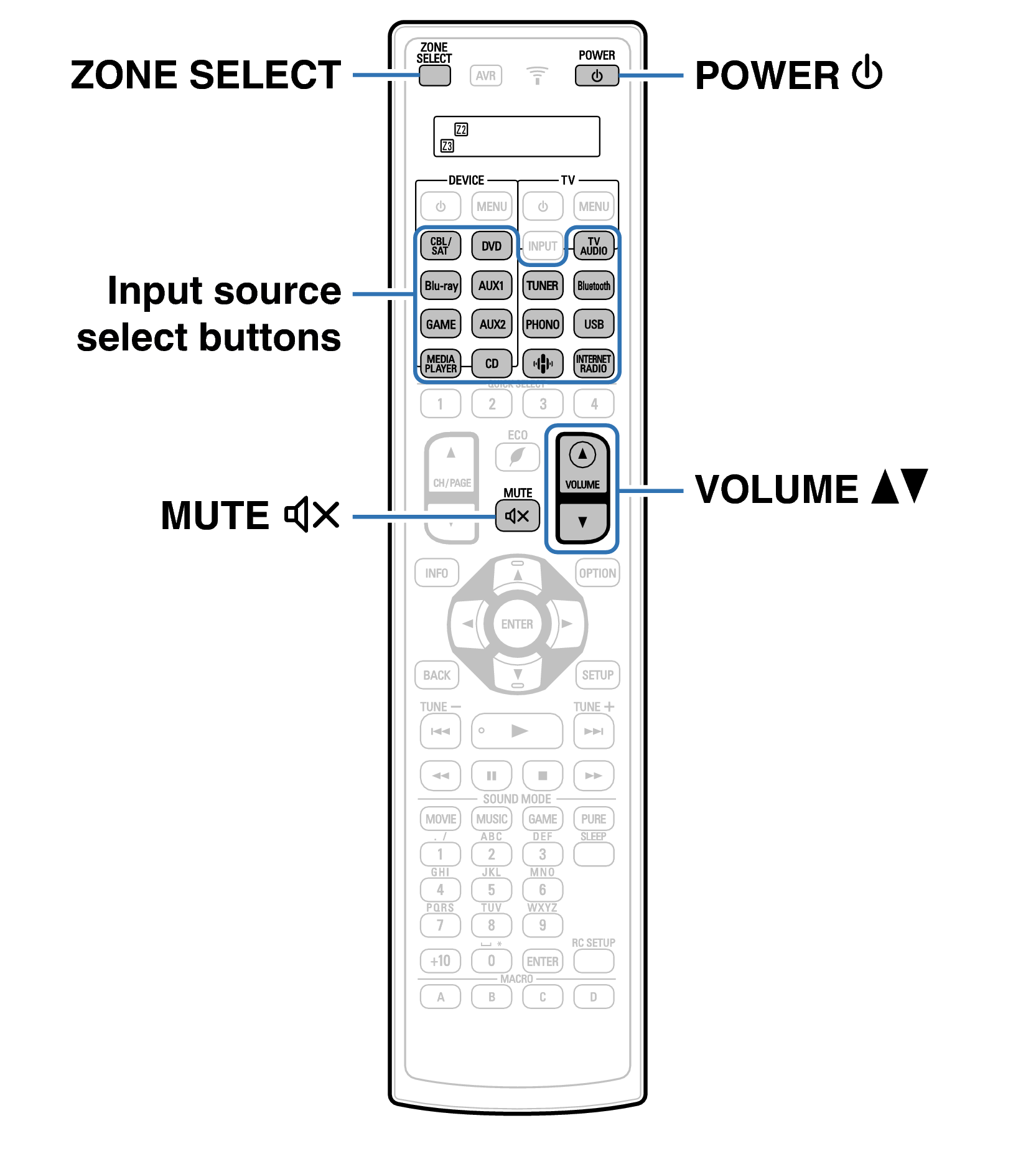

To perform an operation with the main unit, press ZONE2 SOURCE or ZONE3 SOURCE. Each time you press ZONE2 SOURCE or ZONE3 SOURCE, the input source changes.
Adjusting the volume (ZONE2/ZONE3)
Use VOLUME to adjust the volume.
At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. link
Turn MASTER VOLUME after pressing ZONE2 SOURCE or ZONE3 SOURCE on the main unit to adjust the volume.
Turning off the sound temporarily (Muting) (ZONE2/ZONE3)
Press MUTE .
The sound is reduced to the level set at “Mute Level” in the menu. link
To cancel mute, either adjust the sound volume or press MUTE again.
