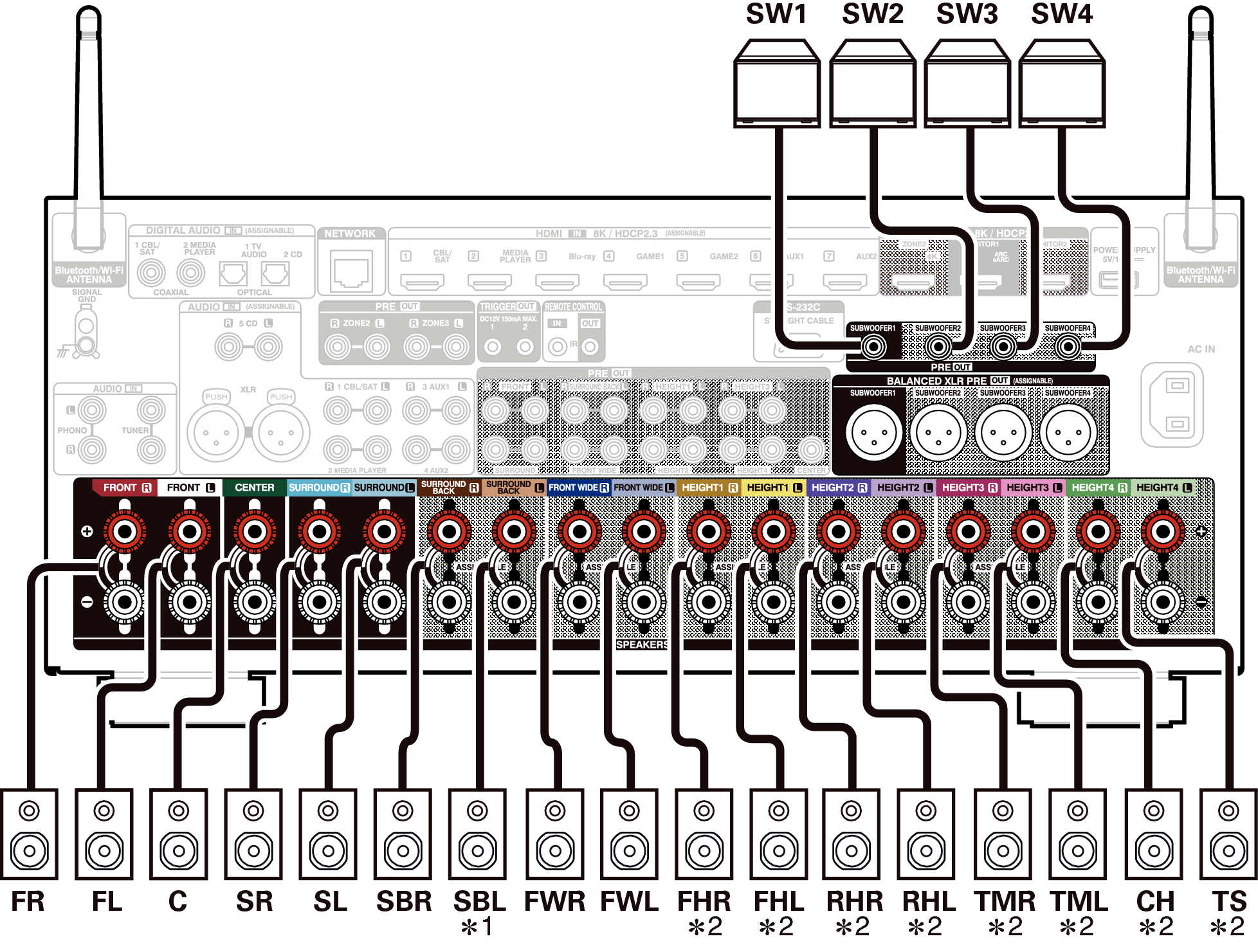

Connecting speakers to the speaker terminals
You can connect 17.4 channel speakers to this unit.
Connect each speaker according to the speakers you are using.
When using a single surround back speaker, connect it to the SURROUND BACK L terminal.
The output terminals for Height/Ceiling/Dolby Atmos Enabled speakers vary according to the speaker combination that you use. For the speaker terminal that connects each Height/Ceiling/Dolby Atmos Enabled speaker, refer to “Speaker Layout” - “Layout”link.
