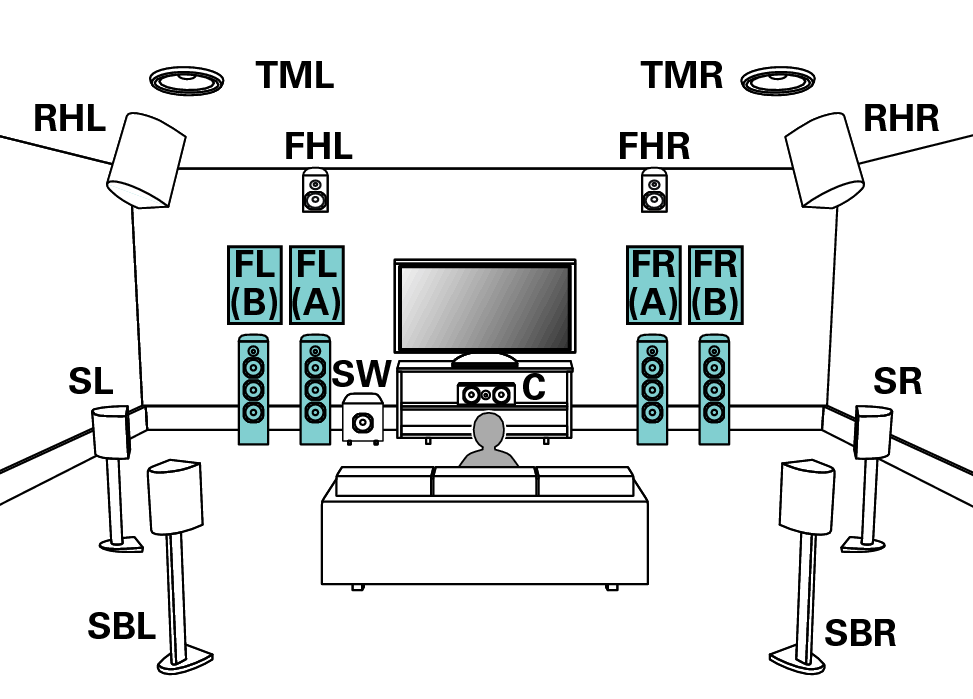

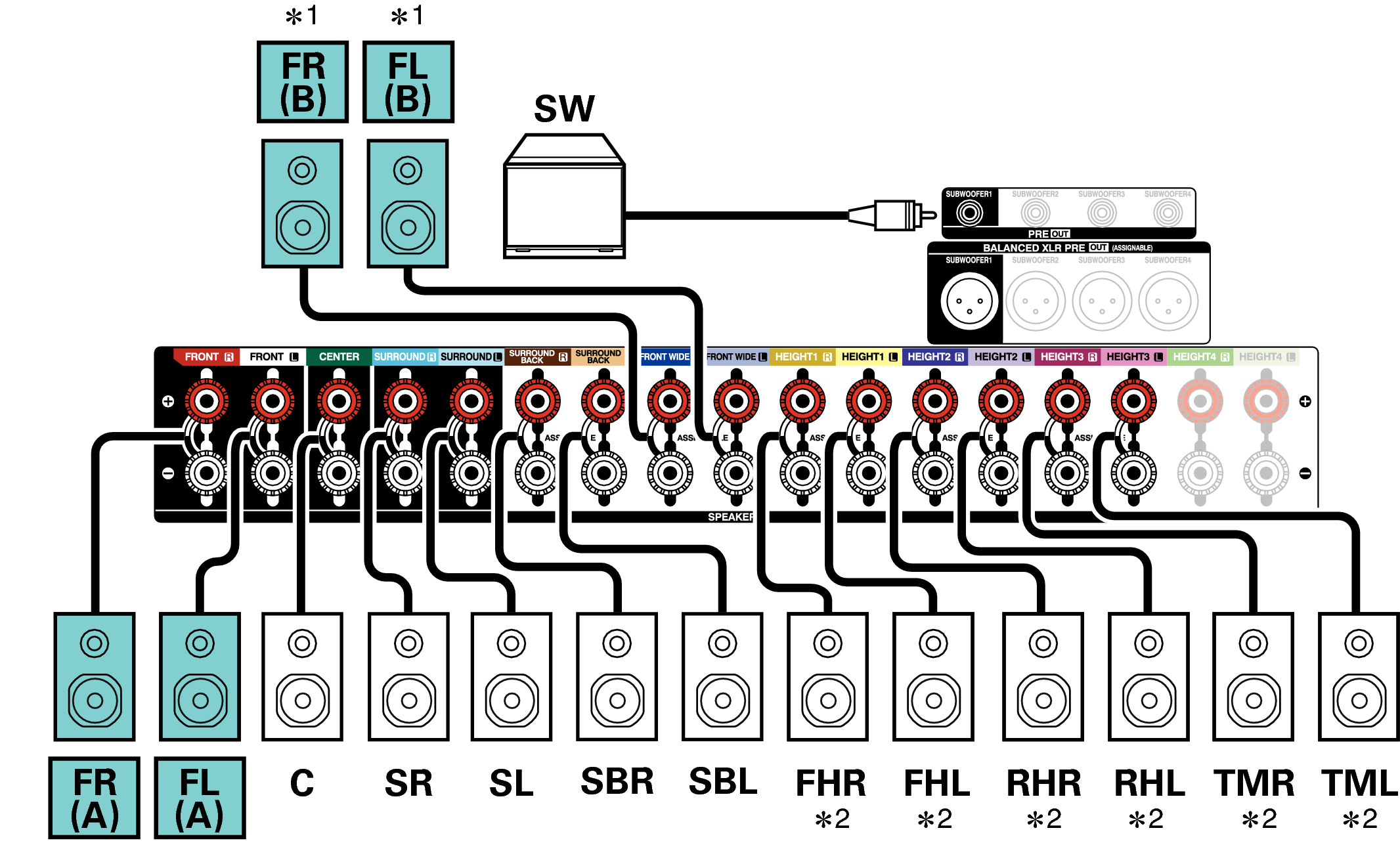

Connecting 13.1-channel speakers : Second pair of front speakers
This system enables switching playback between front speakers A and B as desired.
The speaker terminals for connecting to the second front speakers vary depending on the MAIN ZONE layout. Refer to “Speaker Layout” - “Front B”. link
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 speaker terminals. Set the speaker to be connected from Layout settings in the menu. link
INTEGRATED NETWORK AV AMPLIFIER
