Bi-amp connection
11.1-channel playback (bi-amp connection of front speakers)

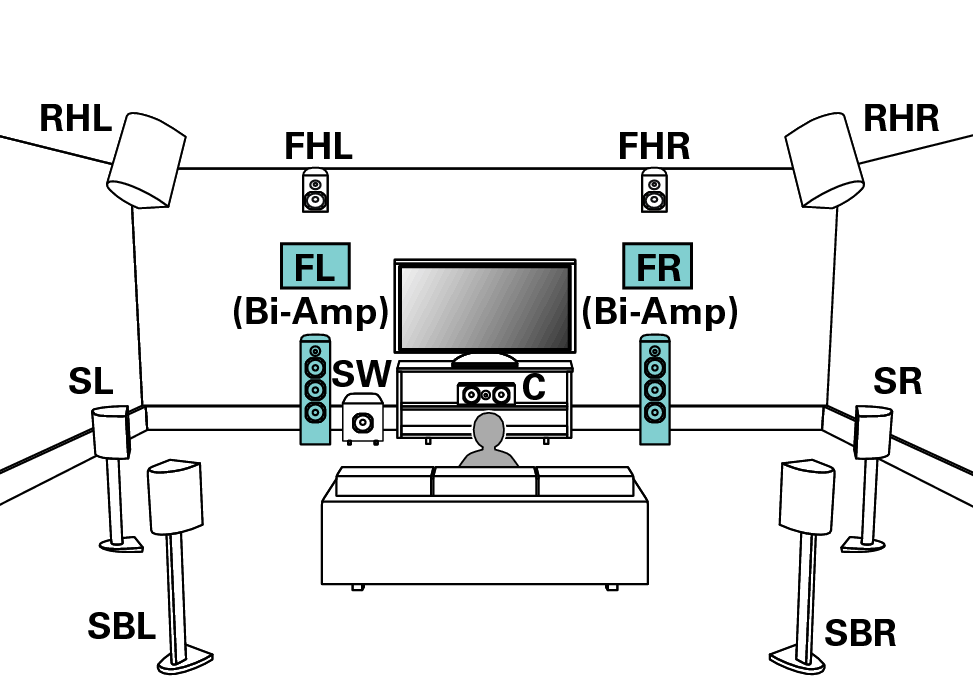

This system plays back 11.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
![Pict SP Layout 11.1 BiAmp](fig/Pict SP Layout 11.1 BiAmp_DRDZILprudoxvy.png)

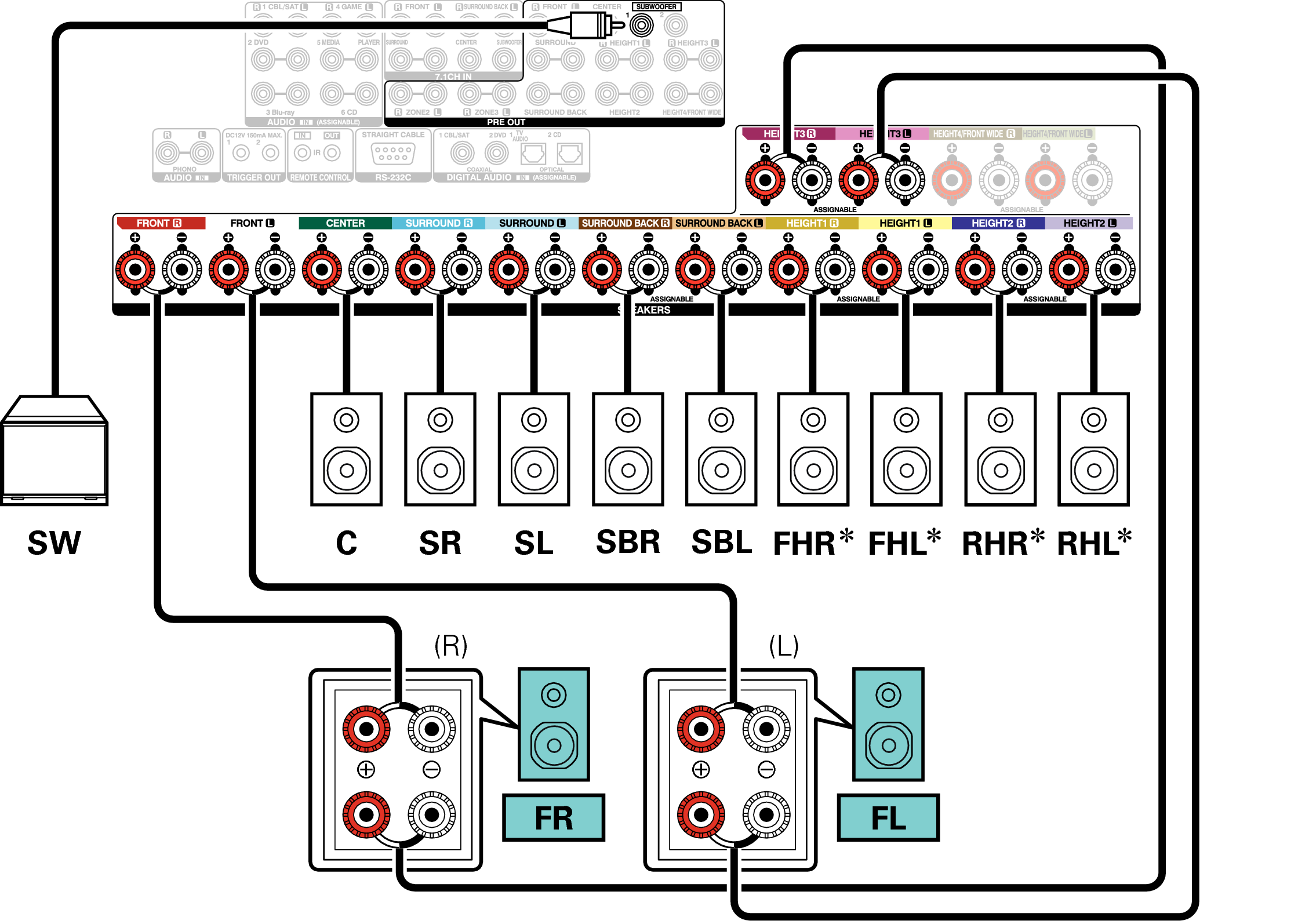

When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.
![Conne SP 11.1 BiAmp A110E3](fig/Conne SP 11.1 BiAmp A110E3_DRDZILofhsbxvz.png)
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker to be connected from “Height” in the menu. link
5.1-channel playback : Bi-amp connection of front, center and surround speakers
This system plays back 5.1-channels.

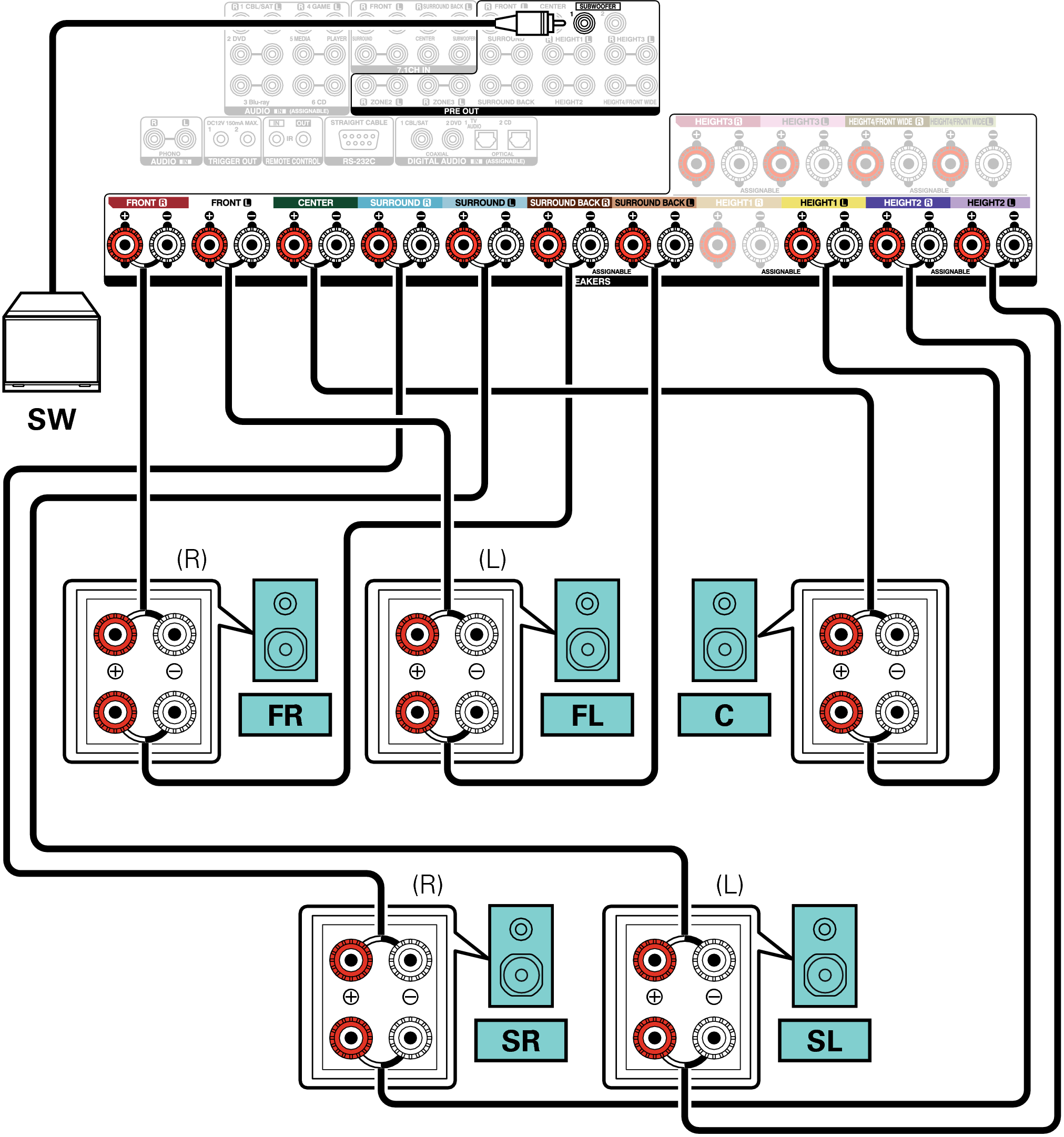

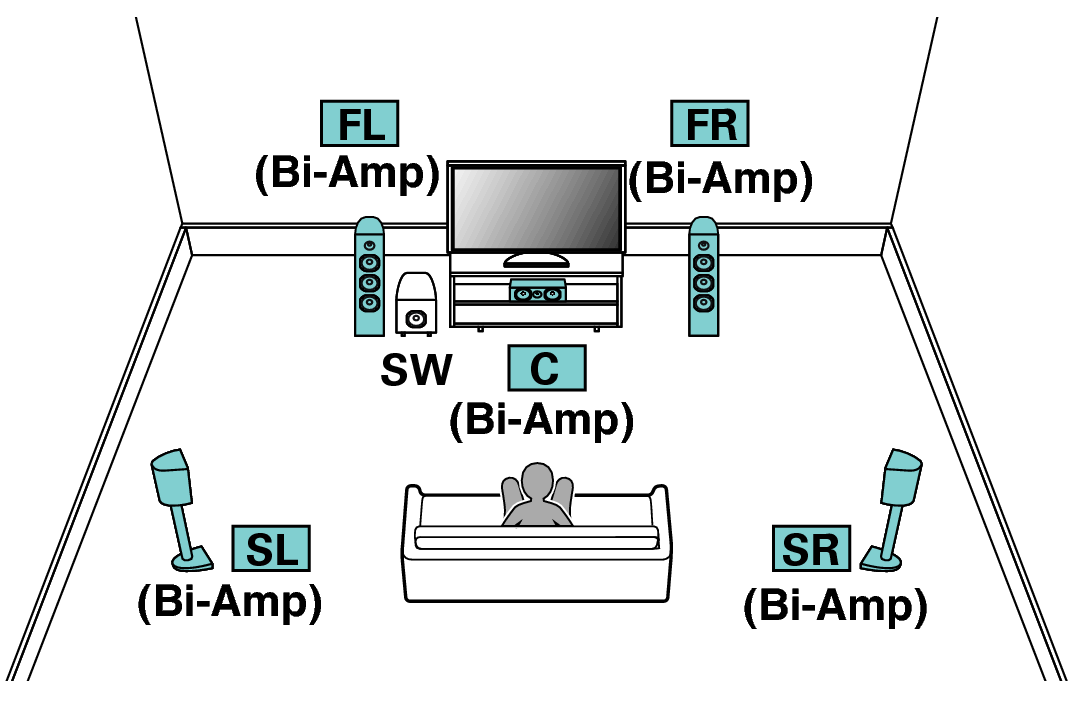

You can use the bi-amp connection for all front, center and surround speakers.
![Pict SP Layout 5.1 BiAmp X64](fig/Pict SP Layout 5.1 BiAmp X64_DRDZILblgivytc.png)
![Conne SP 5.1 BiAmp A110E3](fig/Conne SP 5.1 BiAmp A110E3_DRDZILtzmmysdx.png)
