Connecting multi-zone speakers

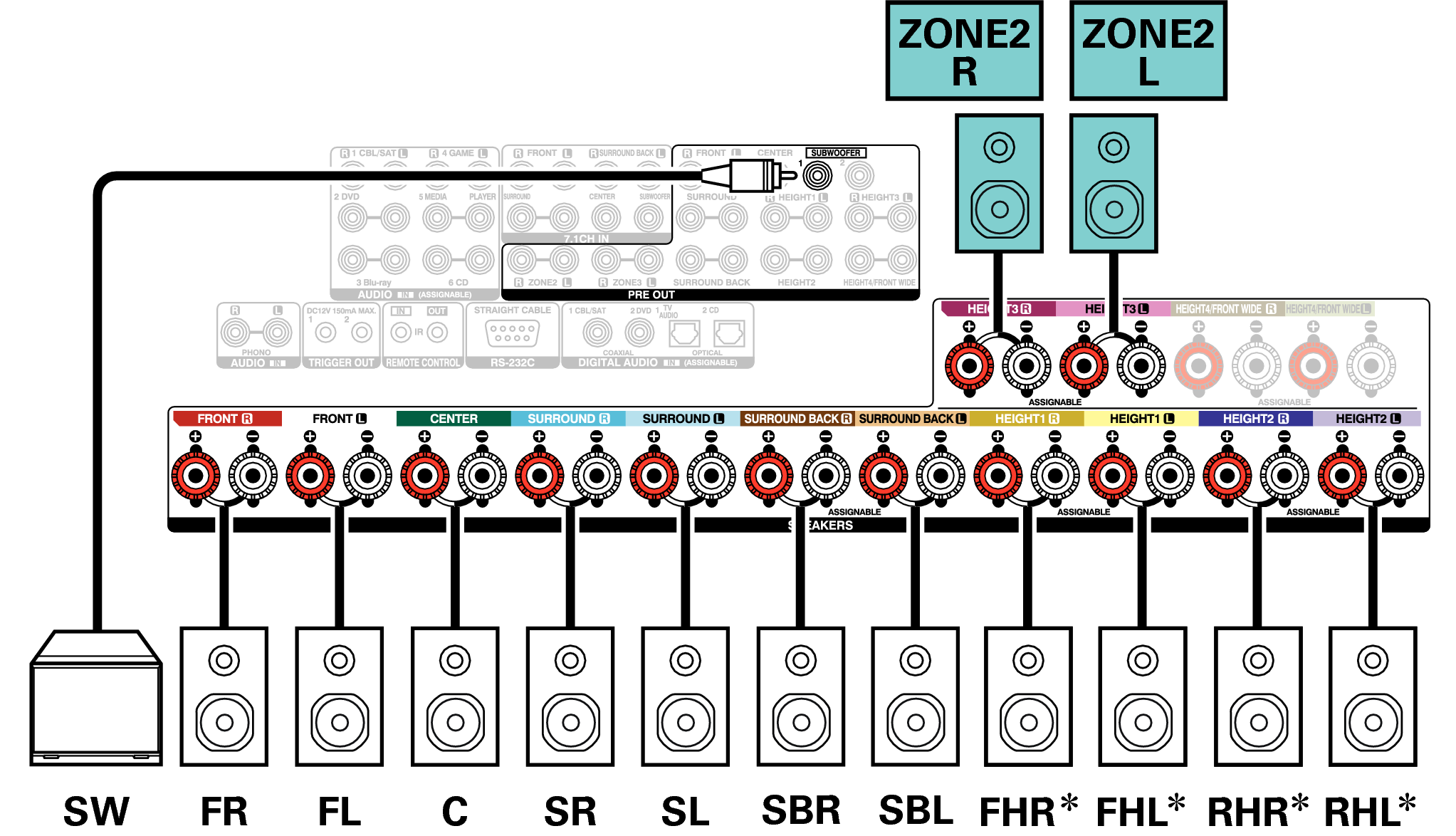

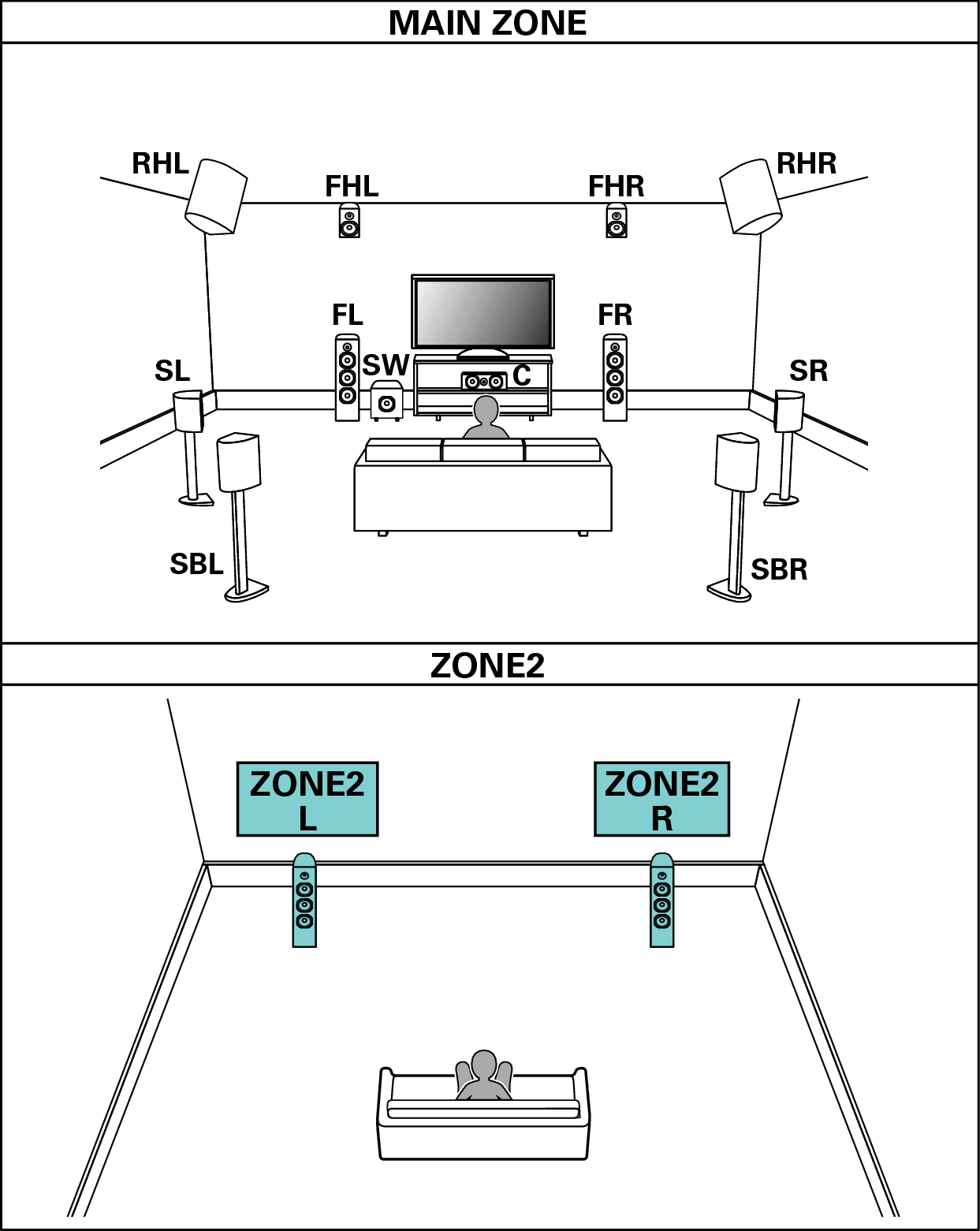

11.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)
This type of configuration plays back 11.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 11.1ch + ZONE3)).
![Pict SP Layout 11.1 2ch](fig/Pict SP Layout 11.1 2ch_DRDZILqlhnaqfb.png)
![Conne SP 11.1 2ch A110E3](fig/Conne SP 11.1 2ch A110E3_DRDZILwkjgyfhb.png)
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker to be connected from “Height” in the menu. link

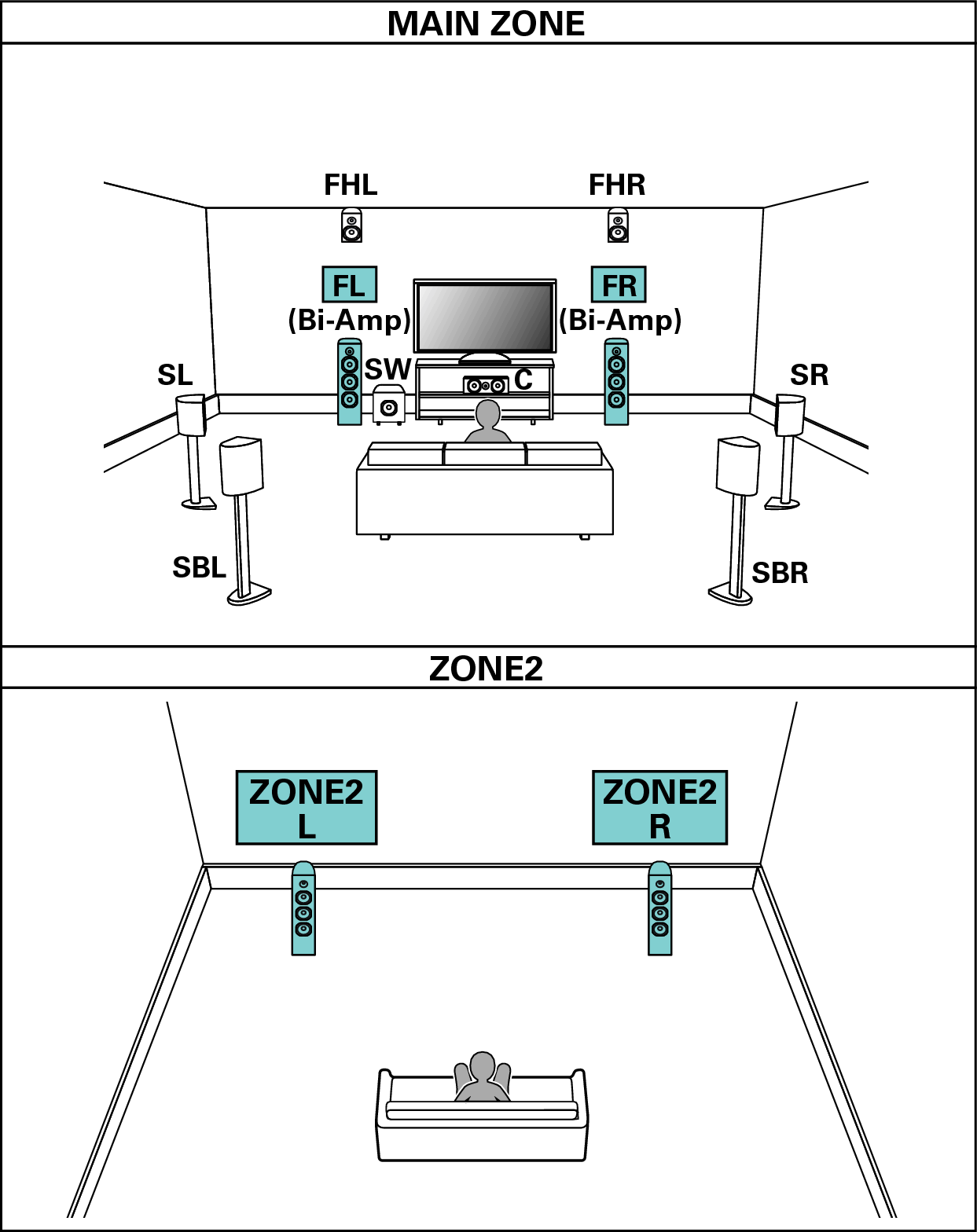

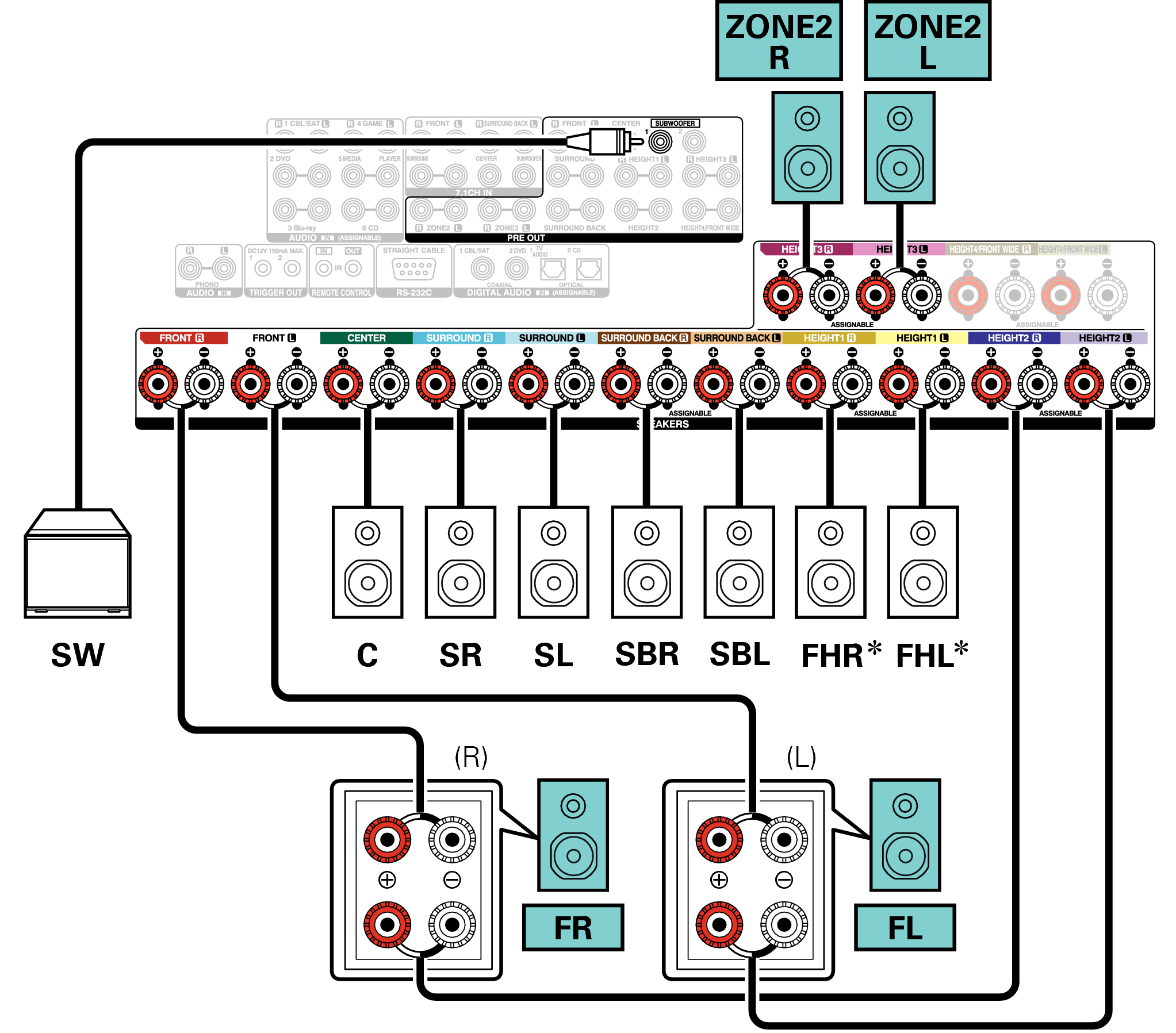

9.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2)
This type of configuration plays back 9.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.
![Pict SP Layout 9.1 BiAmp 2ch](fig/Pict SP Layout 9.1 BiAmp 2ch_DRDZILghawxsgh.png)
![Conne SP 9.1 BiAmp 2ch A110E3](fig/Conne SP 9.1 BiAmp 2ch A110E3_DRDZILdplroxgc.png)
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker to be connected from “Height” in the menu. link

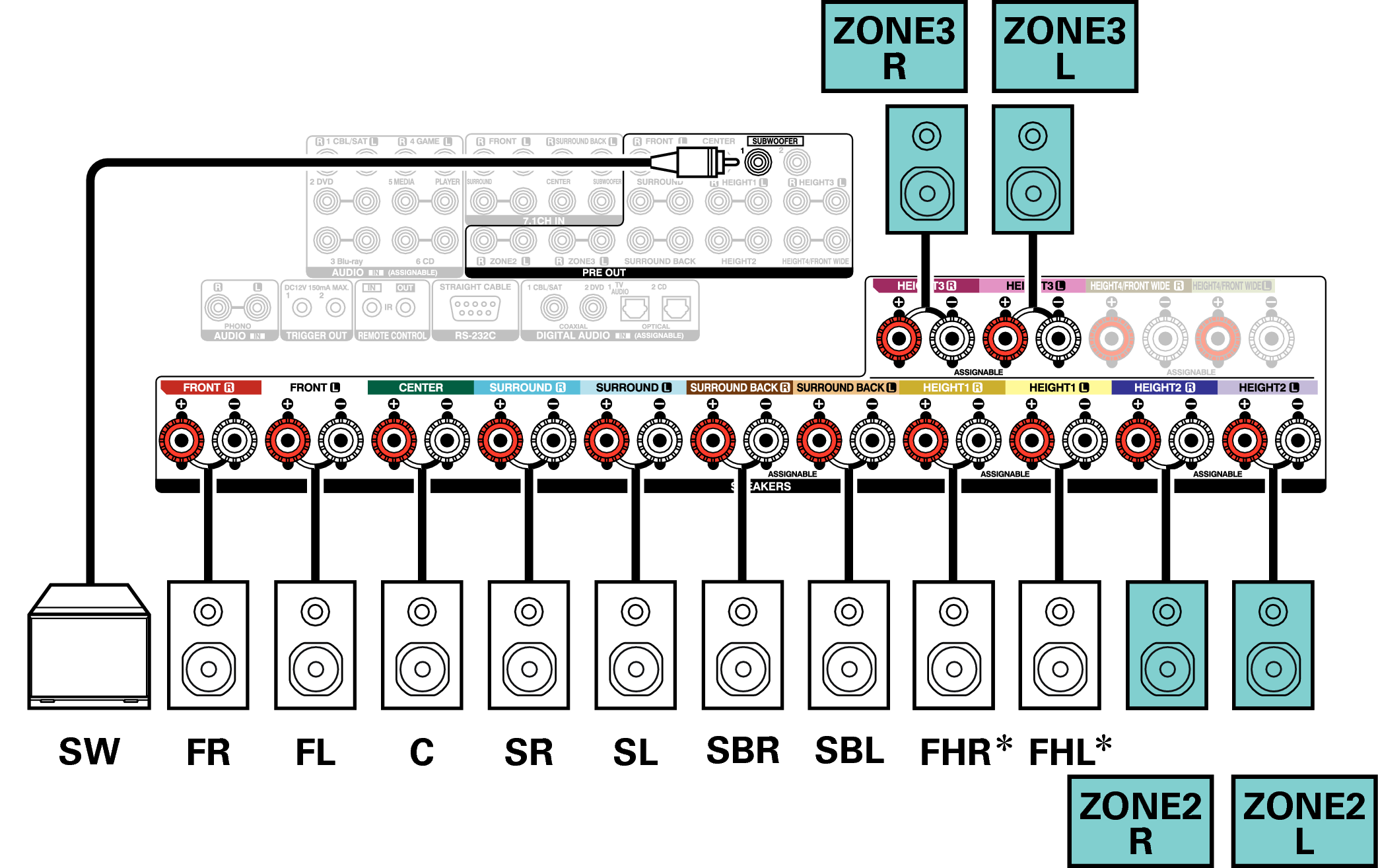

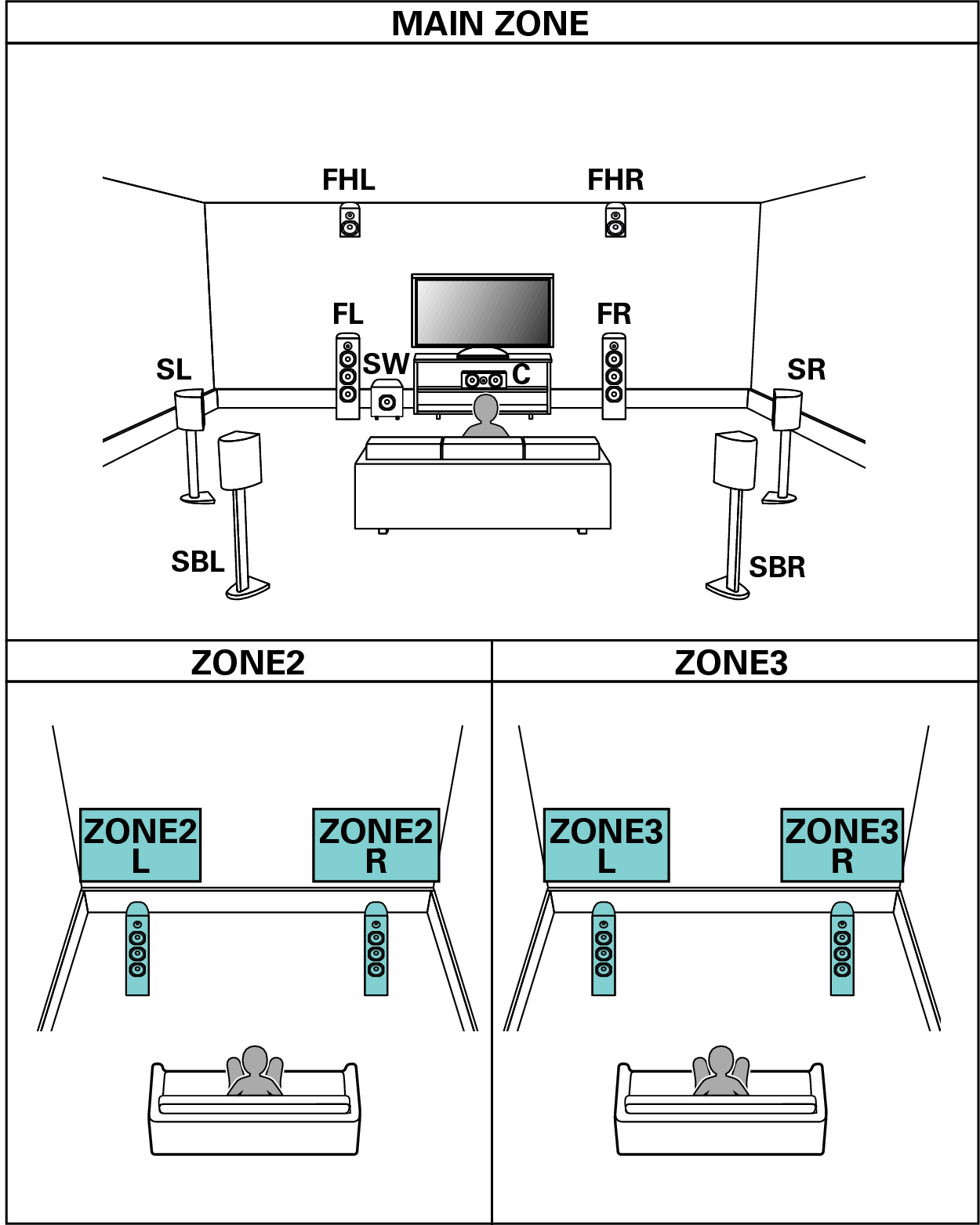

9.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3)
This type of configuration plays back 9.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3.
![Pict SP Layout 9.1 2ch](fig/Pict SP Layout 9.1 2ch_DRDZILljstvpeo.png)
![Conne SP 9.1 2ch A110E3](fig/Conne SP 9.1 2ch A110E3_DRDZILywmiqvzr.png)
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker to be connected from “Height” in the menu. link

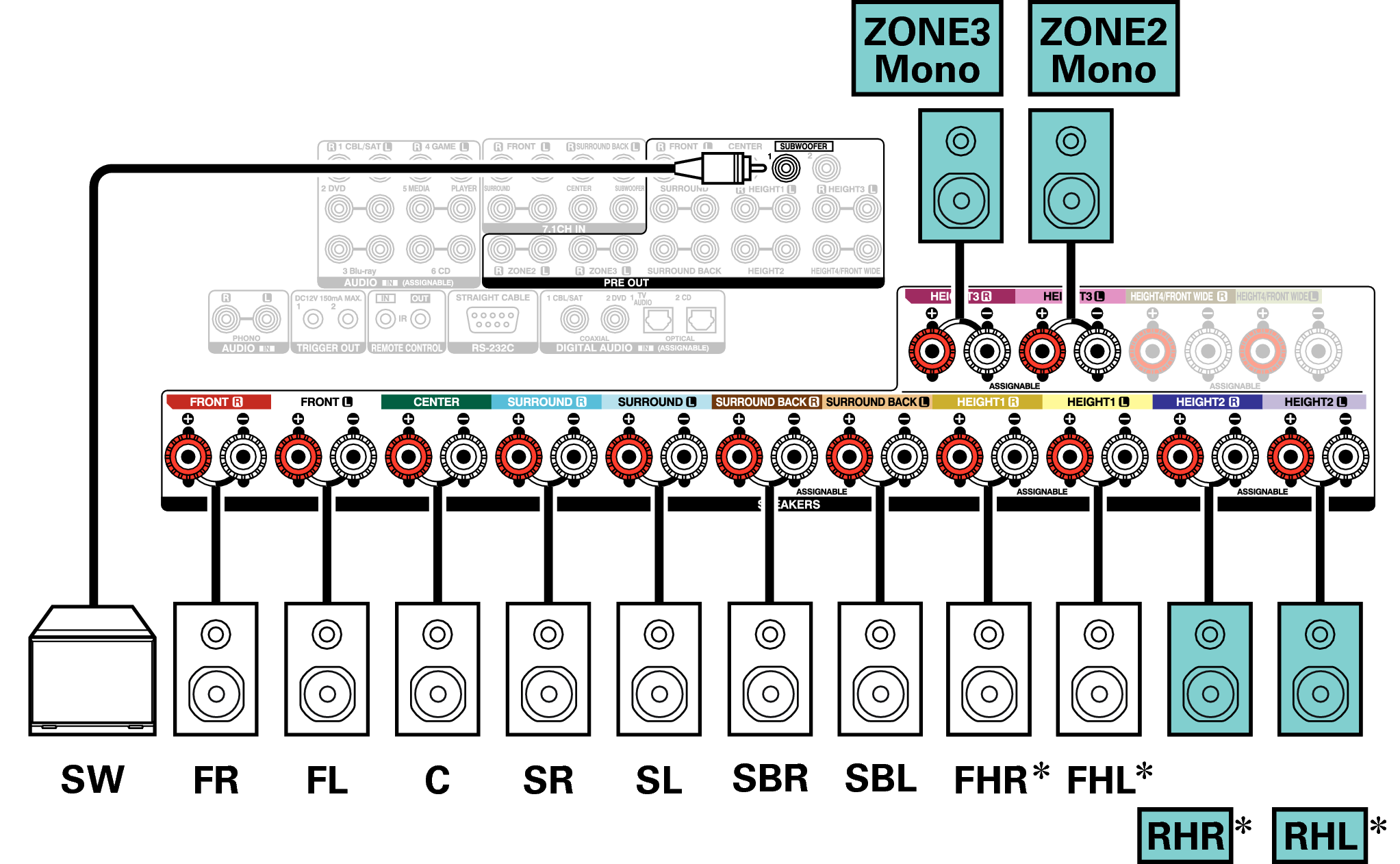

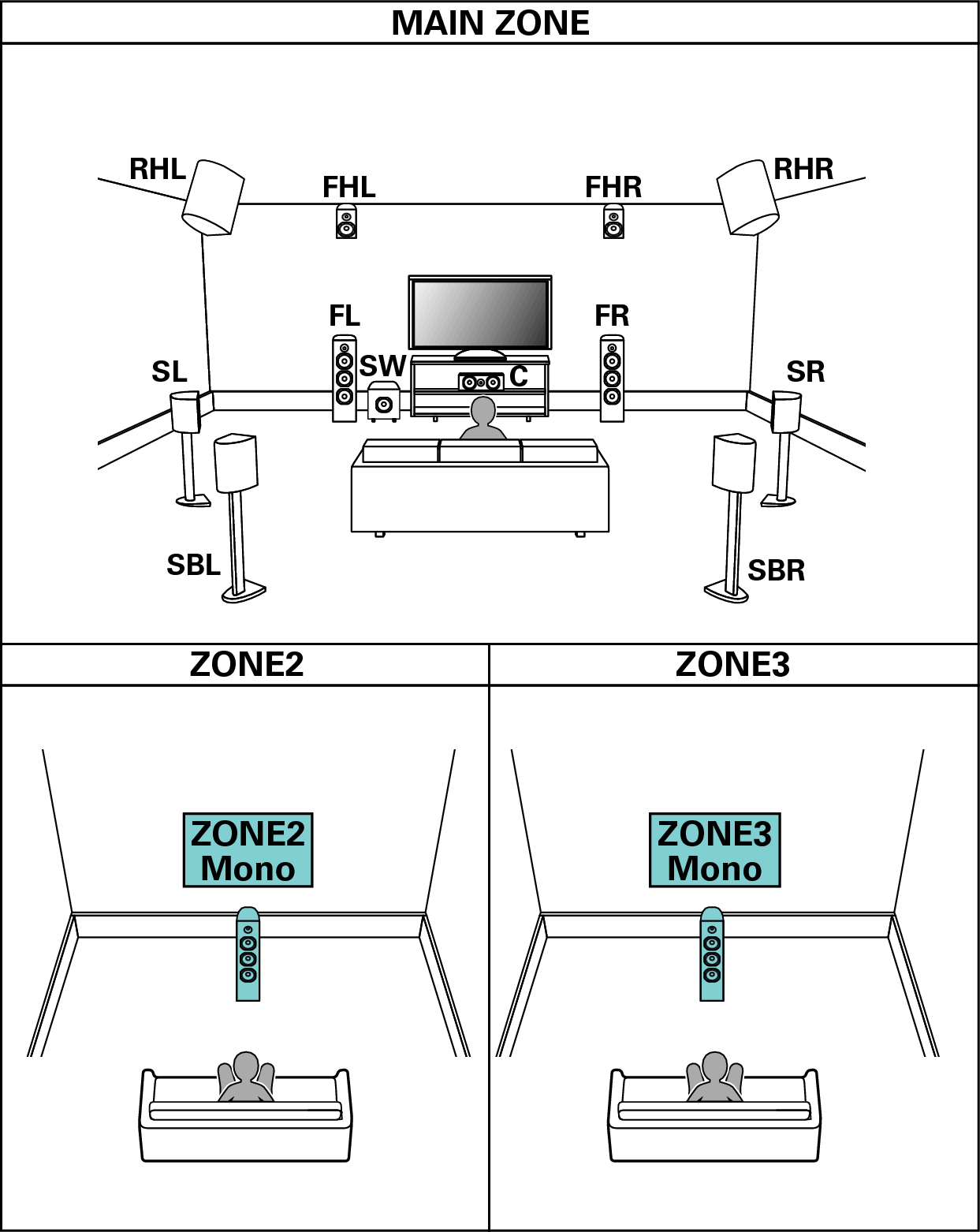

11.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3)
This type of configuration plays back 11.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3.
![Pict SP Layout 11.1 1ch](fig/Pict SP Layout 11.1 1ch_DRDZILzegxtsgd.png)
![Conne SP 11.1 1ch A110E3](fig/Conne SP 11.1 1ch A110E3_DRDZILcoexaogp.png)
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker to be connected from “Height” in the menu. link
