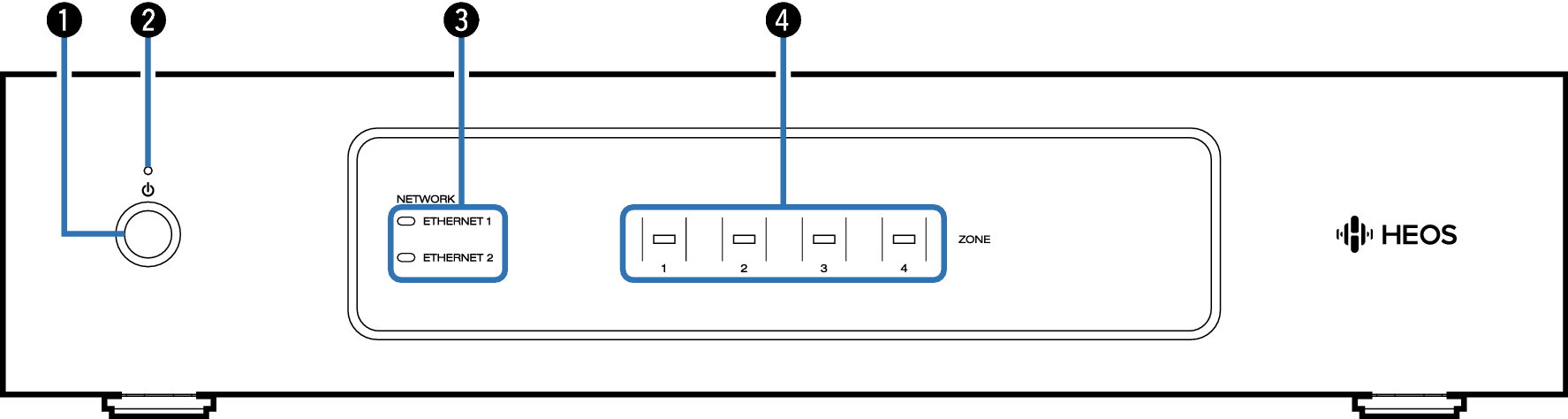

Front panel

Name Drive Front 1

Power operation button ( Power Button )

Used to enter Quick Start Mode or Deep Standby and return from them.

Power indicator

This is lit as follows according to the power status: link

White: Power on

Off: Deep Standby

Red: When all Zone enter Quick Start Mode

Network indicators

Flashes green to indicate network activity. link

Zone indicators

Please refer to the “Status indicator Table”. link
