Adjusting the Volume in ZONE2/ZONE3

Adjusting the volume

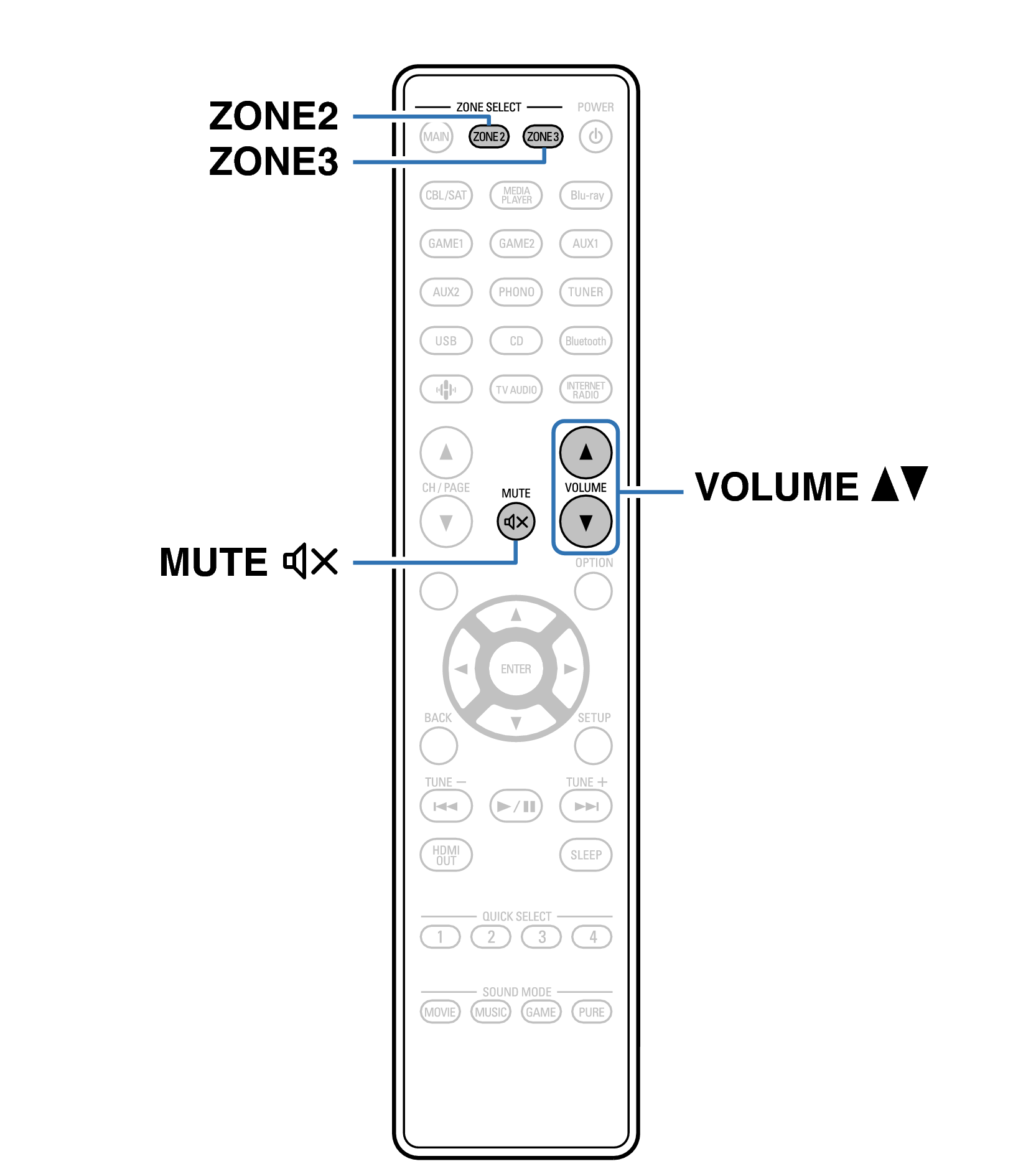

Press ZONE2 or ZONE3 to select the operating zone with the remote control.

The button for the selected zone is lit.

Use VOLUME kurosankaku

to adjust the volume.

At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. link

Turn MASTER VOLUME after pressing ZONE2 SOURCE or ZONE3 SOURCE on the main unit to adjust the volume.

Turning off the sound temporarily (Muting)

Press ZONE2 or ZONE3 to select the operating zone with the remote control.

The button for the selected zone is lit.

Press MUTE Silent

The sound is reduced to the level set at “Mute Level” in the menu. link

To cancel mute, either adjust the sound volume or press MUTE Silent again.
