Remote control unit

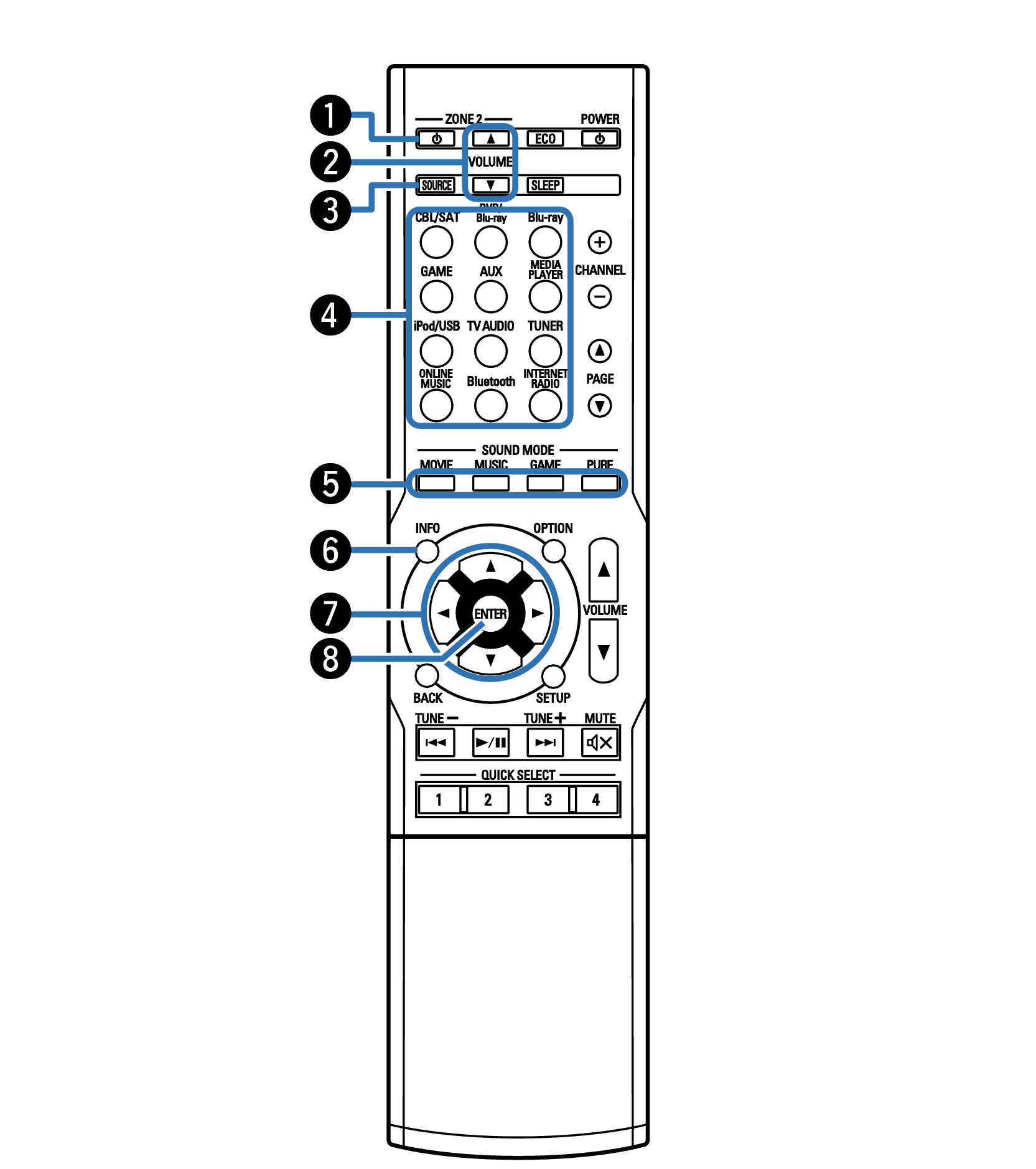

Name RC1189

ZONE2 ON/OFF button (ZONE2 Power Button )

This turns the power of ZONE2 (separate room) on/off. link

ZONE2 VOLUME buttons ( kurosankaku Sankaku-Reverse )

This setting adjusts the volume level for ZONE2. link

ZONE2 SOURCE button

This selects the input source for ZONE2. link

Input source select buttons

These selects the input source. link

SOUND MODE buttons

These select the sound mode. link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items.

ENTER button

This determines the selection.

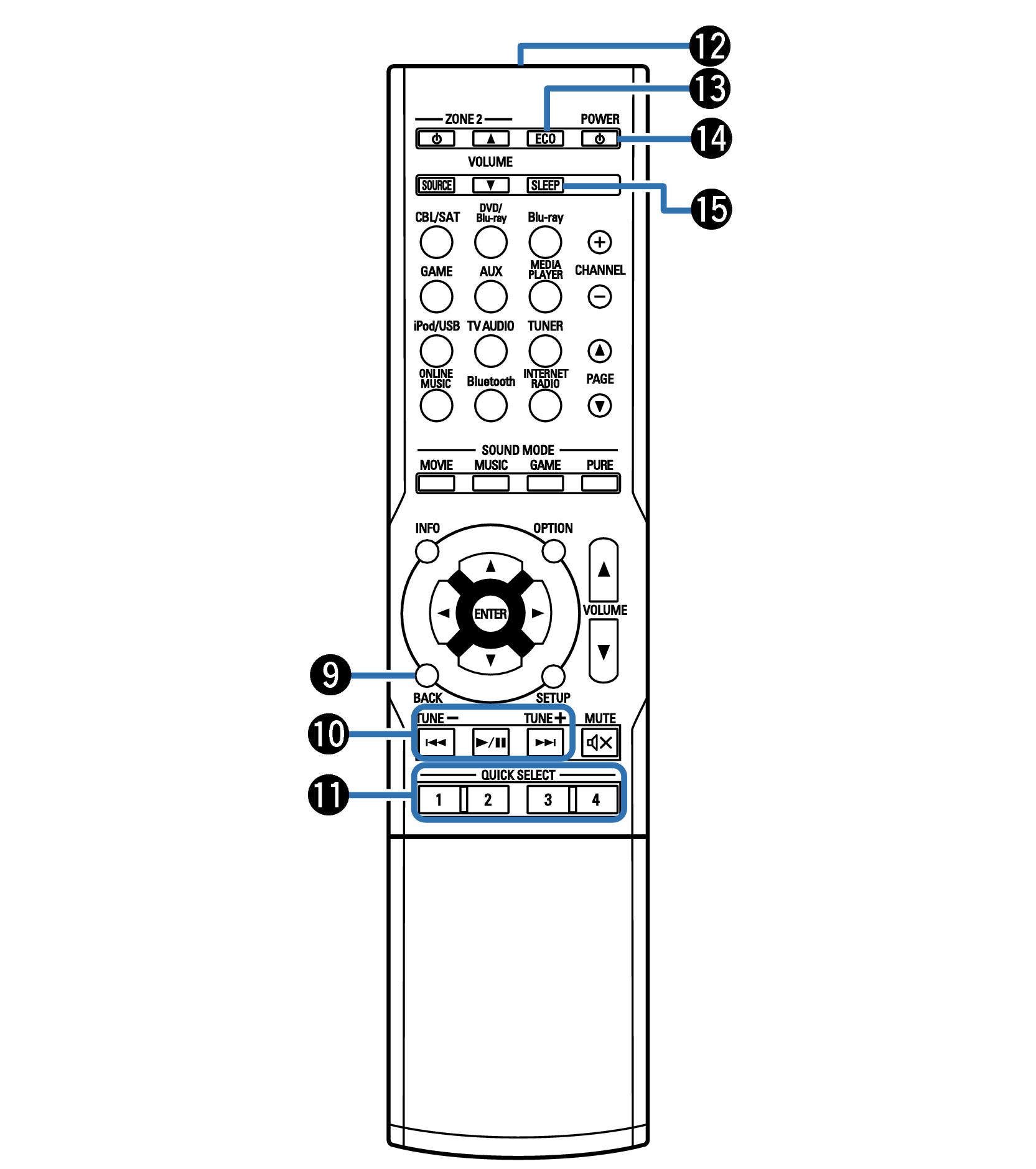

Name RC1189a

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

ECO Mode button

This switches to ECO Mode. link

POWER button ( Power Button )

This turns the power on/off. link

SLEEP button

This sets the sleep timer. link

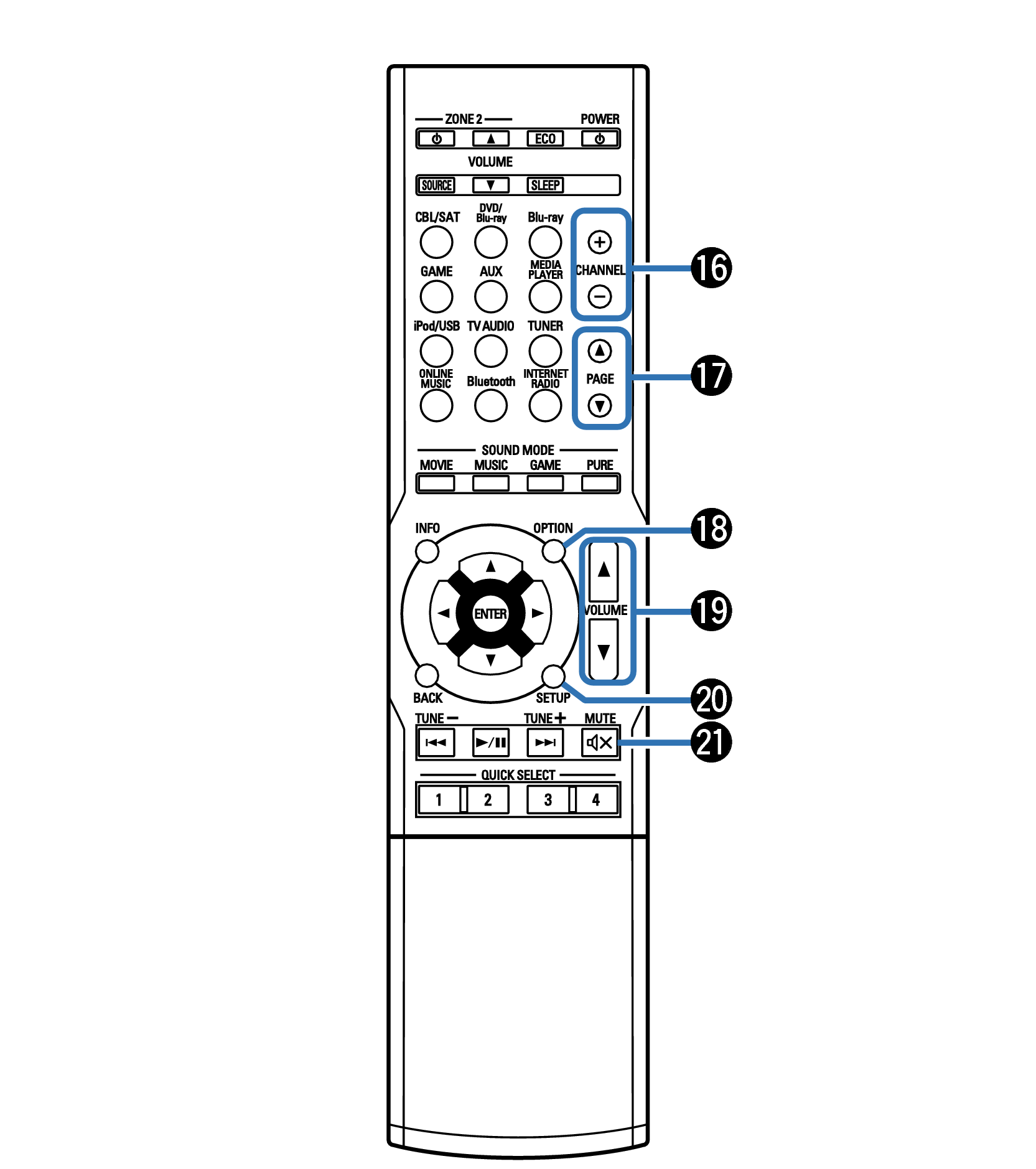

Name RC1189b

Channel select buttons (CHANNEL +, –)

These select preset broadcast stations. link

Page search buttons (PAGE  kurosankaku Sankaku-Reverse )

These switch pages.

OPTION button

This displays the option menu on the TV screen.

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjusts the volume level. link

SETUP button

This displays the menu on the TV screen. link

MUTE button ( Silent )

This mutes the output audio. link
