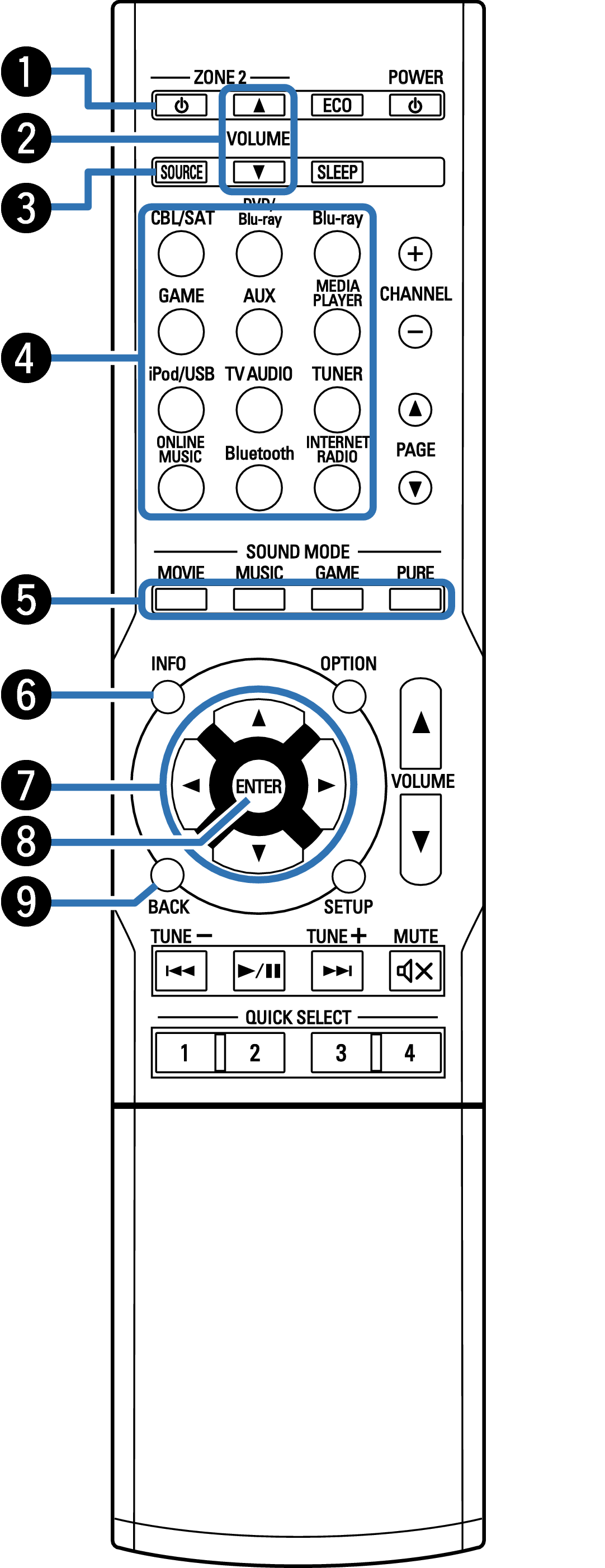

Remote control unit
ZONE2 ON/OFF button (ZONE2 )
This turns the power of ZONE2 (separate room) on/off. link
ZONE2 VOLUME buttons ( )
This setting adjusts the volume level for ZONE2. link
ZONE2 SOURCE button
This selects the input source for ZONE2. link
Input source select buttons
SOUND MODE buttons
These select the sound mode. link
MOVIE button
MUSIC button
GAME button
PURE button
Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons ( )
These select items. link
ENTER button
This determines the selection. link
BACK button
This returns to the previous screen. link
System buttons
These perform playback related operations. link

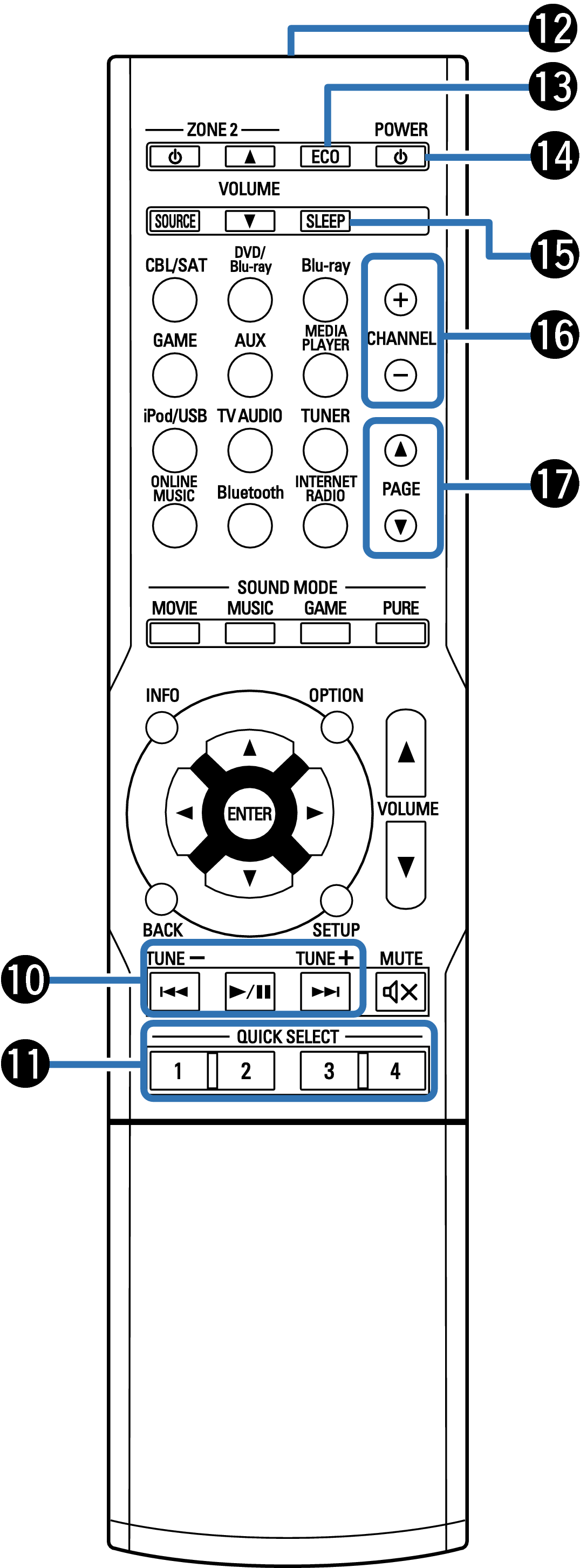

Skip buttons ( , )
Play/pause button ( / )
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. link
QUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
Remote control signal transmitter
This transmits signals from the remote control unit. link
ECO Mode button
This switches to ECO mode. link
POWER button ( )
SLEEP button
This sets the sleep timer. link
Channel select buttons (CHANNEL +, –)
These select preset broadcast stations. link
Page select buttons (PAGE )
These switch pages. link
