Listening to DAB broadcasts

Press TUNER to switch the input source to “Tuner”.

The option menu screen is displayed.

Use shirosankaku shirosankaku-Reverse to select “FM/DAB”, then press ENTER.

This displays the reception band input screen.

Use White-Arrow-Left White-Arrow-Right to select “DAB”, then press ENTER.


When listening to an FM broadcast.


When listening to a DAB broadcast.

Automatically scans for DAB stations when DAB is selected for the first time after purchase.

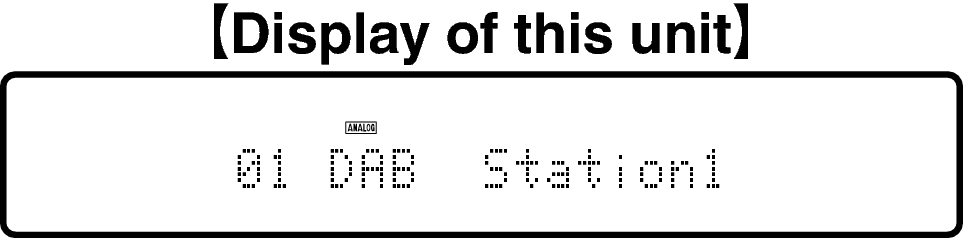

Bracket Open TV screen Bracket Close

Disp 01 DAB Station
Press TUNE + or TUNE – to select the station you want listen to.

Operation buttons


TUNE +, –

Selects the radio station (up/down)

CH/PAGE  kurosankaku   Sankaku-Reverse

Selects preset radio stations

shirosankaku shirosankaku-Reverse

Selects the radio station (up/down)

White-Arrow-Left White-Arrow-Right

Selects preset radio stations

Operations accessible through the option menu
