Relationship between video signals and monitor output

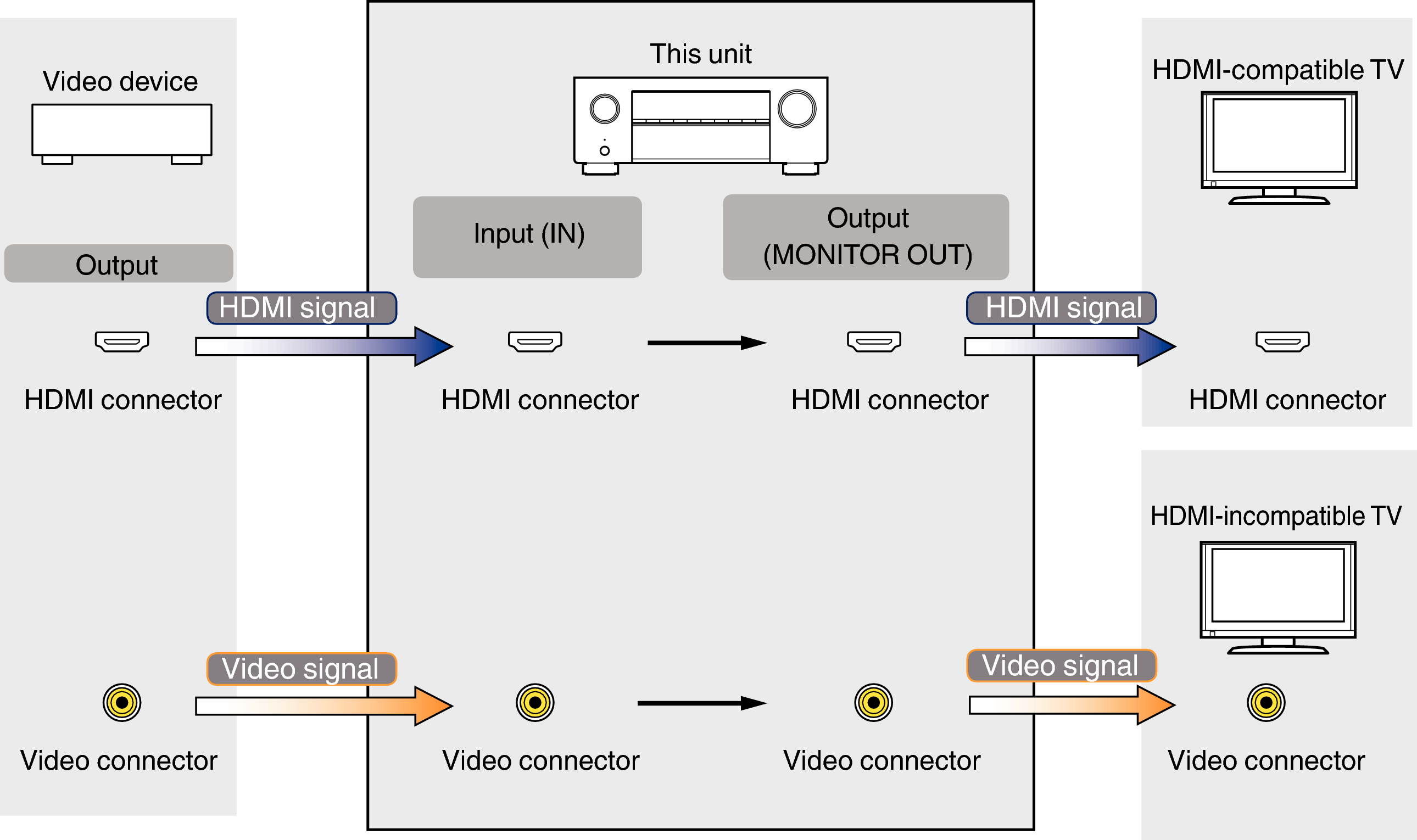

Pict VideoSignal S76

When “HDMI Upscaler” in the menu is set to “On”, this unit upscales the input HDMI video signal and then outputs it to the TV.link

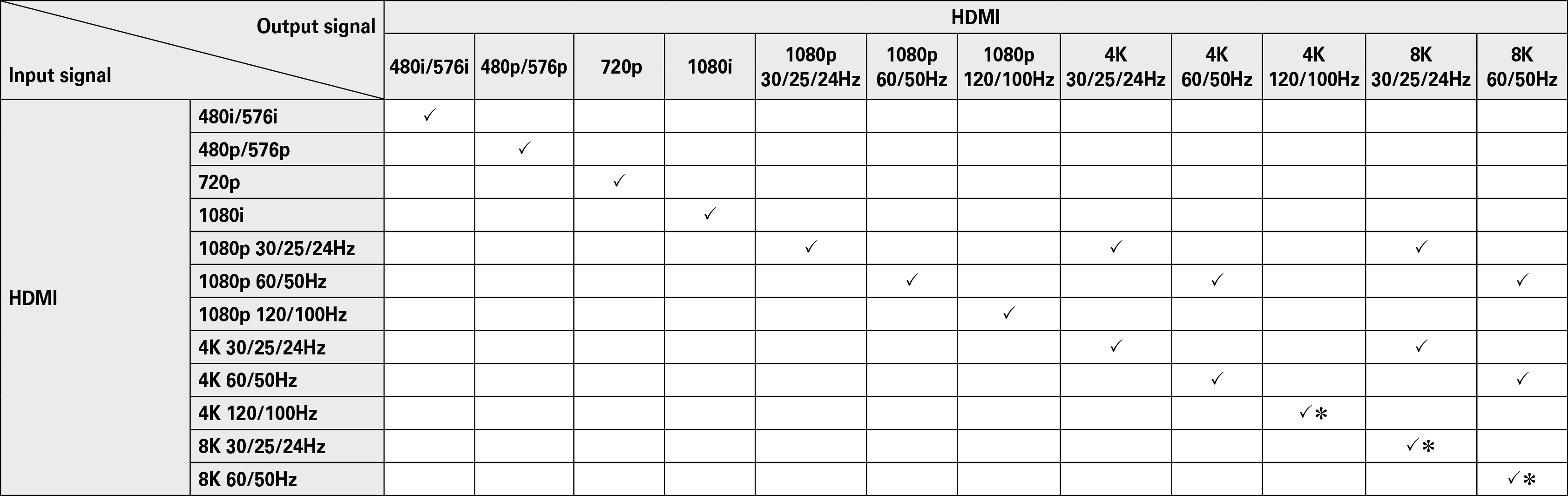

Pict VideoTable S76

Supported by the HDMI 4, 5 and 6 connectors.
