Types of input signals, and corresponding sound modes

Kuromaru-Large This indicates the default sound mode.

Circle-Large This indicates the selectable sound mode.

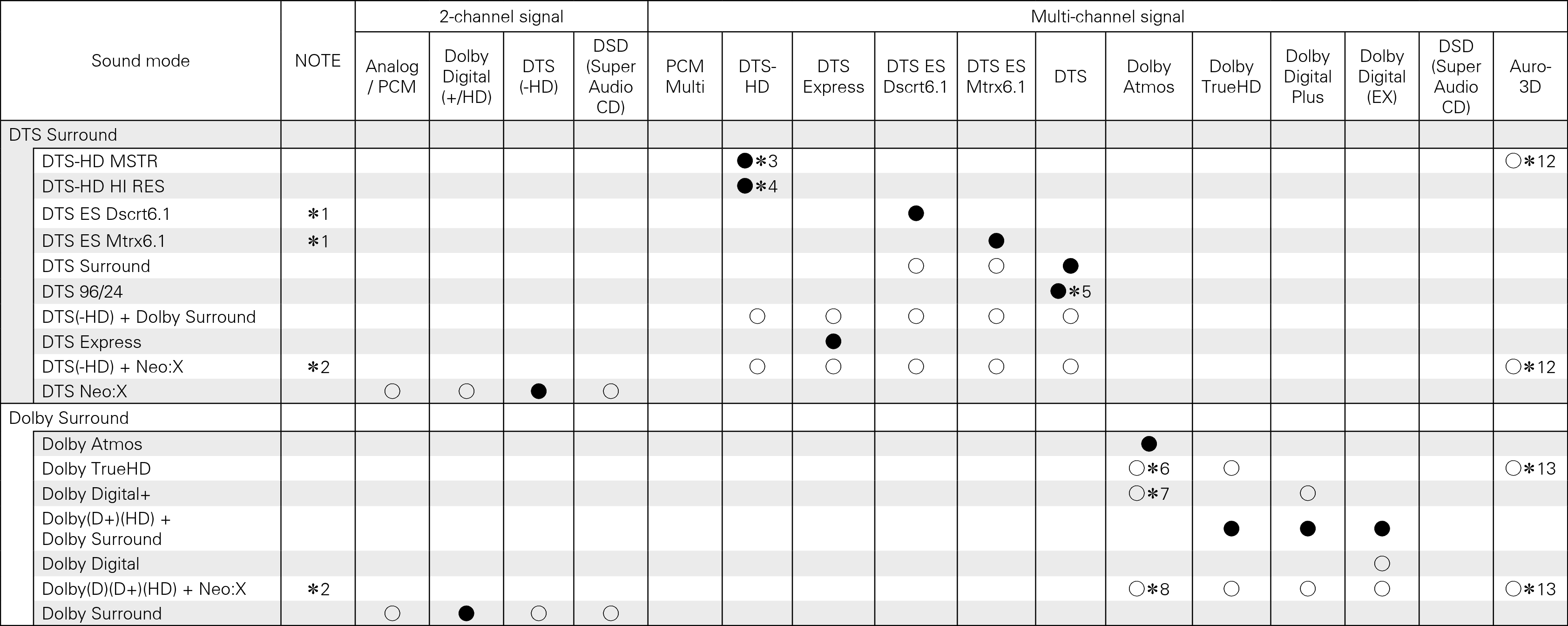

T of input signals & C sound modes-1 AVRX5200WE3

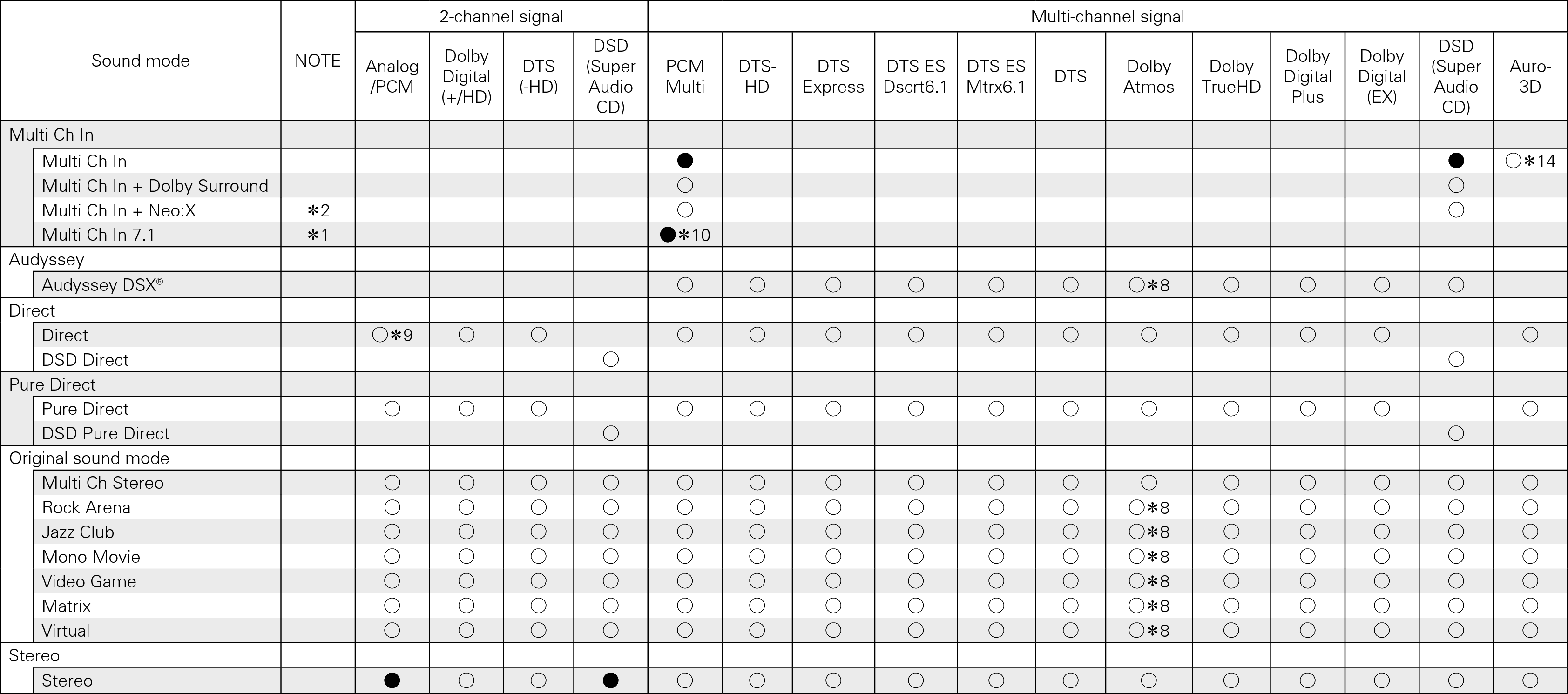

T of input signals & C sound modes-2 AVRX5200WE3

Upgrade (Auro-3D)

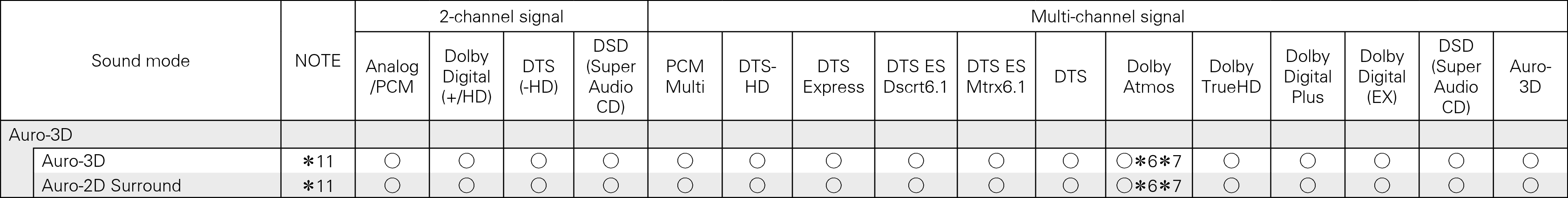

T input signals & C sound X5200W_Auro3D

This item can be selected when surround back speakers are used.

The “Cinema” mode, “Music” mode or “Game” mode can be selected. This item can be selected when using any of the surround back, front height or front wide speaker.

This item can be selected when the input signal is DTS-HD Master Audio.

This item can be selected when the input signal is DTS-HD Hi Resolution.

This item can be selected when the input signal is DTS 96/24.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.

This can be selected when the Dolby Atmos signal contains the Dolby Digital Plus signal.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD or Dolby Digital Plus signal.

The default sound mode for the AirPlay playback is “Direct”.

This item can be selected when the input signals contain surround back signals.

This item cannot be selected if the sampling frequency of the input signal is 32 kHz.

This item can be selected if the Auro-3D signal contains DTS-HD Master Audio.

This item can be selected if the Auro-3D signal contains Dolby TrueHD.

This item can be selected if the Auro-3D signal contains Multi Channel PCM.
