Sound modes and channel output

Circle-Large This indicates the audio output channels or surround parameters that can be set.

Double Ciecle This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”link.

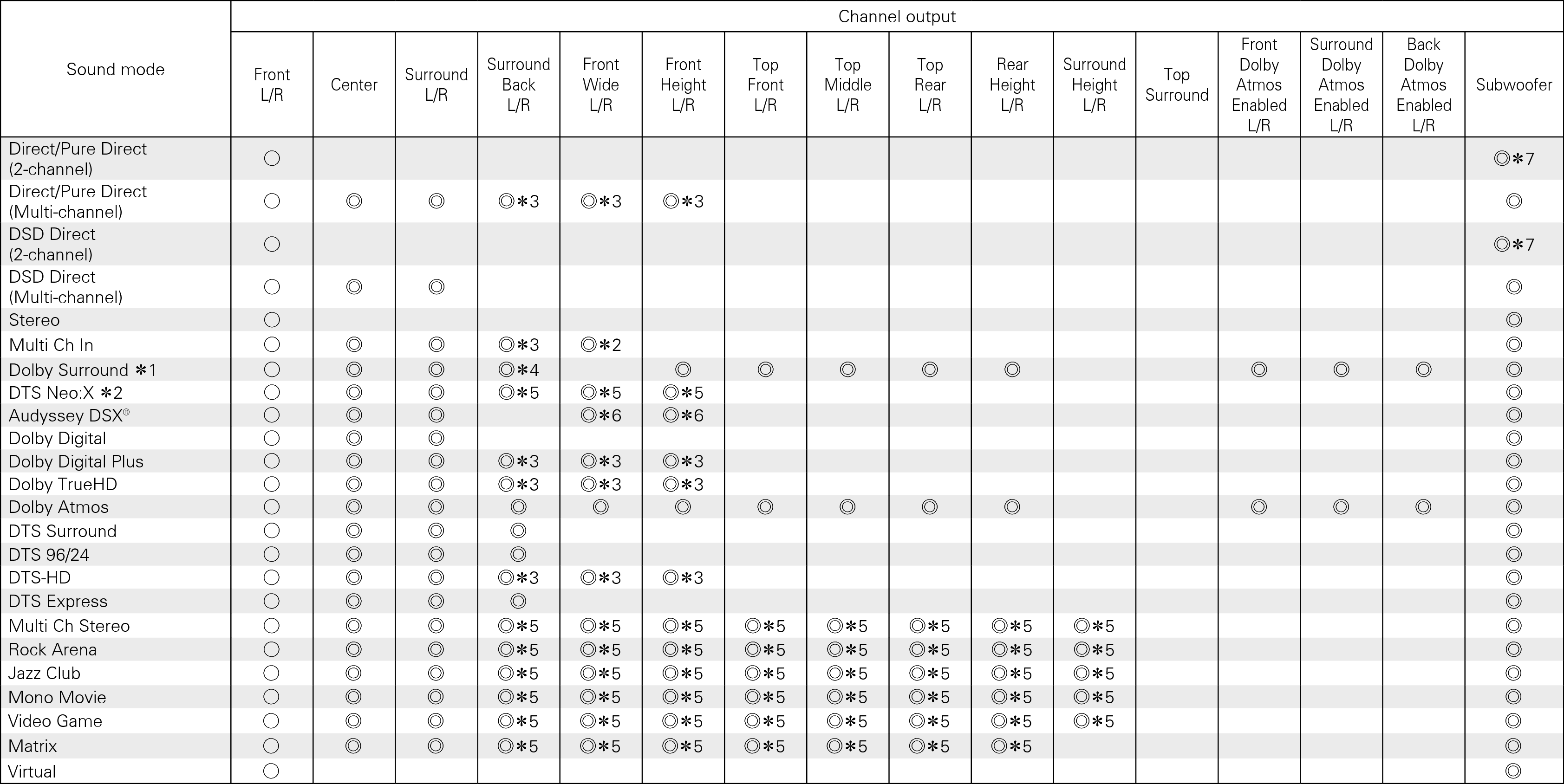

S modes & C output AVR4100WE3

The applicable sound mode includes “Dolby Surround” and sound modes that have “+Dolby Surround” in the sound mode name.

The applicable sound mode includes “DTS Neo:X” and sound modes that have “+Neo:X” in the sound mode name.

A signal for each channel contained in an input signal is output as audio.

Audio is not output when “Speaker Config.” - “Surr. Back” in the menu is set to “1 spkr”. link

Audio is output from the speakers specified in the “Surround Parameter” – “Speaker Select” settings. link

Audio is output from the speakers specified in the “Audyssey DSX®” settings. link

Audio is output when “Subwoofer Mode” in the menu is set to “LFE+Main”. link

Upgrade (Auro-3D)

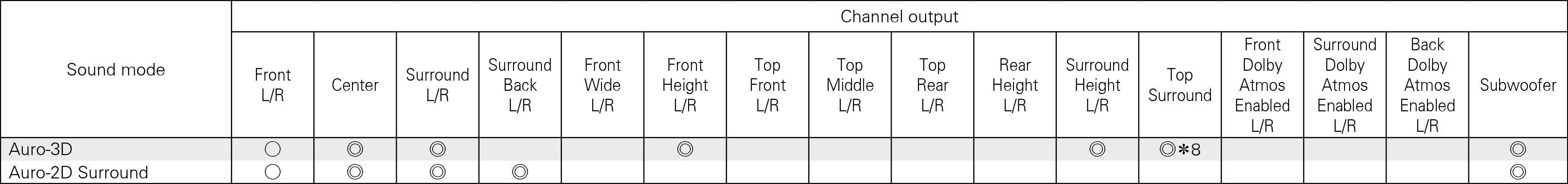

S modes & C output X5200W_Auro3D

This is output if an Auro-3D signal is input and the input signal contains Top Surround.
