Remote control unit

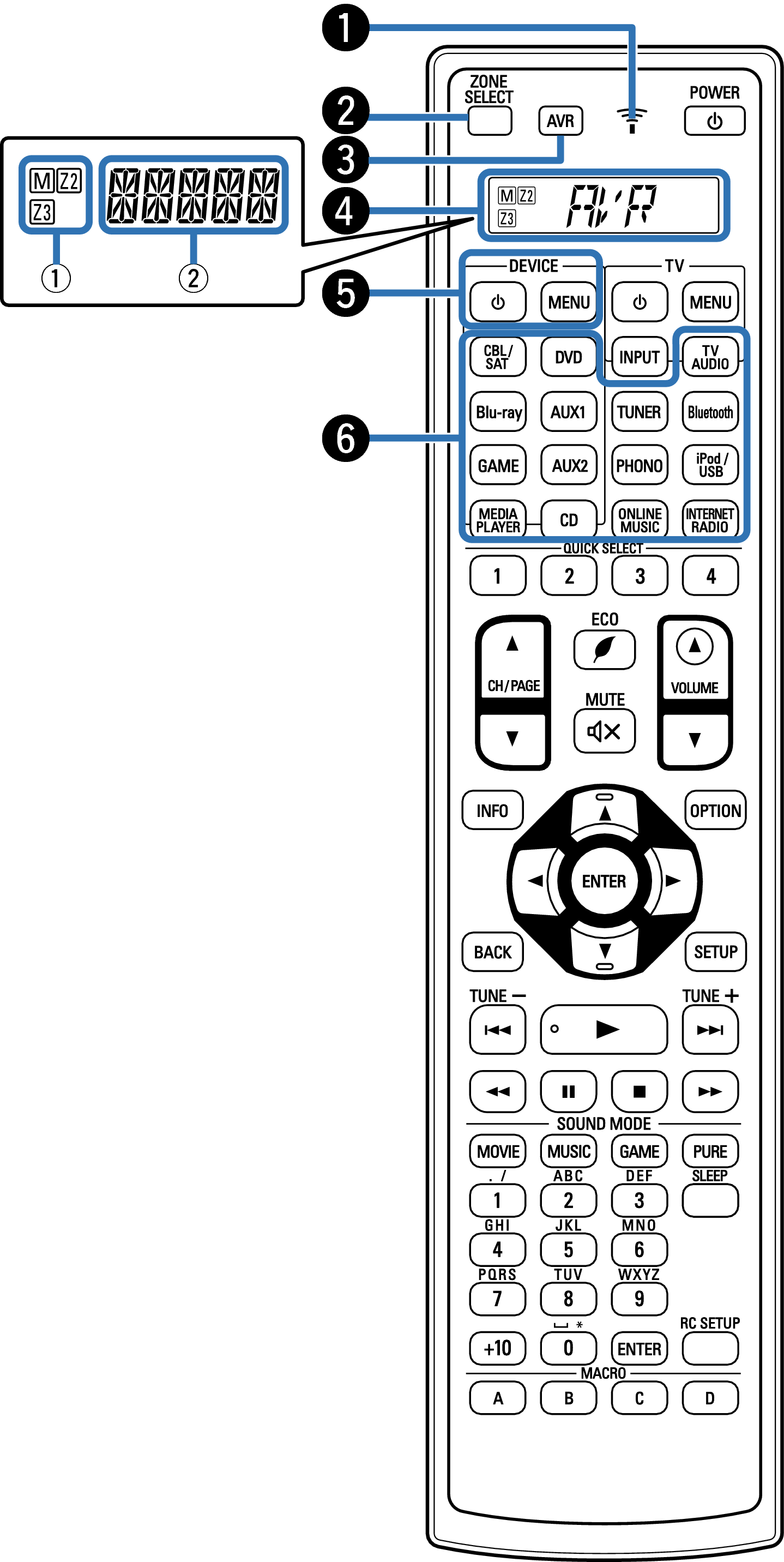

Name RC1194

LED_RC indicator

This is lit when signals are sent from the remote control unit.

Zone select button (ZONE SELECT)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link

AVR operation button

When preset codes are registered to the remote control unit, press this button and then operate the menu on the unit.


Zone select indicators
Information indicator

This displays “AVR” when operating this unit.

This displays the input source name when operating an external device.

This displays “TV” when operating TV.

This displays details about the setting on the remote control unit.

Device operation buttons (DEVICE  Power Button  / DEVICE MENU)

These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link

Input source select buttons

These select the input source. link, link

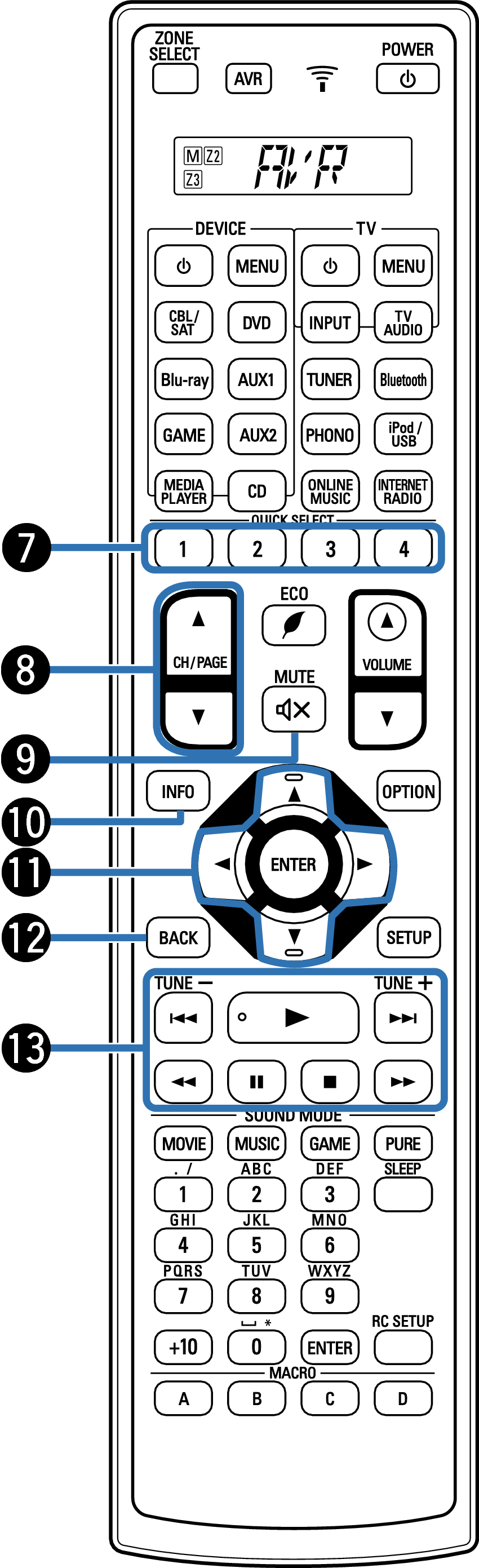

Name RC1194-2

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link, link

MUTE button ( Silent )

This mutes the output audio. link, link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items. link

BACK button

This returns to the previous screen. link

System buttons

These perform playback related operations. link

Skip buttons ( Skip-Left , Skip-Right )

Play button ( Triangle Right )

Search buttons ( Rewind , Forward )

Pause button ( Pause )

Stop button ( Square Black )

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

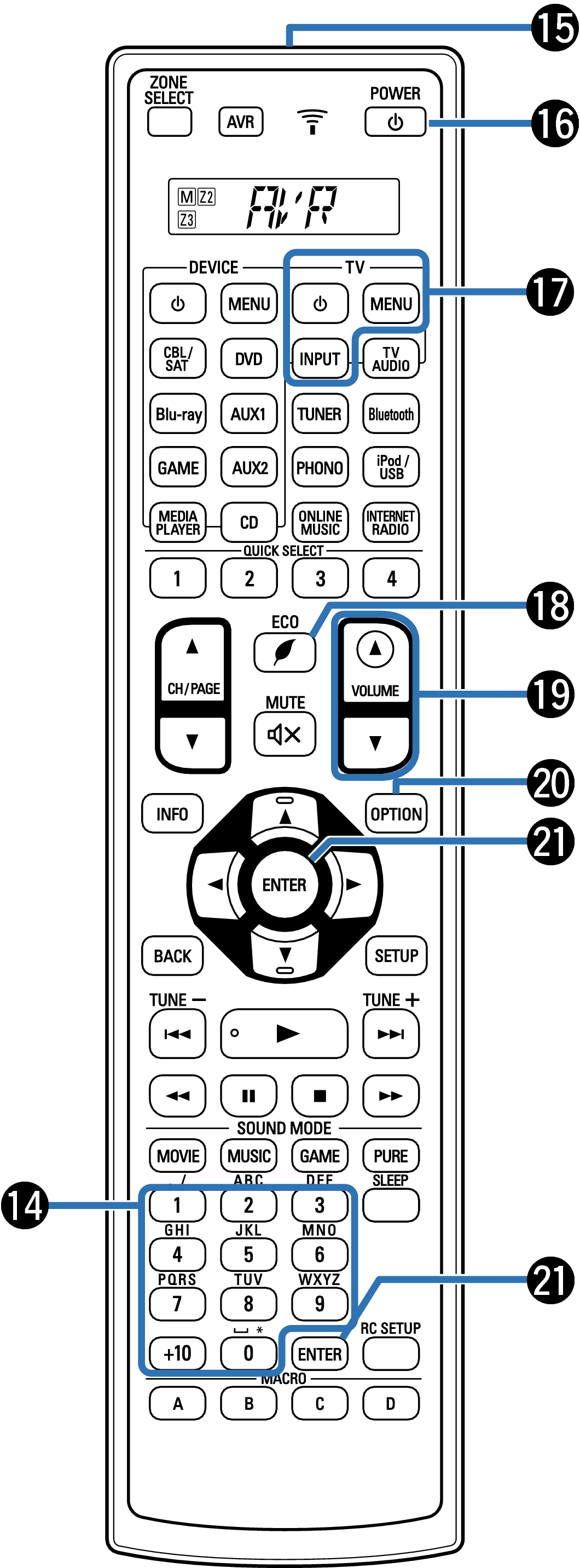

Name RC1194-3

Number / Character buttons

These enter letters or numbers into the unit. link, link

Remote control signal transmitter

This transmits signals from the remote control unit. link

POWER button ( Power Button )

This turns the power on/off. link, link

TV operation buttons (TV  Power Button  / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level. link, link

OPTION button

This displays the option menu on the TV screen. link

ENTER button

This determines the selection. link

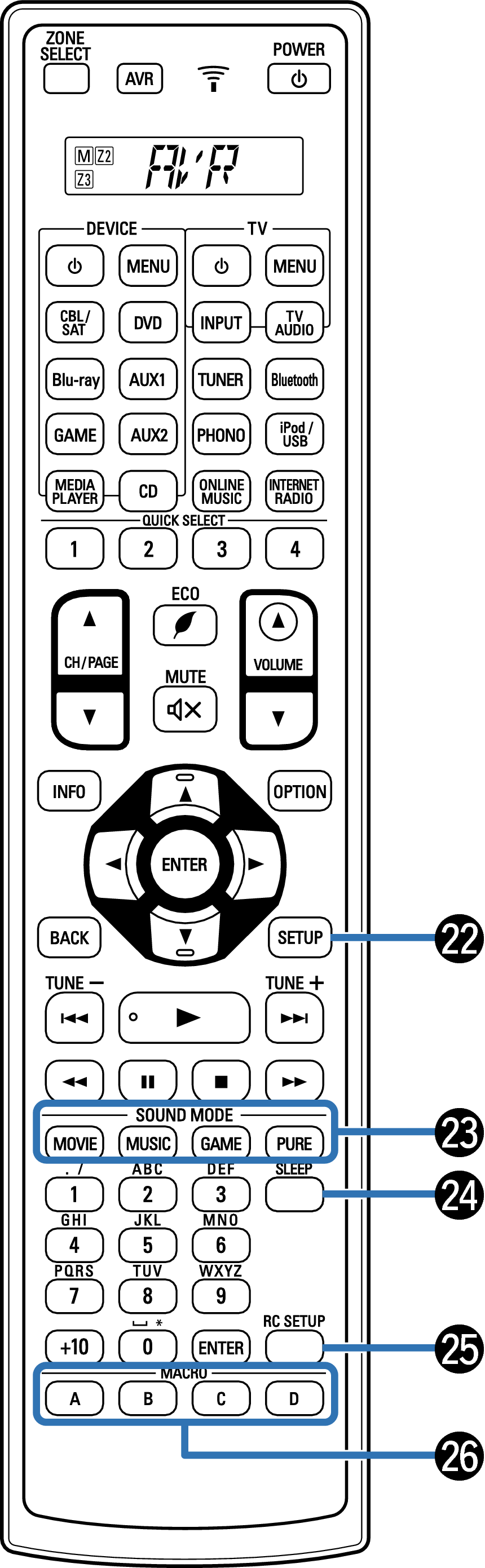

Name RC1194-4

SETUP button

This displays the menu on the TV screen. link

SOUND MODE buttons

These select the sound mode. link

MOVIE button

MUSIC button

GAME button

PURE button

SLEEP button

This sets the sleep timer. link

RC SETUP button

This used to set up the remote control unit. link - link

MACRO buttons (A – D)

These are used to turn on a TV or player, and consecutive series of operations can be registered to each button. link
