Remote control unit

The remote control provided with this unit can control a Denon integrated network amplifier.

Operating this unit

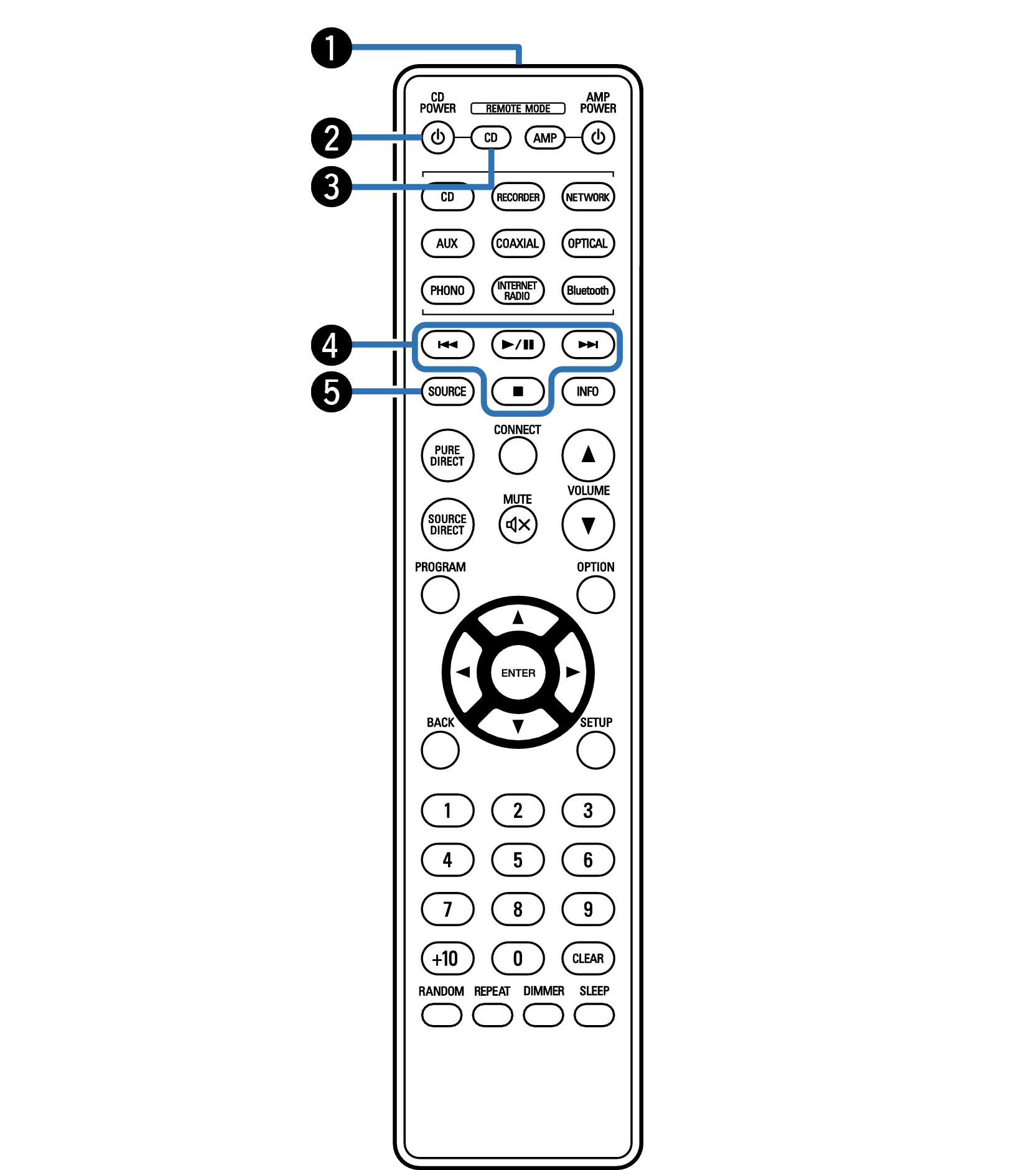

Name RC1246 1

To operate this unit, press REMOTE MODE CD button to switch the remote control operating mode to this unit.

Remote control signal transmitter

This transmits signals from the remote control unit. link

CD POWER Power Button button

This turns the power on/off (standby). link

Remote mode select button
(REMOTE MODE CD)

This switches the remote control operating mode to CD player.

System buttons

These perform playback related operations.

SOURCE button

Select the media to play back. link

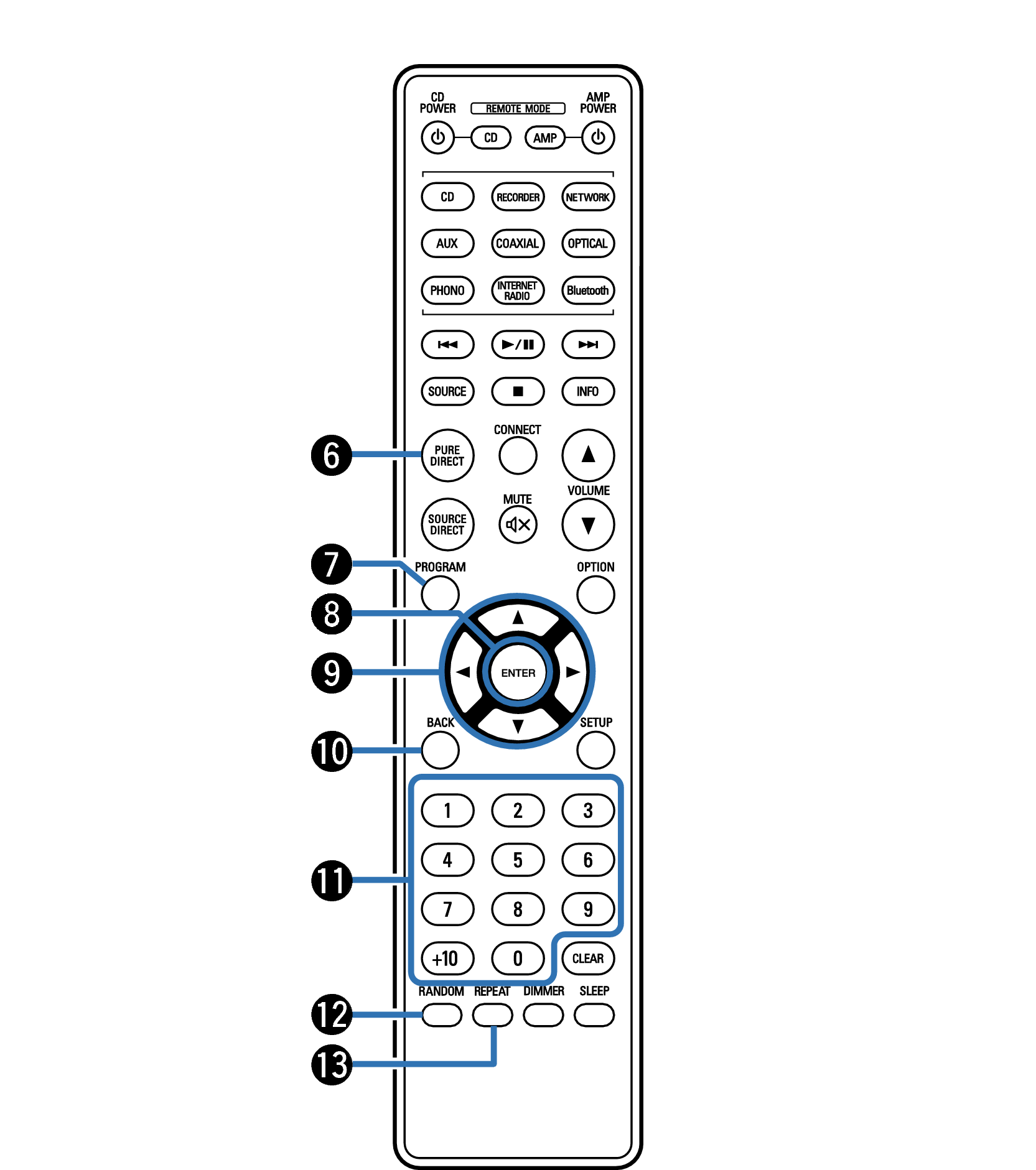

Name RC1246 2

PURE DIRECT button

Switches the pure direct mode. link

PROGRAM button

This sets program playback. link

ENTER button

This determines the selection.

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

BACK button

Returns to the previous item.

Number buttons (0 – 9, +10)

These enter numbers into the unit.

RANDOM button

Switches the random playback.

REPEAT button

Switches to the repeat playback.

Name RC1246 3

Information button (INFO)

This switches the track information shown in the display during playback.

OPTION button

Selects the playback range of the data CD. link

Selects the playback range of the USB flash drive. link

CLEAR button

This clears the program registration. link

DIMMER button

This switches the brightness of the display. link

Integrated network amplifier operations

Name RC1246 4

You can operate a Denon integrated network amplifier.

To operate a Denon integrated network amplifier, press the REMOTE MODE AMP button to switch the remote control to the integrated network amplifier operation mode.

Input source select buttons

System buttons

SOURCE button

CONNECT button

SOURCE DIRECT button

ENTER button

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

BACK button

Number buttons (0 – 9, +10)

RANDOM button

REPEAT button

Name RC1246 5

AMP POWER Power Button button

Remote mode select button (REMOTE MODE AMP)

Information button (INFO)

VOLUME buttons ( kurosankaku Sankaku-Reverse )

OPTION button

MUTE button ( Silent )

SETUP button

CLEAR button

SLEEP button

DIMMER button

The remote control may not operate some products.
