Sound bar

Top panel

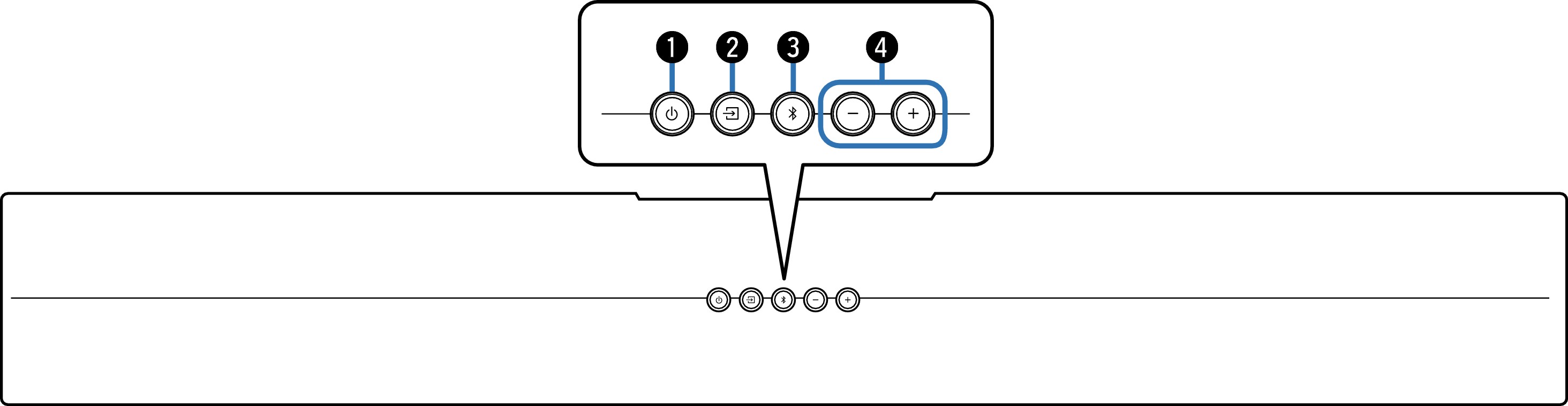

Name Top S216

Power operation button ( Icon Power )

Turns the sound bar power on/off (standby). link

Input source button ( Icon Source )

This selects the input source. link

Switches the input source each time the button is pressed.

Bluetooth button ( Icon Bluetooth )

Switches the input source to “Bluetooth”. link

Used to pair with Bluetooth devices. link

Volume buttons (+, –)

These adjusts the volume level. link

Front panel

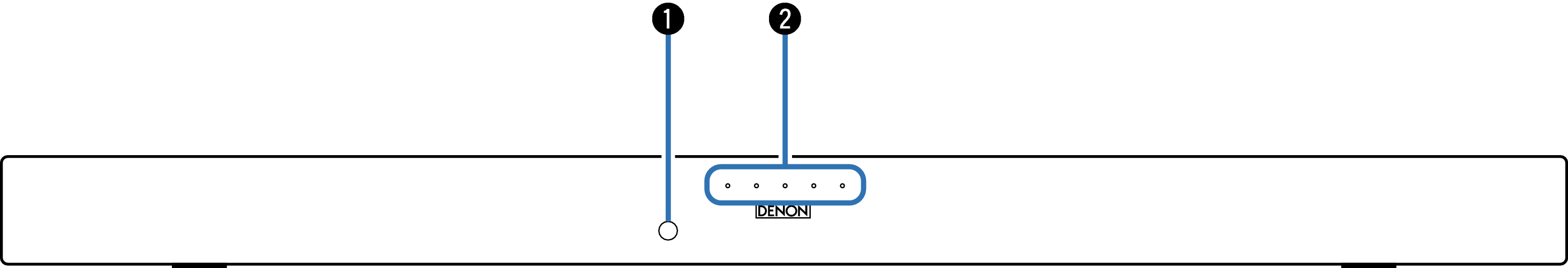

Name Front S216

Remote control sensor

This receives signals from the remote control unit. link

Status LED

The status, such as for the power, input source, or audio format, is displayed. link

Status LED

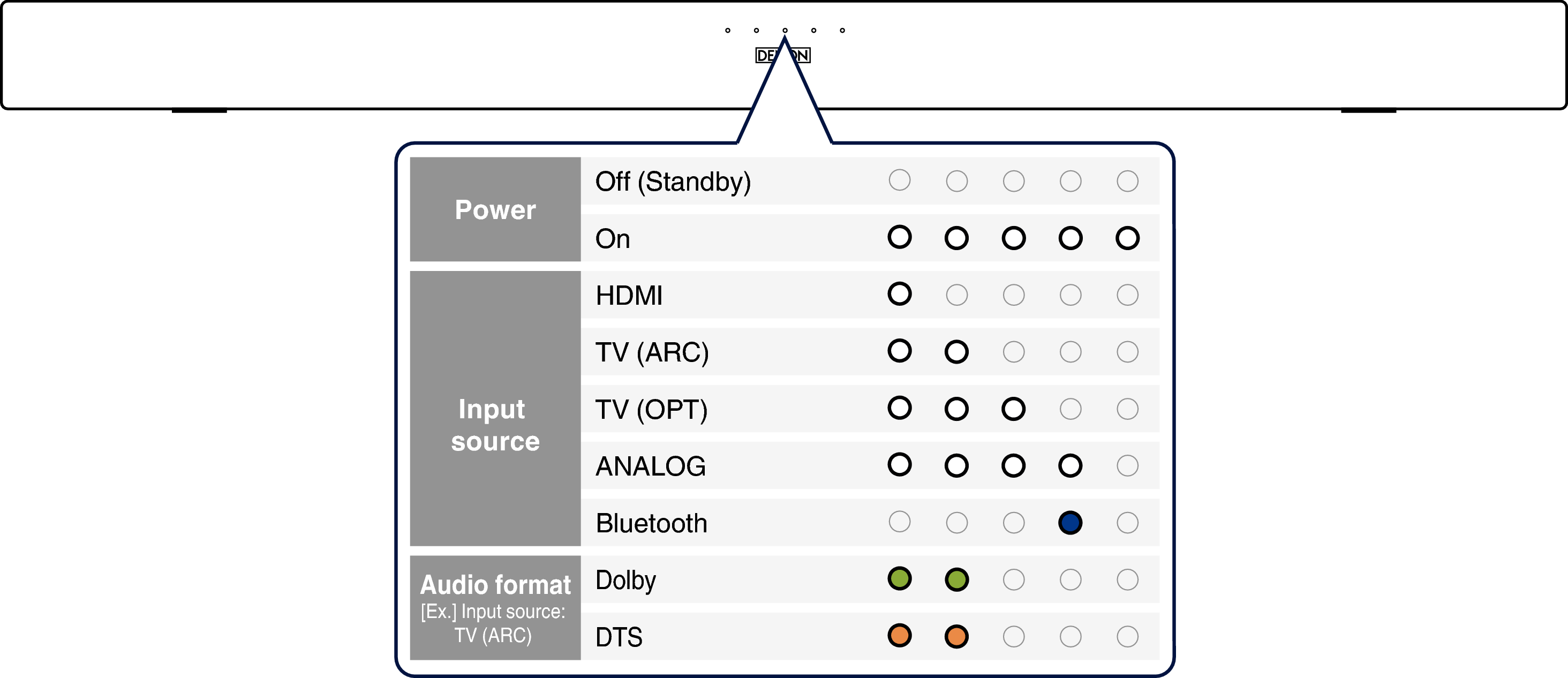

Name Status LED S216

Rear panel

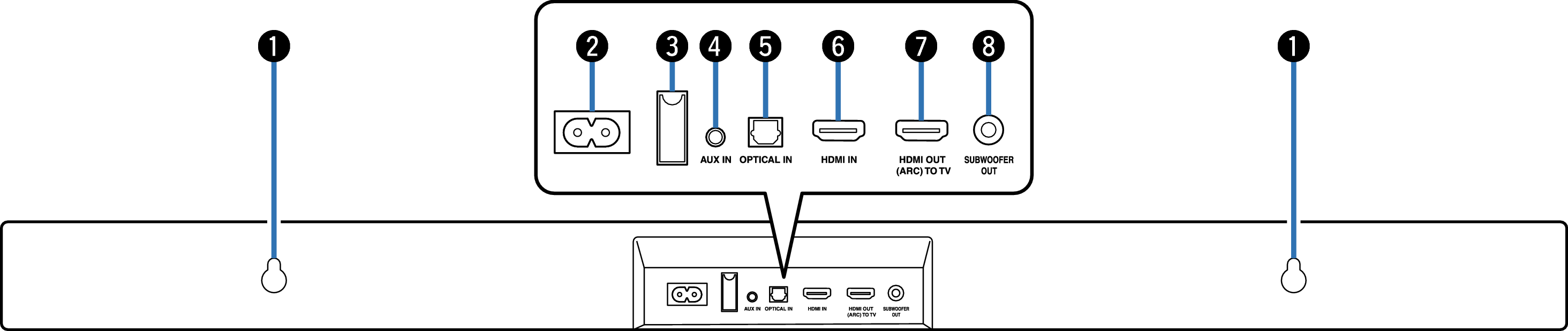

Name Rear S216

Wall hook hole

Used to mount the sound bar on a wall. link

AC inlet

Used to connect the power cord. link

USB port

Service terminal. This port does not support playback of music from USB flash drives.

AUX audio input connector (AUX IN)

Use a commercially available 3.5 mm stereo audio cable to connect an audio device. link

Optical digital input connector (OPTICAL IN)

Use the included optical digital cable to connect a TV with an optical digital connector. link

HDMI input connector (HDMI IN)

Use a commercially available HDMI cable to connect an HDMI compatible device. link

HDMI output connector (HDMI OUT (ARC) TO TV)

Use the included HDMI cable to connect an ARC function-compatible TV. link

Subwoofer output connector (SUBWOOFER OUT)

Use a commercially available subwoofer cable to connect a subwoofer with a built-in amplifier. link
