Setting the quick start mode

When set to Quick Start mode, the following two functions are enabled in standby mode.

Bluetooth standby function

The sound bar can be connected to from a Bluetooth device even when in standby. Connecting turns the sound bar on.

HDMI pass through function

HDMI signals received by the sound bar are output to the television, even when in standby mode.

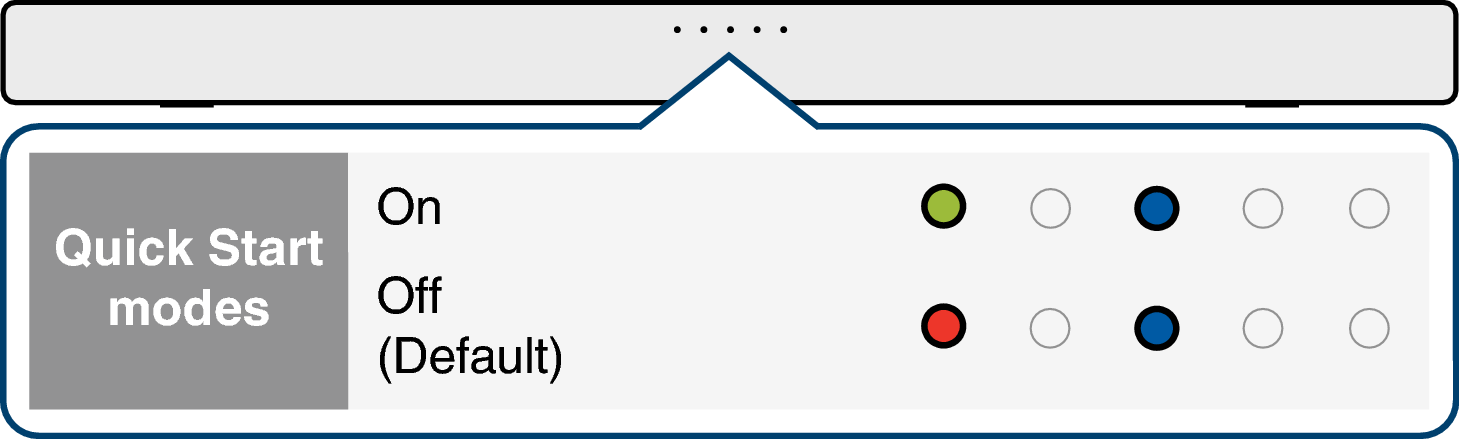

Press and hold TV for 5 seconds or more until the status display LEDs blink as indicated below.

LED S216E2-5

This unit consumes more power when the Quick Start modes is on.
