Sound bar

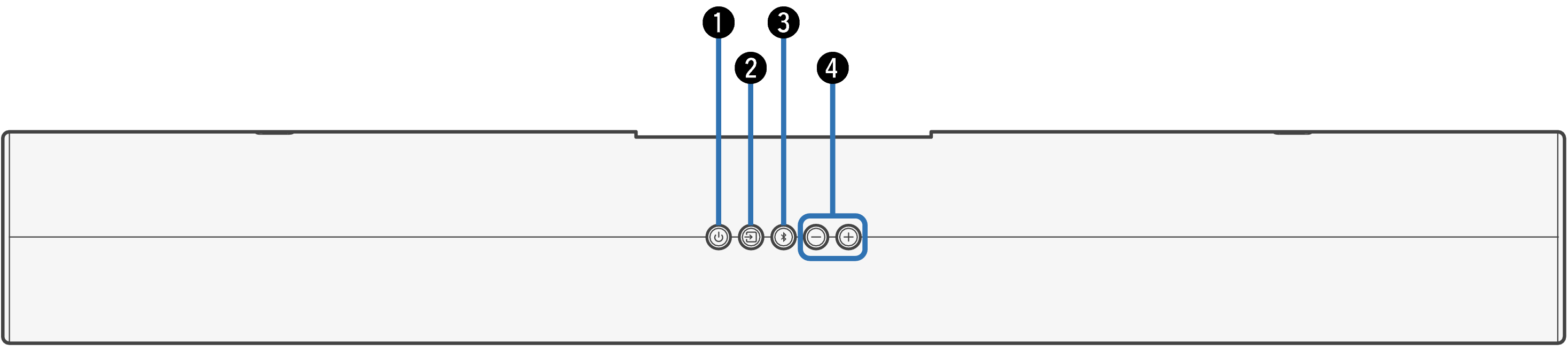

Top panel
Power operation button (
)
Turns the sound bar power on/off (standby). link
Input source button (
)
This selects the input source. link
Switches the input source each time the button is pressed.
Bluetooth button (
)
Switches the input source to “Bluetooth”. link
Used to pair with Bluetooth devices. link
Volume buttons (+, –)
These adjust the volume level. link

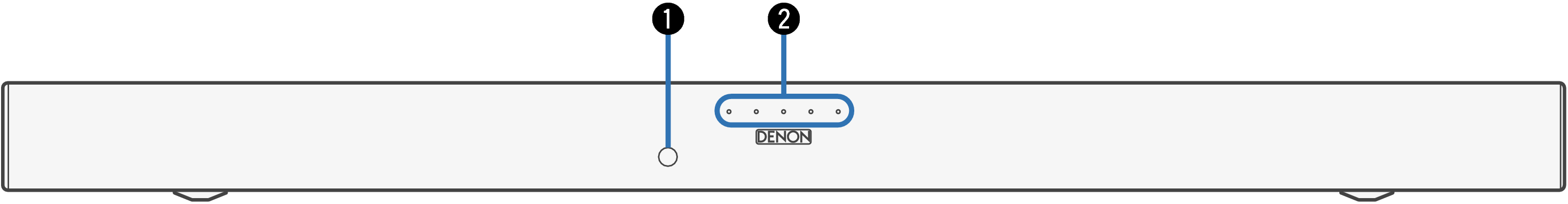

Front panel
Remote control sensor
This receives signals from the remote control unit. link
Status LED
The status, such as for the power, input source, audio format, or sound mode is displayed. link

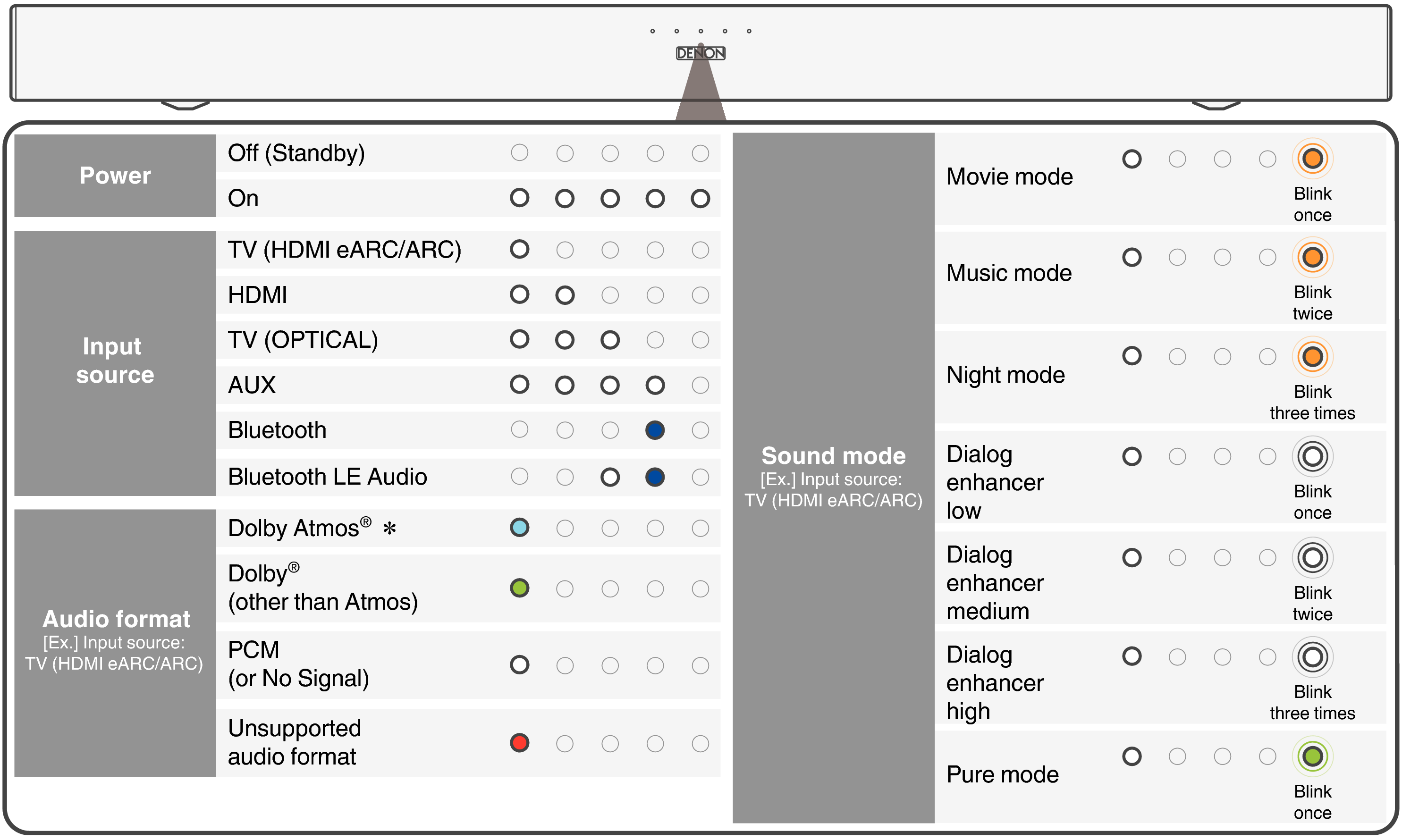

Status LED
When pure mode is set for the sound mode, Dolby Atmos playback is not supported on this unit. If a Dolby Atmos signal is input when in pure mode, the status LED displays the signal input as Dolby (other than Atmos).

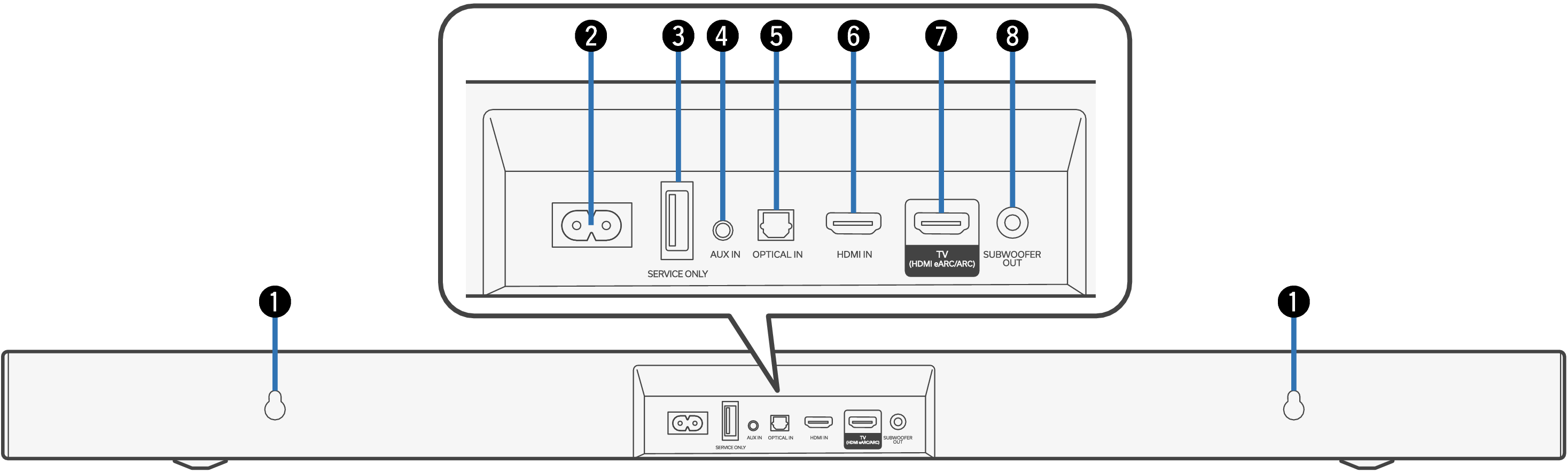

Rear panel
Wall hook hole
Used to mount the sound bar on a wall. link
AC inlet
Used to connect the power cord. link
USB port
Use when updating firmware or for customer service. See the Denon website for details about firmware updates.
NOTE
This port does not support playback of music from USB flash drives.
Analog audio input connector (AUX IN)
Use a commercially available 3.5 mm stereo audio cable to connect a TV with an AUX audio output connector. link
Optical digital input connector (OPTICAL IN)
Use a commercially available optical digital cable to connect to a TV with an optical digital connector. link
HDMI IN connector
Used to connect to the HDMI equipment with an HDMI cable. link
HDMI connector (TV (HDMI eARC/ARC))
Use the included HDMI cable to connect an eARC or ARC function-compatible TV. link
Subwoofer output connector (SUBWOOFER OUT)
Use a commercially available subwoofer cable to connect a subwoofer with a built-in amplifier. link
