Positioning the sound bar in front of a TV

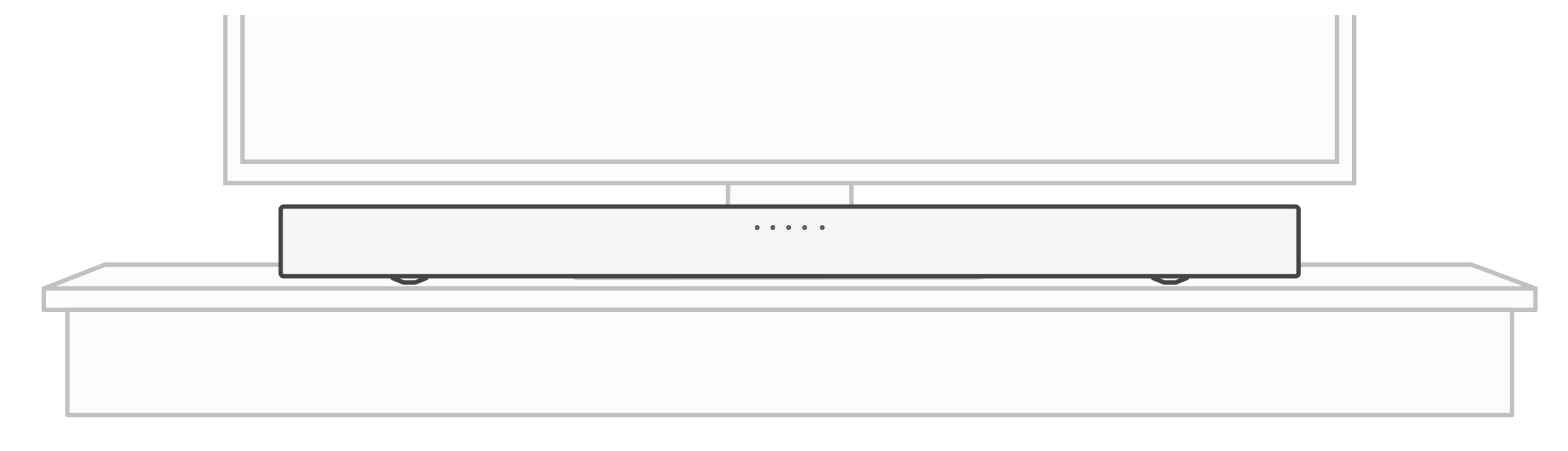

Position the sound bar in front of your TV, etc., on a flat surface.

Pict Place Bar1 S218
NOTE

When positioning the sound bar in front of your TV, make sure the sound bar does not obstruct the TV’s remote control light sensor, etc.
