Specifications
General
|
Operating temperature: |
5 °C - 35 °C |
|
Power supply: |
AC 100 - 240 V, 50/60 Hz |
|
Power consumption: |
40 W |
|
Power consumption in standby mode: |
1.7 W |
|
Power consumption in deep standby mode: |
0.5 W |
|
Max Analog Input: |
2 Vrms |
|
Sampling frequency: |
32 kHz, 44.1 kHz, 48 kHz |
|
Supported audio formats: |
Linear PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos |
Bluetooth section
|
Communications system: |
Bluetooth Version 5.3 |
|
Transmission power: |
Class 1 |
|
Maximum communication range: |
Approx. 10 m in line of sight∗ |
|
Used frequency range: |
2.4 GHz band |
|
Modulation scheme: |
FHSS (Frequency-Hopping Spread Spectrum) |
|
Supported profiles: |
A2DP Ver 1.4, AVRCP Ver 1.6 |
|
TMAP Ver 1.0, UMR |
|
|
Corresponding codec: |
SBC, LC3 |
|
Transmission range (A2DP): |
20 Hz – 20,000 Hz |
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software, etc.
For purposes of improvement, specifications and design are subject to change without notice.

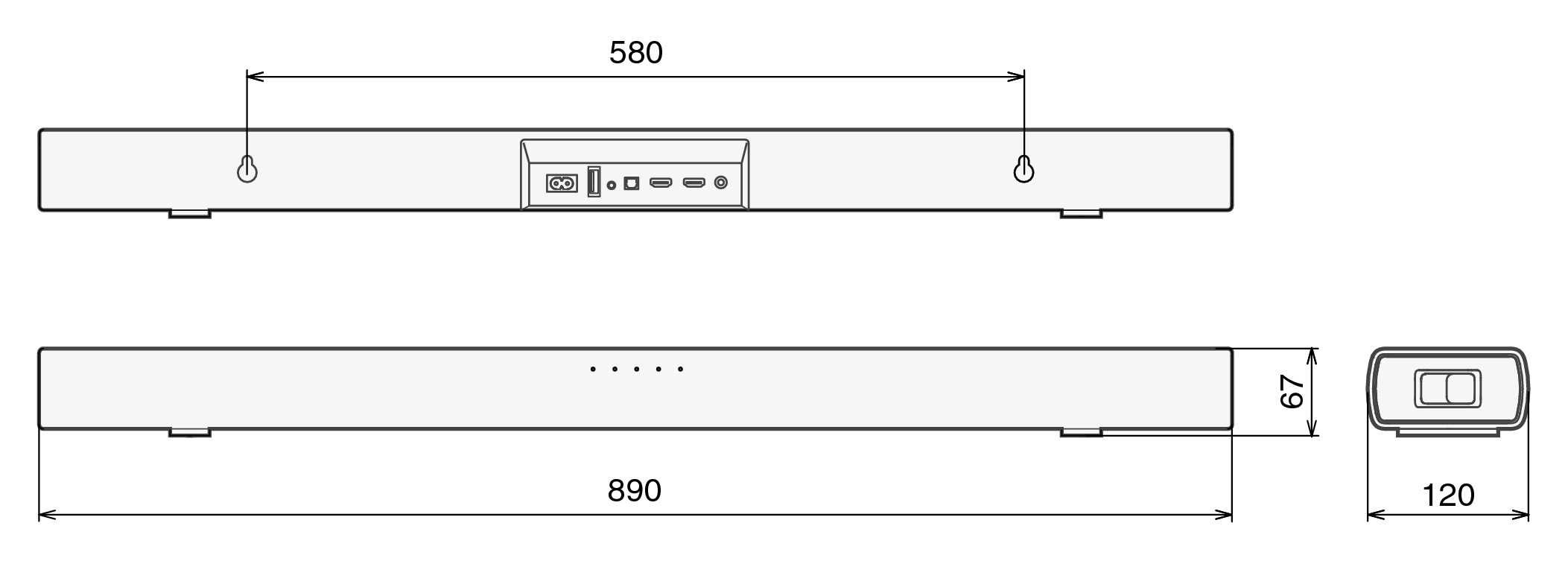

Dimensions (Unit: mm)
