Connections

NOTE

Do not plug in the power cord until all connections have been completed.

Do not bundle power cords with connection cables. Doing so can result in humming or noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

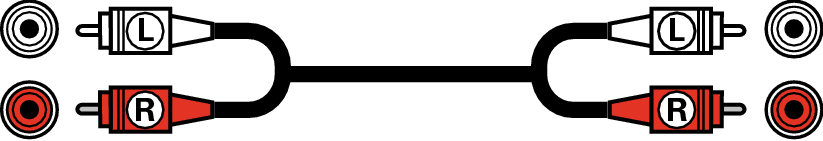

Audio cable (supplied)
IR control cable (supplied)
HDMI cable (not supplied)
Optical cable (not supplied)
Coaxial digital cable (not supplied)
USB cable (not supplied)
LAN cable (not supplied)
