Remote control unit

The remote control provided with this unit can control a Denon integrated amplifier.

Amplifier operationslink

Operating this unit

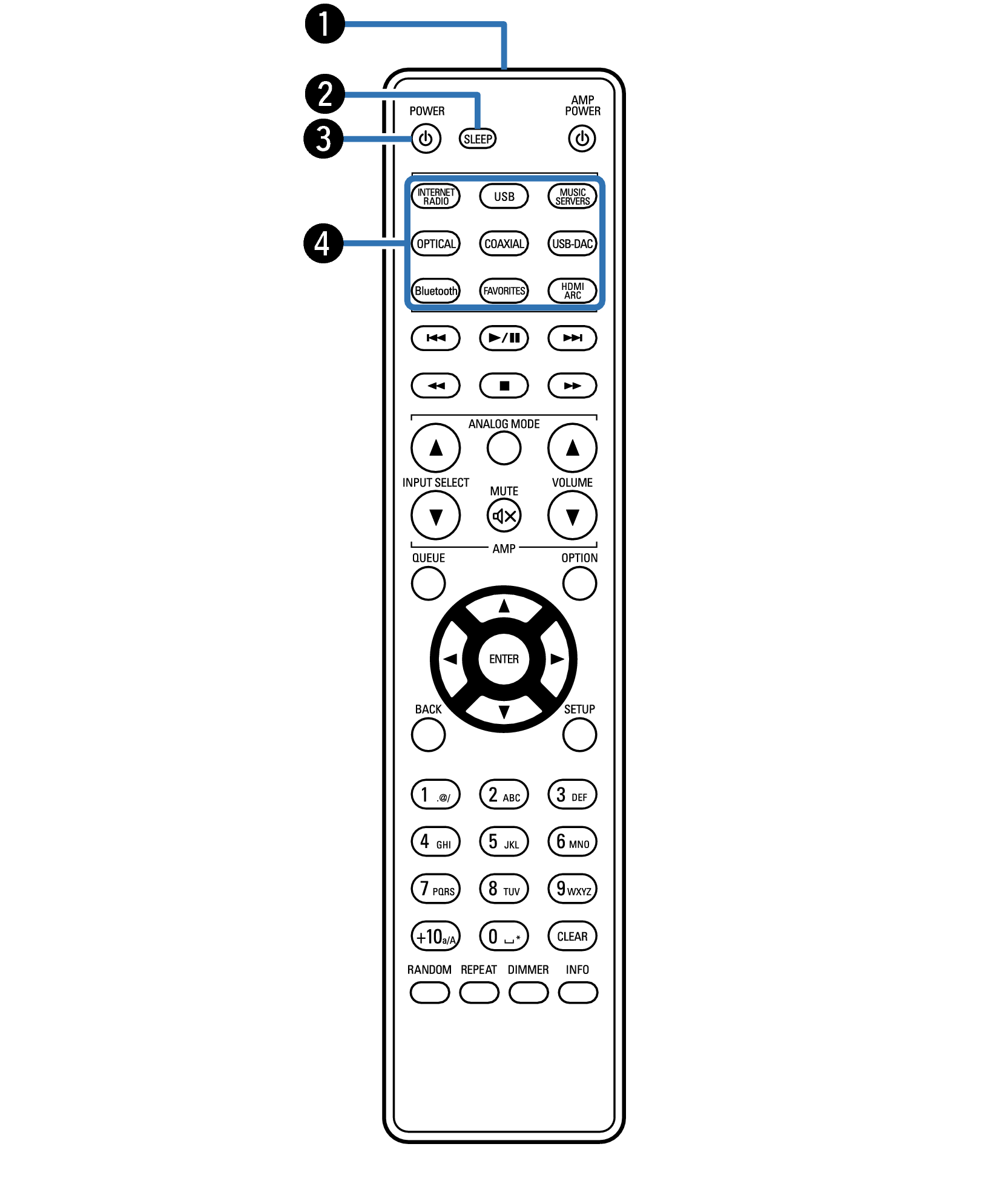

Remote control signal transmitter

This transmits signals from the remote control unit. link

SLEEP button

This sets the sleep timer. link

Power (POWER ) button

This turns the power on/off (standby). link

Input source select buttons

These select the input source. link

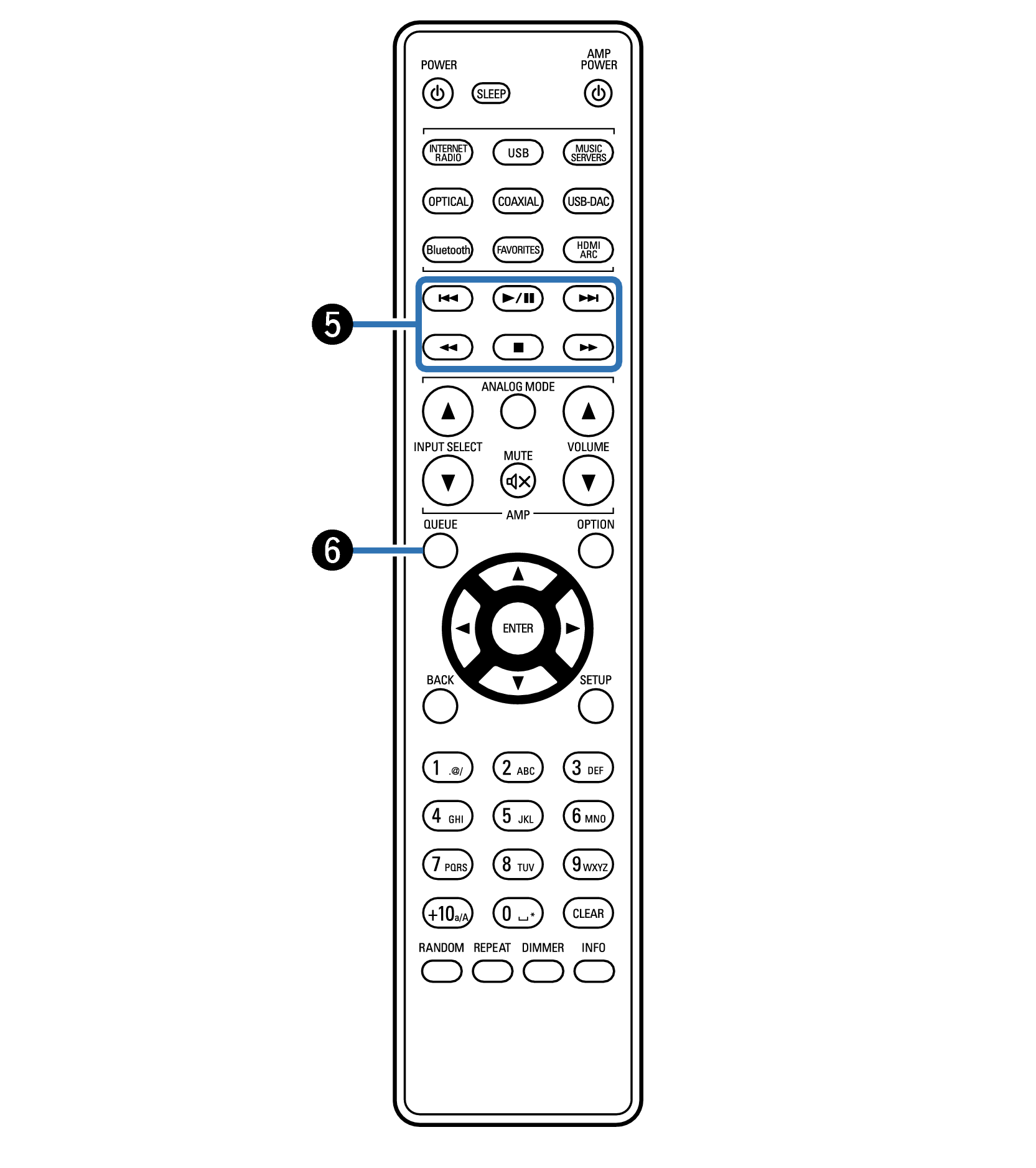

System buttons

These perform playback related operations.

Play/Pause button ( Triangle Right / Pause )

Press this button to pause during playback. If pressed while paused or stopped, resumes playback from the last track played.

Forward-skip button ( Skip-Right )

Press this button during playback to play the next track.

Reverse-skip button ( Skip-Left )

Press this button during playback to restart the current track or play the previous track.

Fast-forward button ( Forward )

Press and hold this button to fast-forward the track.

Fast-reverse button ( Rewind )

Press and hold this button to fast-reverse the track.

Stop button ( Square Black )

Press this button to stop during playback.

Depending on the input source and online service, the operation cannot be performed.

QUEUE button

This displays the queue.

Listening to Internet Radiolink

Playing back files stored on PC or NASlink

Playing a USB flash drivelink

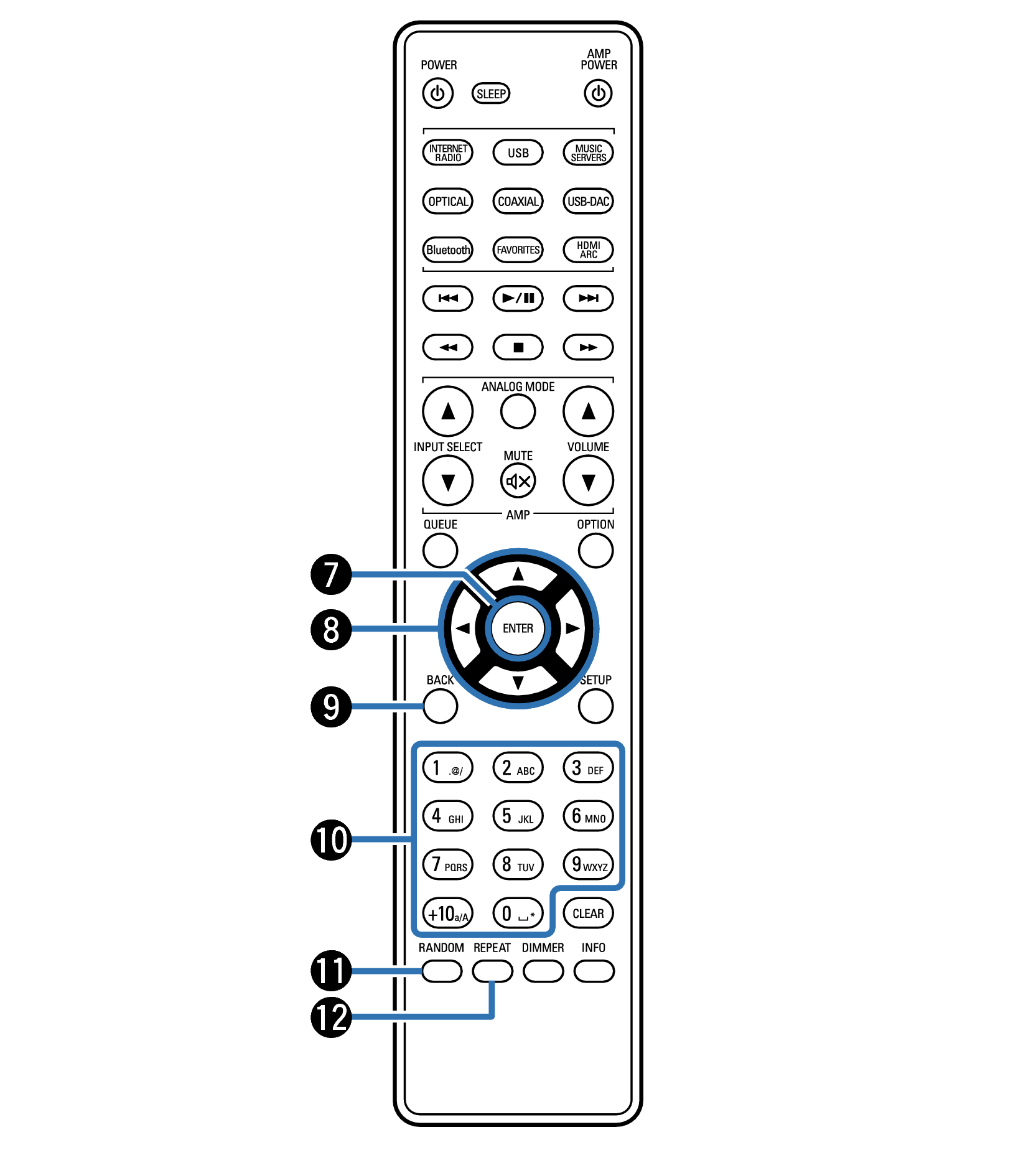

ENTER button

This determines the selection.

Cursor buttons ( )

These select items.

BACK button

Returns to the previous item.

Number/letter buttons (0 – 9, +10)

These enter letters or numbers into the unit. link

RANDOM button

Switches the random playback.

REPEAT button

Switches the repeat playback.

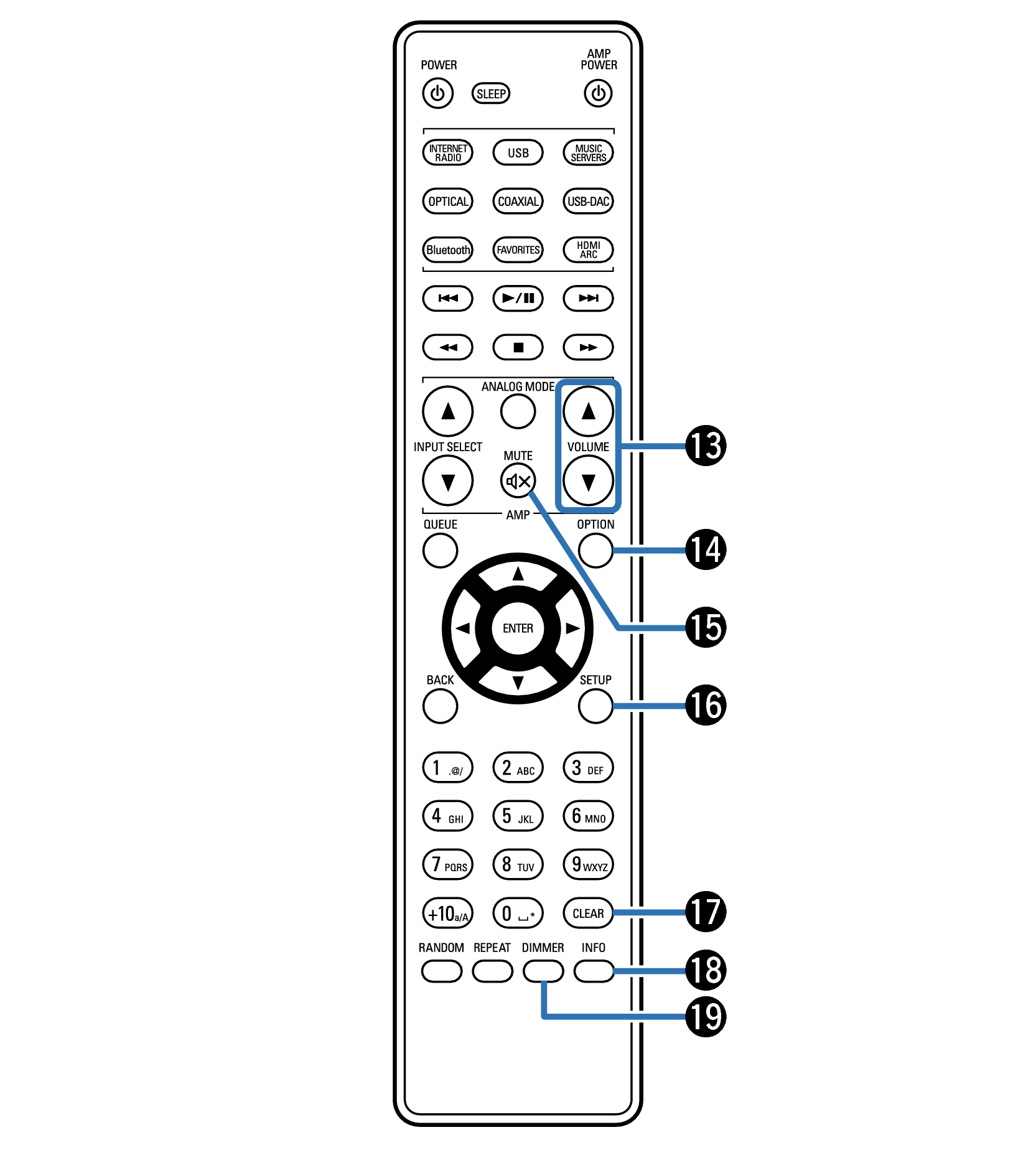

VOLUME buttons ( )

These adjust the volume of the audio signal output from the analog audio output terminals (VARIABLE) of this unit. This function is enabled when the volume control mode of the remote control is network audio player control mode. link

OPTION button

This displays the option menu on the display.

An option menu is not displayed for some input sources.

MUTE button ( )

This mutes the audio signal output from the analog audio output terminals (VARIABLE) of this unit. This function is enabled when the volume control mode of the remote control is network audio player control mode. link

SETUP button

The setting menu is displayed on the display. link

CLEAR button

This cancels the settings.

Information button (INFO)

This switches the track information shown in the display during playback.

DIMMER button

Adjust the display brightness of this unit. link

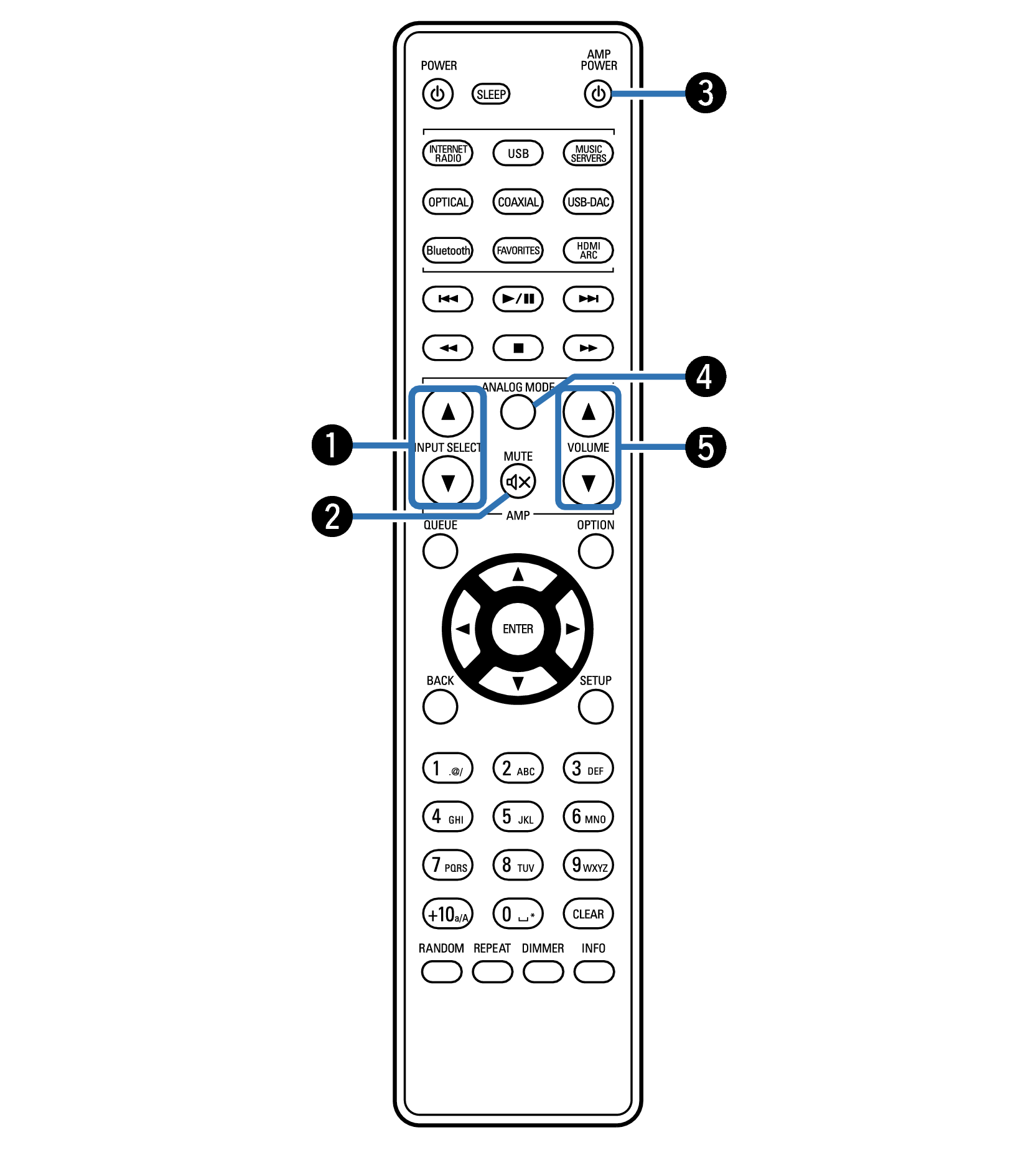

Amplifier operations

A Denon amplifier can be operated.

INPUT SELECT buttons ( )

MUTE button ( )

Power (AMP POWER ) button

ANALOG MODE button

VOLUME buttons ( )

The remote control may not operate some products.

kuromaru 2 and kuromaru 5 can be operated when the remote control operation mode is set to amplifier operation mode (factory default setting). link
