Remote control unit
Operating this unit

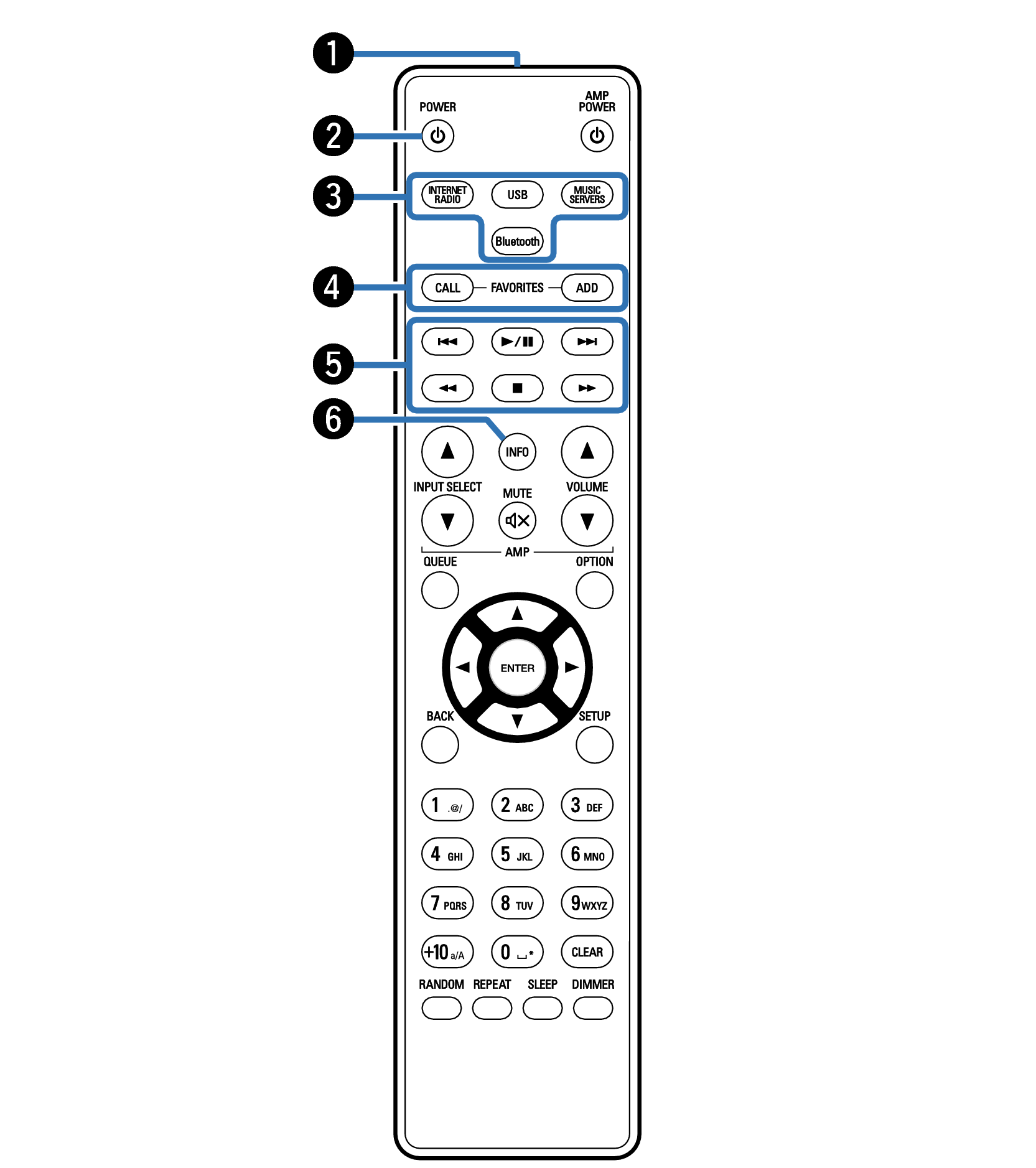

Remote control signal transmitter
This transmits signals from the remote control unit. link
Power operation button (POWER )
This turns the power on/off (standby). link
Input source select buttons
These select the input source. link
FAVORITES CALL / ADD buttons
This allows you to register content to “HEOS Favorites” and call registered content.
System buttons
These perform playback related operations.
Information button (INFO)
This switches the track information shown in the display during playback.

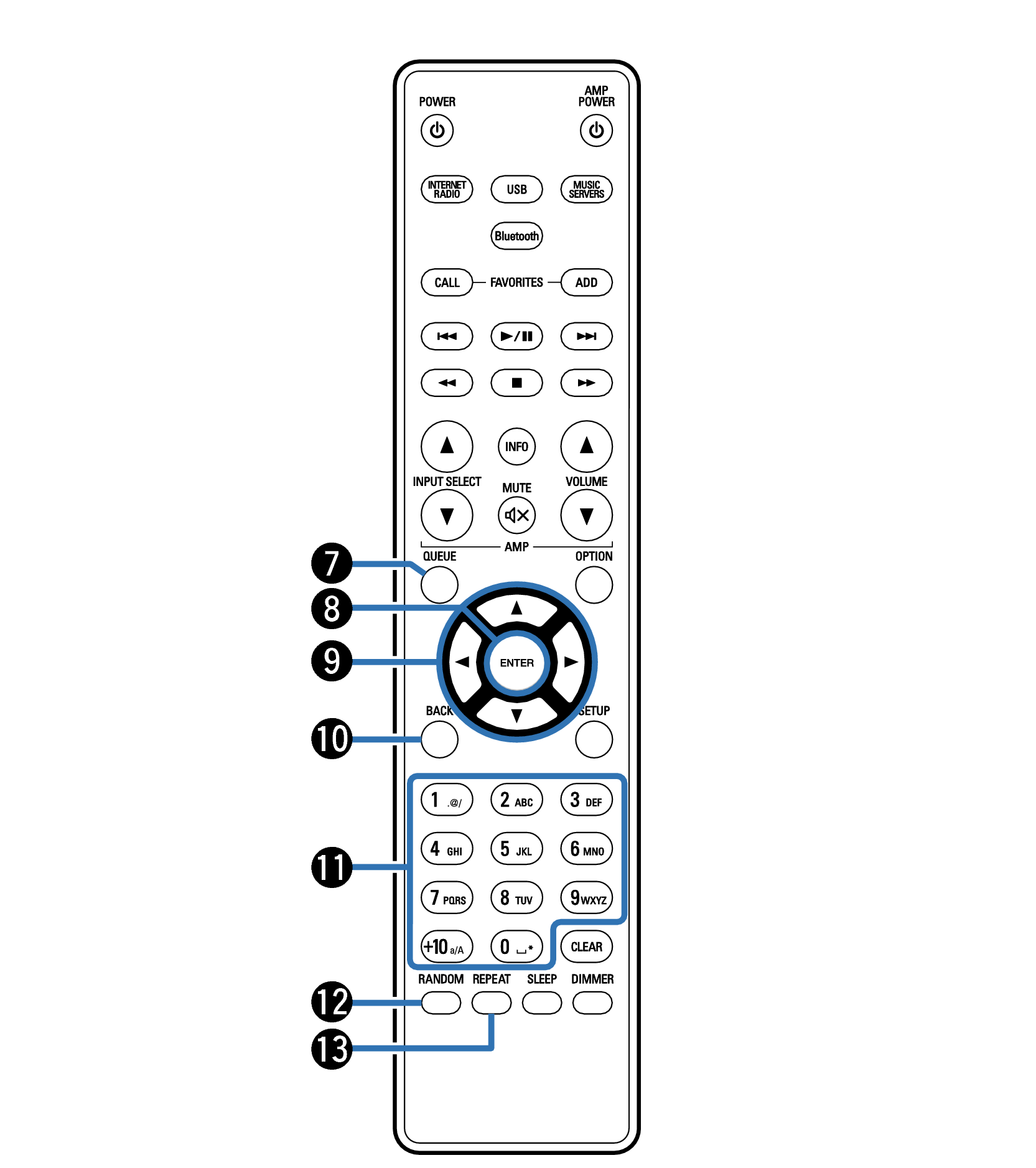

QUEUE button
This displays the queue.
ENTER button
This determines the selection.
Cursor buttons ( )
These select items.
BACK button
Returns to the previous item.
Number/letter buttons (0 – 9, +10)
These enter letters or numbers into the unit. link
RANDOM button
Switches the random playback.
REPEAT button
Switches the repeat playback.

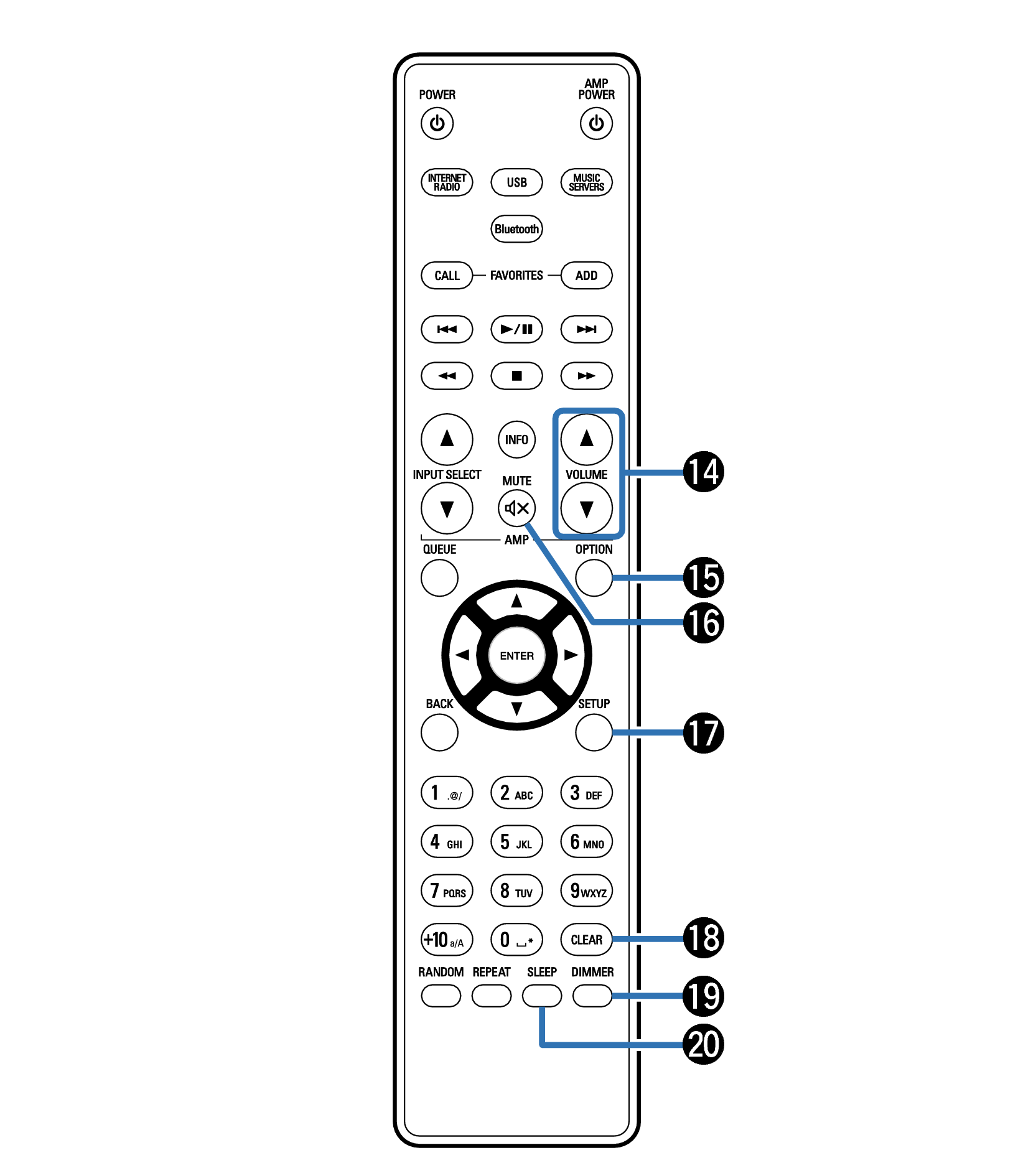

VOLUME buttons ( )
These adjust the volume of the audio signal output from the analog audio output terminals (VARIABLE) of this unit. link
OPTION button
This displays the option menu on the display.
An option menu is not displayed for some input sources.
MUTE button ( )
This mutes the audio signal output from the analog audio output terminals (VARIABLE) of this unit. link
SETUP button
The setting menu is displayed on the display. link
CLEAR button
This cancels the settings.
DIMMER button
Adjust the display brightness of this unit. link
SLEEP button
This sets the sleep timer. link

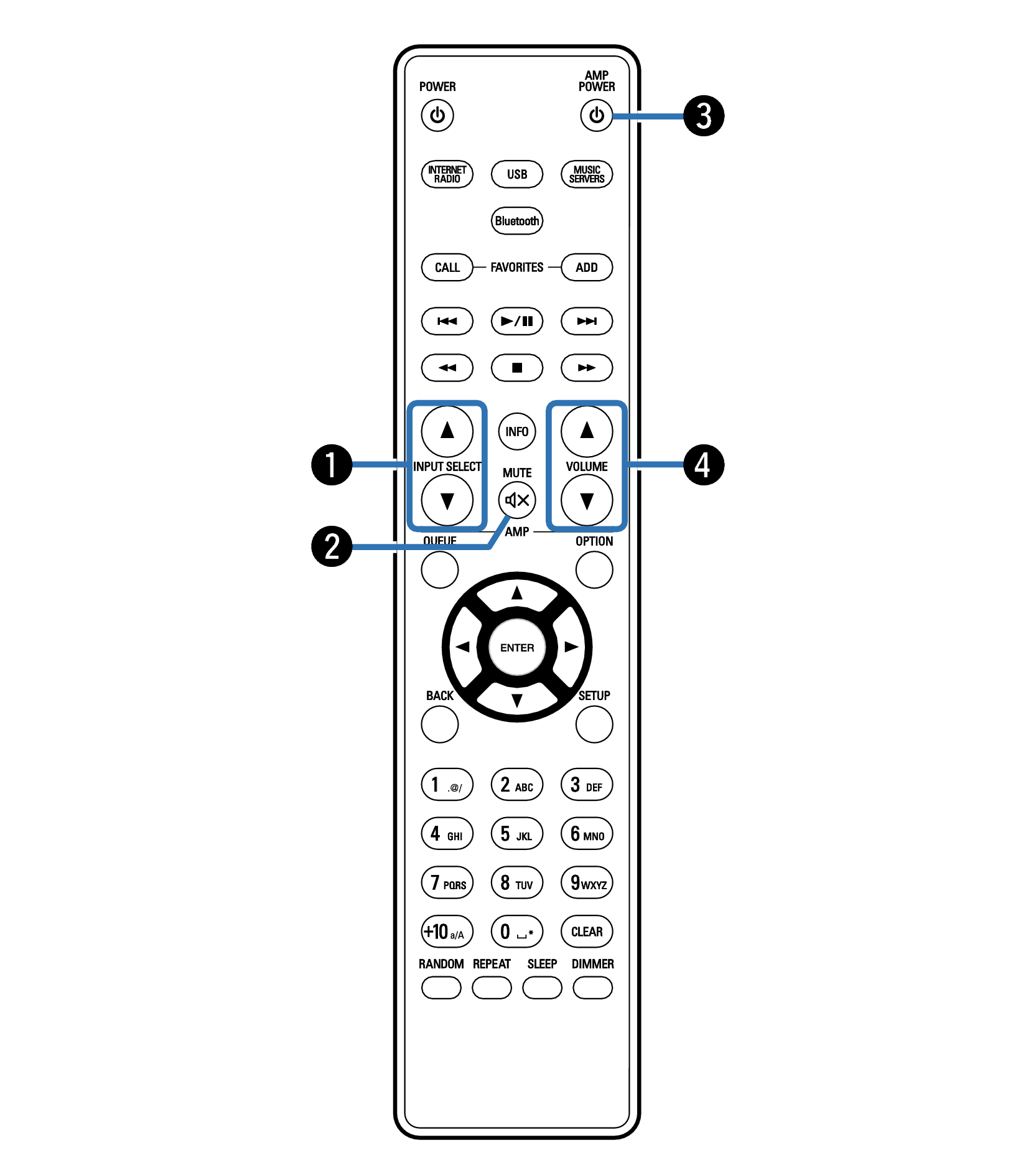

Amplifier operations
A Denon amplifier can be operated.
INPUT SELECT buttons ( )
MUTE button ( )
Power operation button (AMP POWER )
VOLUME buttons ( )
The remote control may not operate some products.
and can be operated when the remote control operation mode is set to amplifier operation mode (factory default setting). link
