Front panel

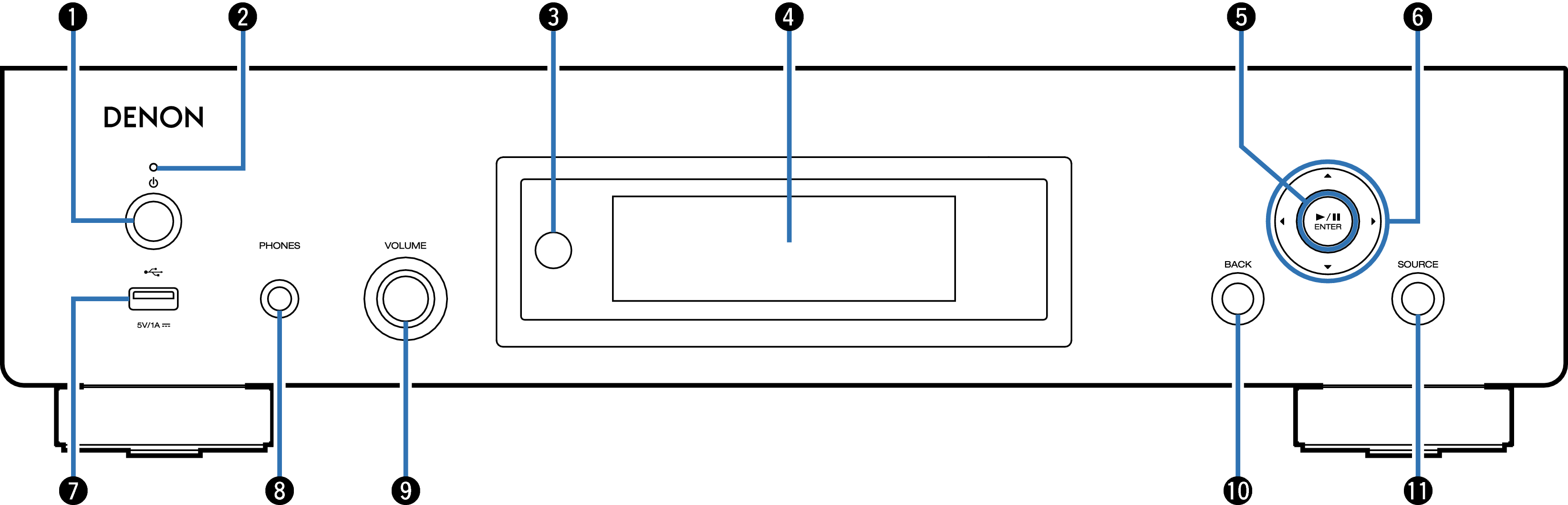

Name Front DNP800NE

Power operation button ( Power Button )

This turns the power on/off (standby). link

Power indicator

This is lit as follows according to the power status:

Green: Power on

Off: Normal standby

Red: Standby when the following settings are configured

When “Network Control” is set to “On”
link

Remote control sensor

This receives signals from the remote control unit. link

Display

This displays various pieces of information.

Playback/Pause/ENTER button ( Triangle Right / Pause /ENTER)

Plays back and pauses tracks, and enters the selected content.

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices).
link

Headphones jack (PHONES)

Used to connect headphones.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

Headphone volume control knob (VOLUME)

Adjusts the headphone volume.

BACK button

Returns to the previous item.

SOURCE button

This selects the input source. link
