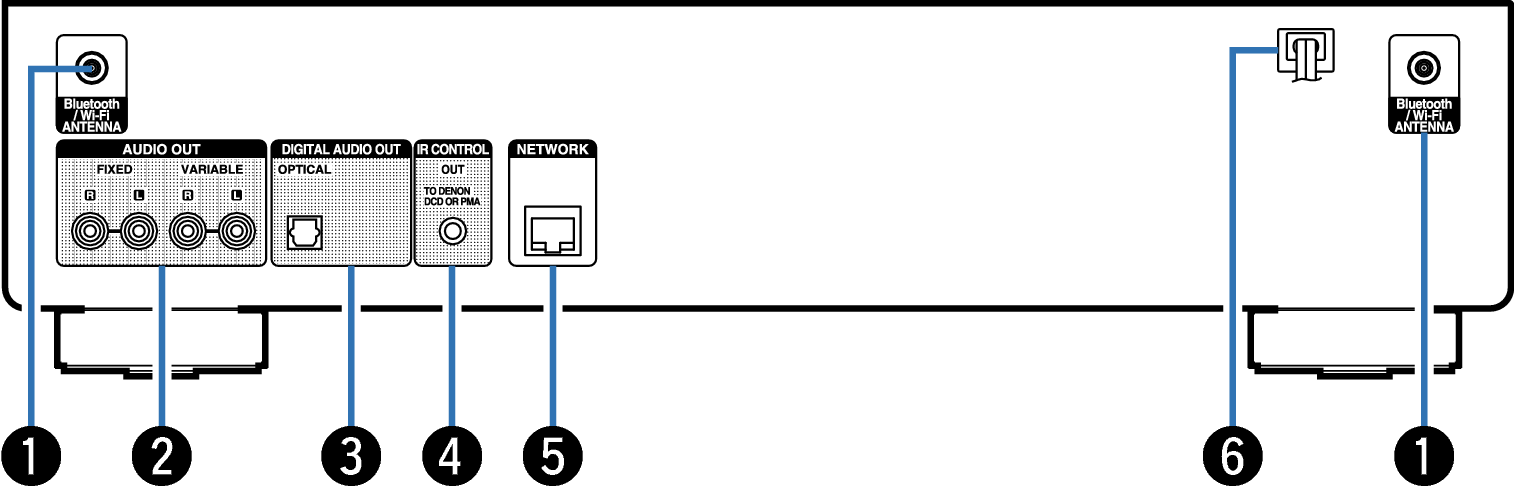

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

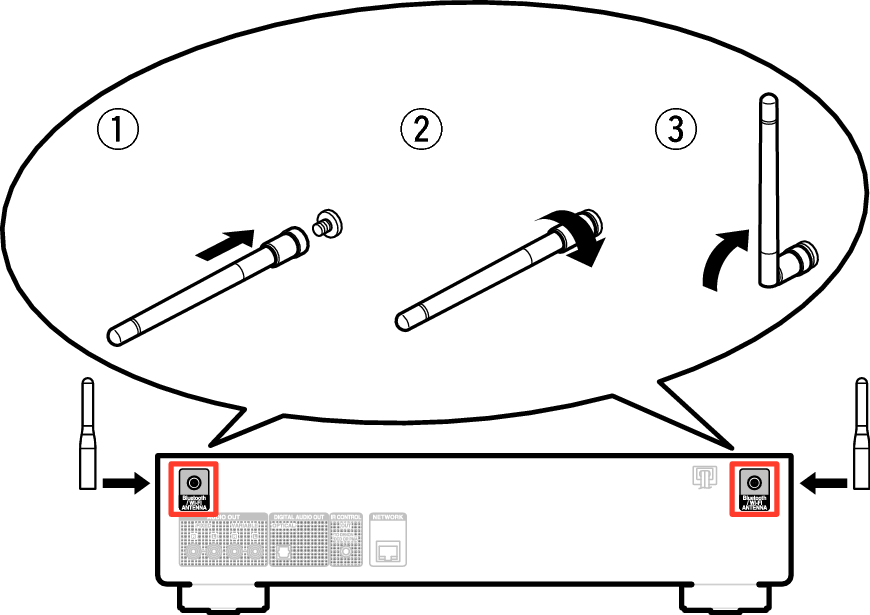

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.

Turn clockwise until the antennas is fully connected.

Rotate the antenna upwards for best reception.

AUDIO OUT connectors

Used to connect devices equipped with analog audio inputs connectors or an external power amplifier. link

DIGITAL AUDIO OUT connector

Used to connect an AV receiver or D/A converter that has a digital input connectors. link

IR CONTROL jack

Connects to a Denon amp that is equipped with a REMOTE CONTROL jack. link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

Power cord link
