Adjusting the stylus pressure
To enable the record stylus to follow the grooves of the record and pick up sound (vibrations), it is necessary to apply a constant pressure (stylus pressure) to the record from the stylus tip. A suitable stylus pressure value is specified for each cartridge. If the stylus pressure is higher or lower than the specified value, not only will the record playback sound be distorted and the stylus jump, but the record stylus may wear out faster and the record may become damaged. Therefore, make sure to adjust the stylus pressure to the suitable value.

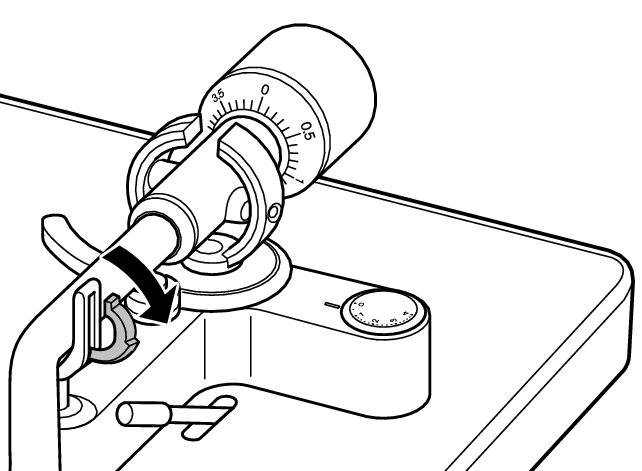

Perform this operation with the stylus cover of the cartridge lowered to protect the stylus tip.

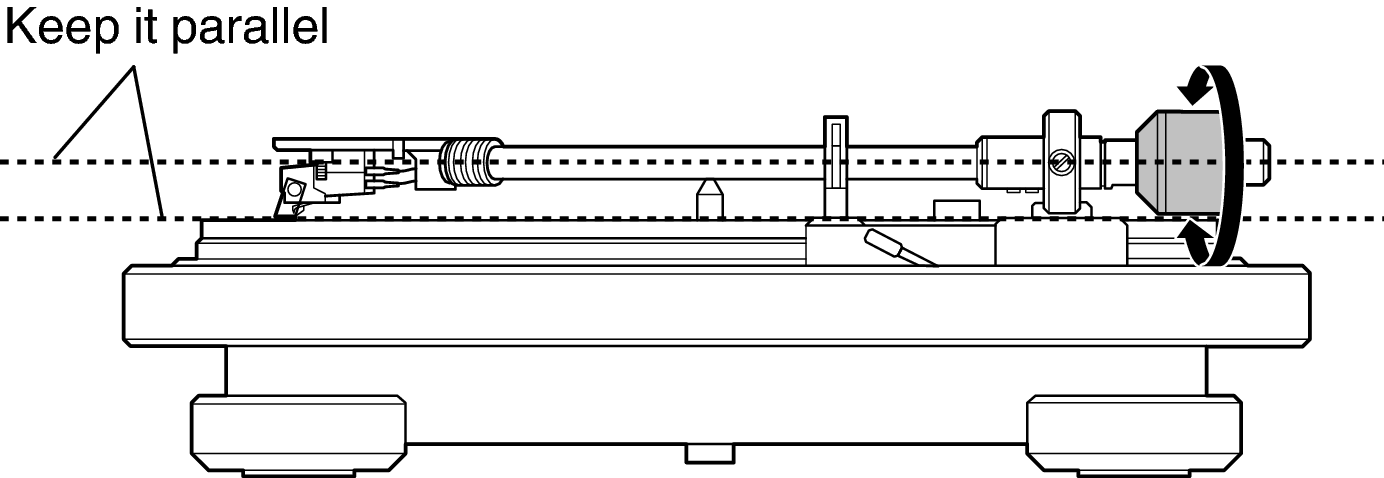

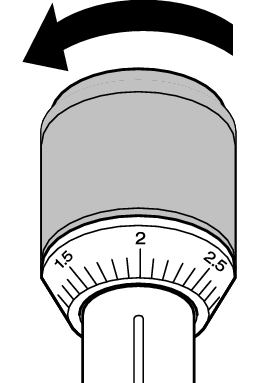

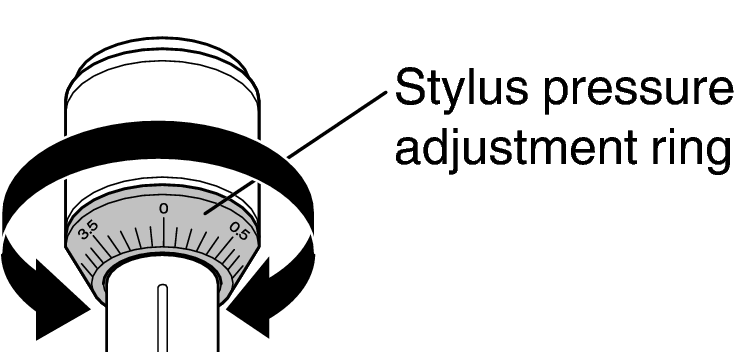

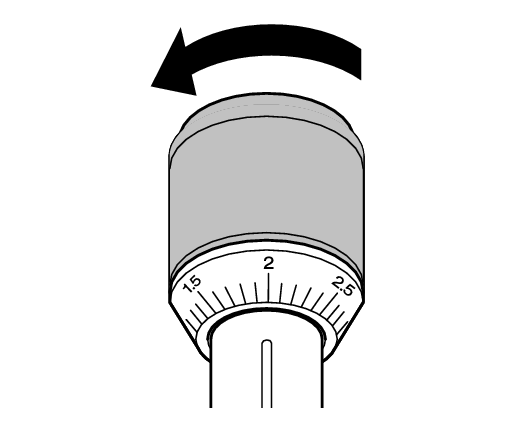

Perform adjustment by turning the counterweight gradually while periodically removing your hand to check the position.
The appropriate stylus pressure for the cartridge included with this unit is 2.0 g (19.6 mN).
