Record playback
Place a record on the turntable.
For EP (“doughnut”) records, insert the included 45 rpm adapter onto the center spindle.
Turn the power/rpm switch knob to match the turntable rpm with the rpm of the record.
The turntable will start turning.
You can select 33 1/3, 45, 78 rpm as the turntable speed per minute.
The record rpm is normally indicated on the jacket or label of the record.

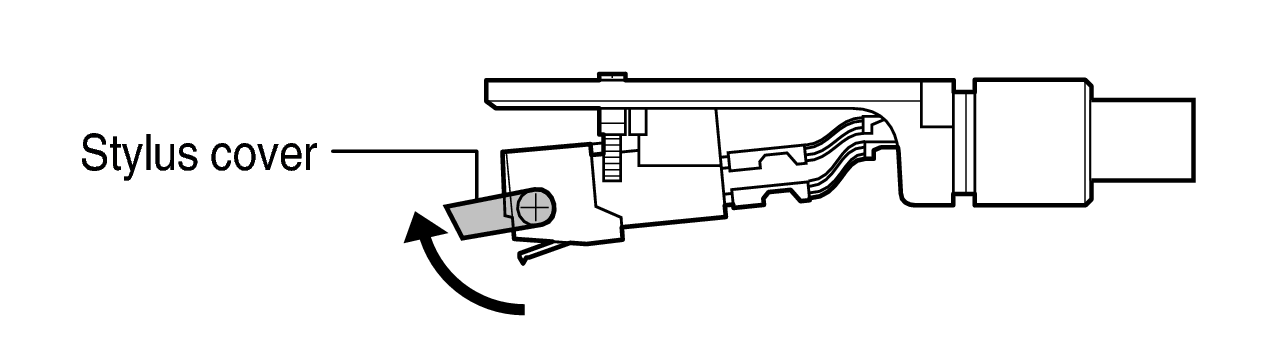

Raise the stylus cover of the cartridge.

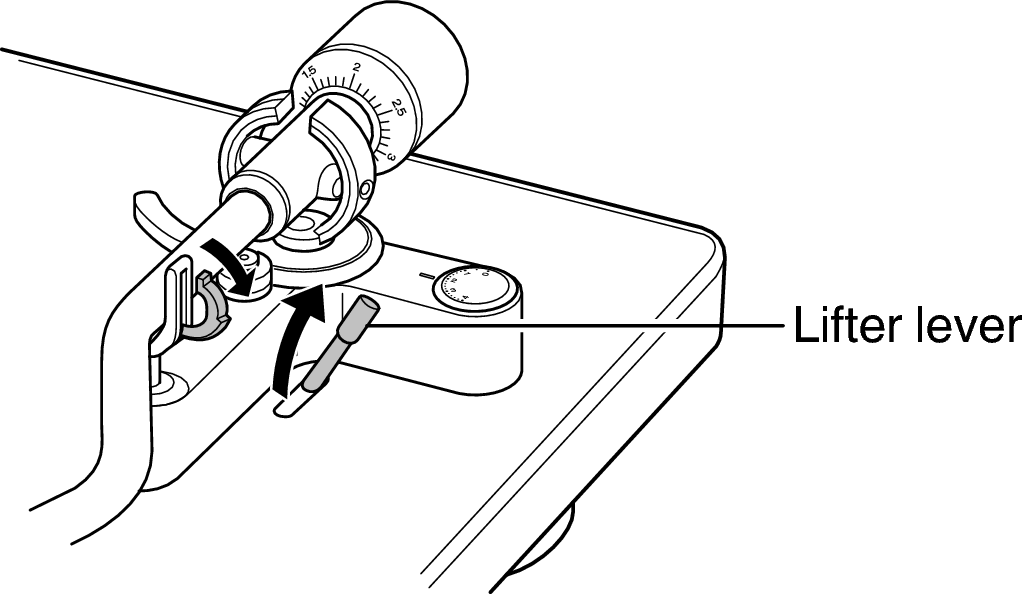

Release the arm rest lock and raise the lifter lever.

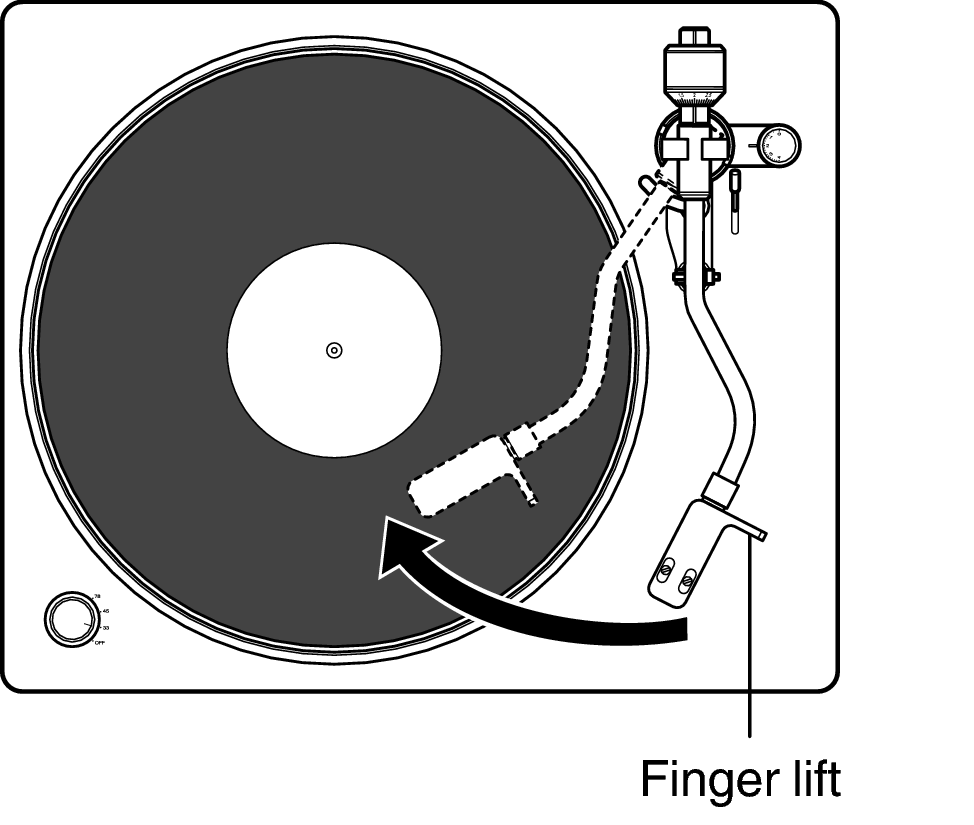

Grip the finger lift, and move the stylus tip directly above the start position of the track to play.

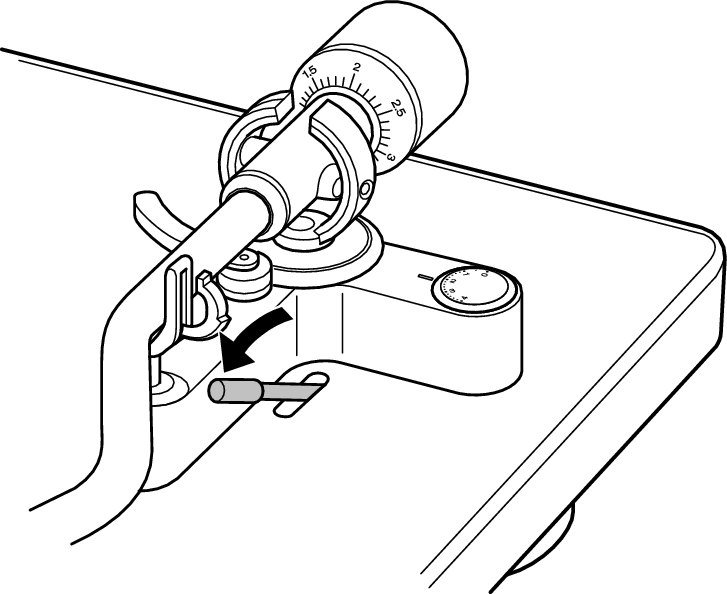

Lower the lifter lever.
The tone arm slowly lowers, and playback starts when the stylus tip reaches the record.
Be careful not to scratch records.
Observe the following during playback.
Do not touch the tone arm or turntable.
Do not disconnect the power.
Make sure the device is not subjected to vibration or impact.
Do not change the record until the turntable has completely stopped.
Do not apply pressure with your hand to stop the turntable while it is turning. Doing so creates internal heat which can lead to equipment failure or fire.
