Mounting the head shell with cartridge

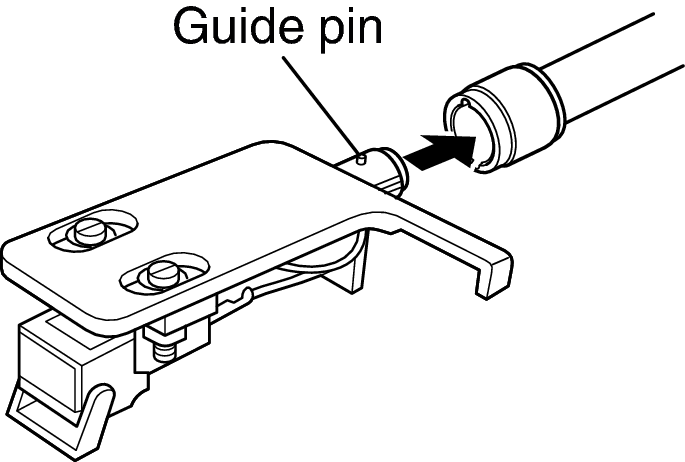

Insert the head shell into the tip of the tone arm.

Insert the head shell with its guide pin facing up and aligned with the hole on the top of the tone arm.

Asse Head shell 1

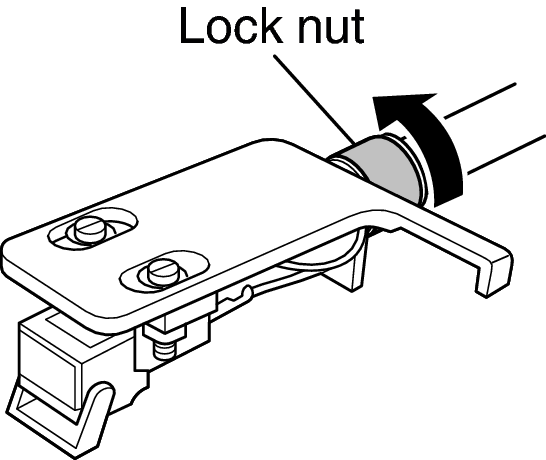

Turn the lock nut in the direction of the arrow to secure the head shell.
Asse Head shell 2
NOTE

Perform this operation with the stylus cover of the cartridge lowered to protect the stylus tip.
