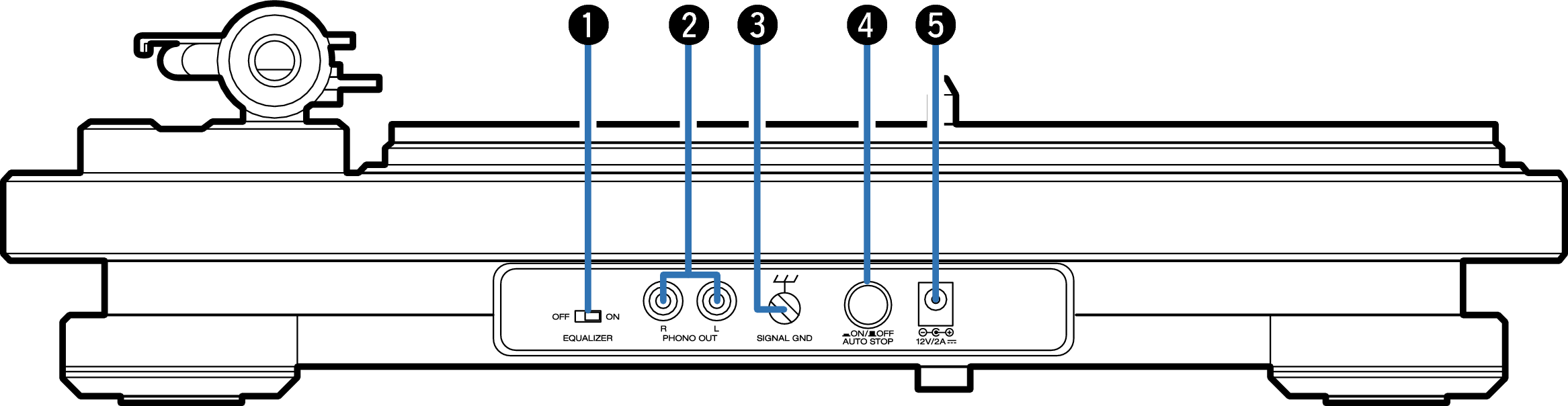

Rear panel
EQUALIZER ON/OFF switch
This switches the built-in equalizer on and off. Switch as needed depending on whether the connected amplifier or mini component system are equipped with phono input or not.
PHONO OUT connectors
For connecting devices with external audio or phono inputs.
SIGNAL GND terminal
Use the grounding wire on the supplied audio cable, even when connecting this device to amplifiers with grounded connections. link
AUTO STOP ON/OFF button
Automatically raises the tone arm and stops the turntable at the end of a record when this function is on during record playback. link
AC adapter input connector
For connecting the included AC adapter. link
