Specifications
Audio section
Power amplifier Rated output: |
2-channel driving |
Output connectors: |
4 – 16 Ω/ohms |
THD+N: |
|
S/N ratio (10 W, 6 Ω/ohms, IHF-A): |
ANALOG IN: 86 dB(IHF–A weighted) |
Frequency response: |
20 Hz to 20 kHz: ±1 dB |
Wireless LAN section
Network type: |
Conforming to IEEE 802.11a/b/g/n |
Used frequency range: |
2.4 GHz, 5 GHz |
General
Operating temperature: |
41 °F - 95 °F (5 °C - 35 °C) |
Power supply: |
AC 120 V, 60 Hz (for North America) AC 220 - 240 V, 50/60 Hz (for Europe) |
Power consumption: |
60 W |
Power consumption in Network Standby mode: |
4.5W |
Power consumption in Deep Standby mode: |
0.3 W |

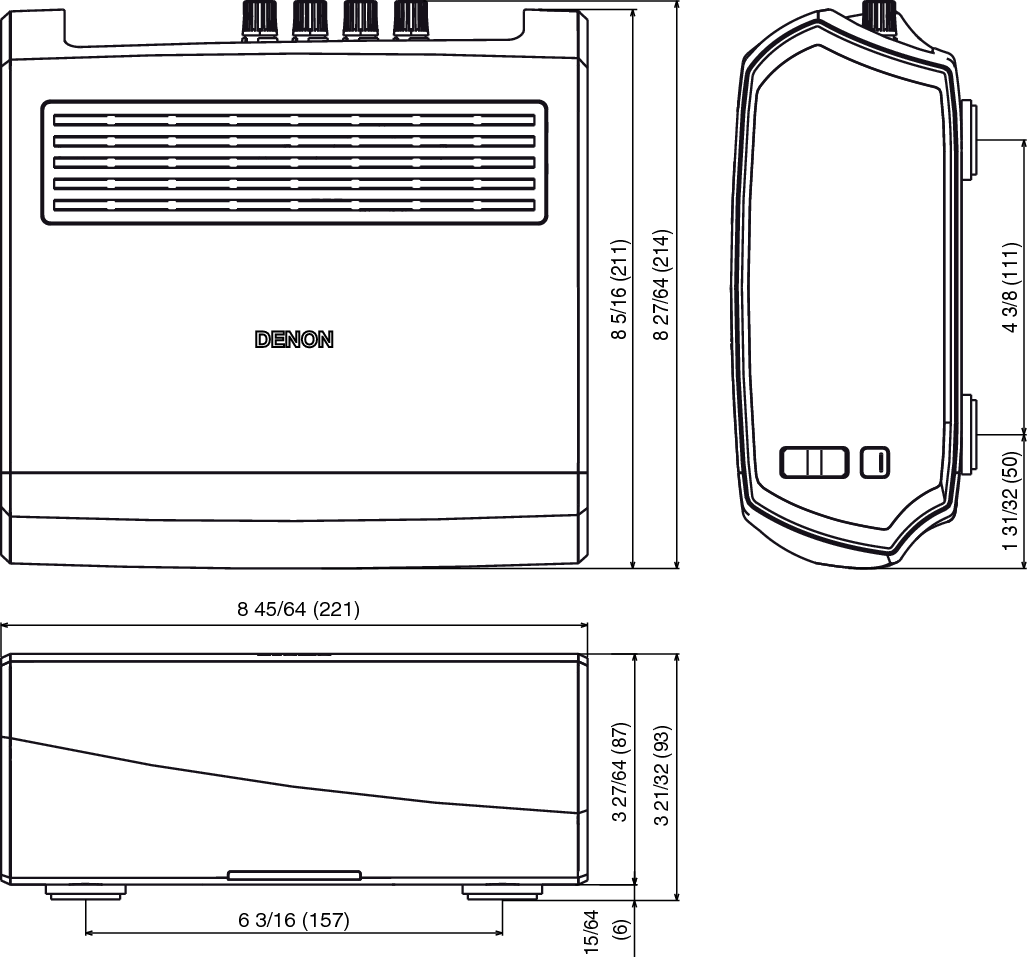

Dimensions (Unit : in. (mm))

Weight : 6 lbs 2.8 oz (2.8 kg)
For the purpose of improvement, the specifications and design are subject to change without notice.
