Status LED table

Device Operation

Description

Front LED Action

Rear LED Action

Off

No AC power or Deep Standby

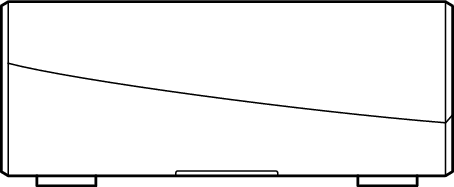

No Indi HEOS Amp

(off)

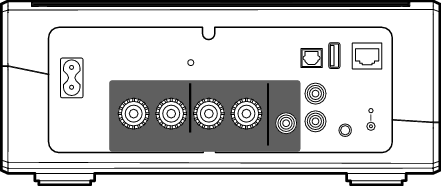

Flash rear no indi HEOS Amp

(off)

Plug in

Booting

Brink blue HEOS Amp

(blink)

Flash rear no indi HEOS Amp

(off)

On

Ready-Configured and connected to your network

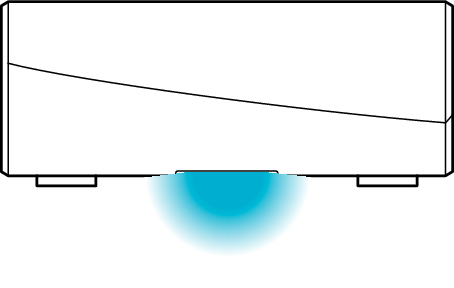

Flash blue HEOS Amp

(solid)

Flash rear no indi HEOS Amp

(off)

Not Connected to your network

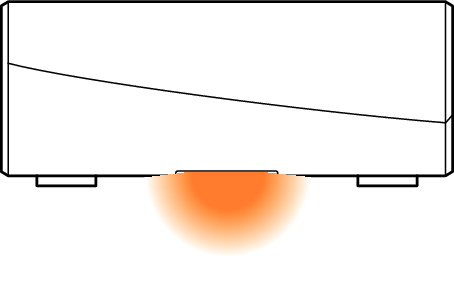

Flash amber HEOS Amp

(solid)

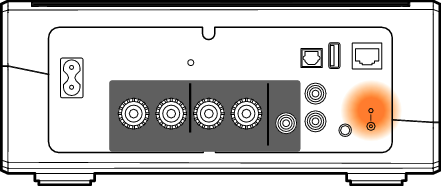

Flash rear amber HEOS Amp

(solid)

Change Network

Connecting to your network

Brink blue HEOS Amp

(blink)

Flash rear no indi HEOS Amp

(off)

Setup

Not connected

Flash amber HEOS Amp

(solid)

Flash rear amber HEOS Amp

(solid)

Connect button was pressed

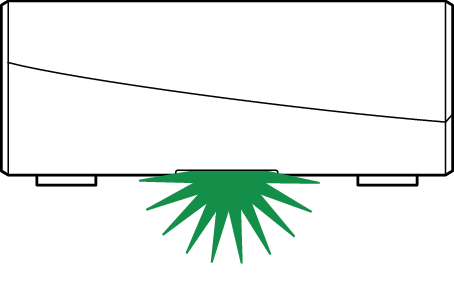

Brink green HEOS Amp

(blink)

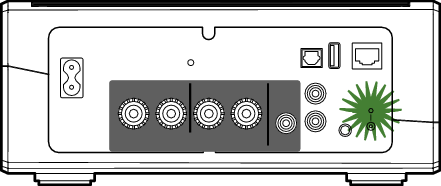

Blink rear green HEOS Amp

(blink)

Cable connection is OK

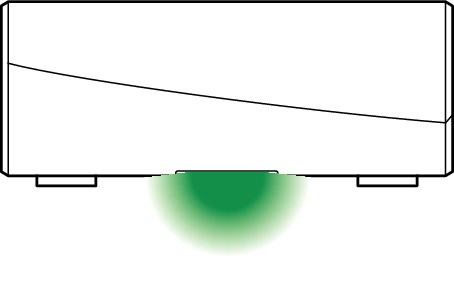

Flash green HEOS Amp

(solid)

Flash rear green HEOS Amp

(solid)

Connecting to your network

Brink blue HEOS Amp

(blink)

Flash rear no indi HEOS Amp

(off)

Configured and connected to your network

Flash blue HEOS Amp

(solid)

Flash rear no indi HEOS Amp

(off)

Error

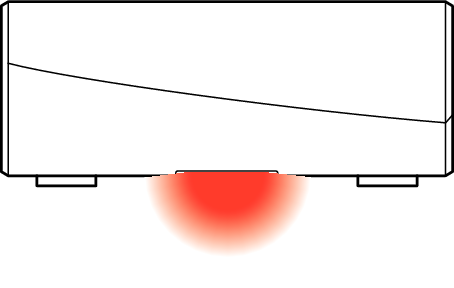

Flash red HEOS Amp

(solid)

Flash rear red HEOS Amp

(solid)

Update

Updating

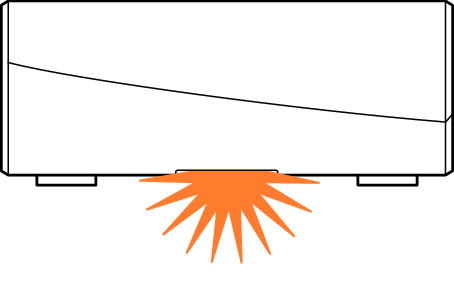

Brink amber HEOS Amp

(blink)

Blink rear amber HEOS Amp

(blink)

Rebooting

Brink blue HEOS Amp

(blink)

Flash rear no indi HEOS Amp

(off)

Ready-Configured and connected to your network

Flash blue HEOS Amp

(solid)

Flash rear no indi HEOS Amp

(off)

Reset

Soft reset - Clear user settings

Brink amber HEOS Amp

(fast blink)

Flash rear amber HEOS Amp

(solid)

Hard reset - Factory restore

Brink amber HEOS Amp

(blink)

Flash rear amber HEOS Amp

(solid)

Rebooting

Brink blue HEOS Amp

(blink)

Flash rear no indi HEOS Amp

(off)

Ready-Not Configured

Flash amber HEOS Amp

(solid)

Flash rear amber HEOS Amp

(solid)

Errors

Firmware Error

Brink red HEOS Amp

(slow blink (NOT fade))

Flash rear no indi HEOS Amp

(off)

Hardware Error

Brink red HEOS Amp

(fast blink)

Flash rear no indi HEOS Amp

(off)

Network Error

Flash amber HEOS Amp

(solid)

Flash rear amber HEOS Amp

(solid)

Volume Change



Brink blue HEOS Amp

(quick blink)

Flash rear no indi HEOS Amp

(off)

Mute



Brink blue HEOS Amp

(slow blink)

Flash rear no indi HEOS Amp

(off)

WPS

a WPS session is active

Brink green HEOS Amp

(fast blink)

Blink rear green HEOS Amp

(fast blink)

WPS connected

Flash green HEOS Amp

(for 3 sec. solid)

Flash rear green HEOS Amp

(solid)

WPS time-out

Flash red HEOS Amp

(for 3 sec. solid)

Flash rear red HEOS Amp

(solid)

Power Management

Network Standby

Flash blue HEOS Amp

(solid)

Flash rear no indi HEOS Amp

(off)

Deep Standby

No Indi HEOS Amp

(off)

Flash rear no indi HEOS Amp

(off)
