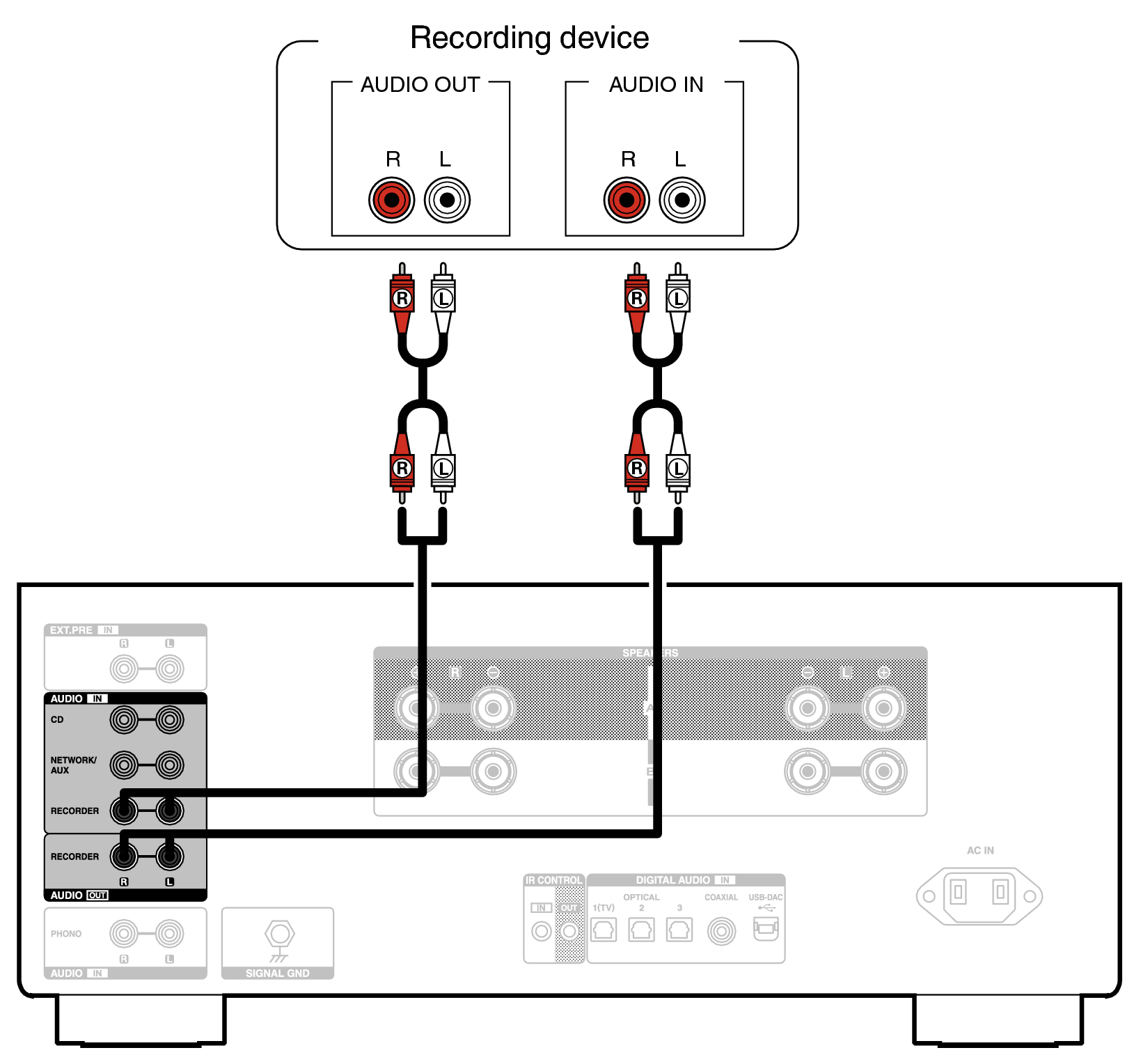

Connecting a recording device

Conne Recorder PMA3000NE

NOTE

Never insert the short-circuiting pin plug into the recording output connectors (AUDIO OUT RECORDER). Doing so could result in damage.
