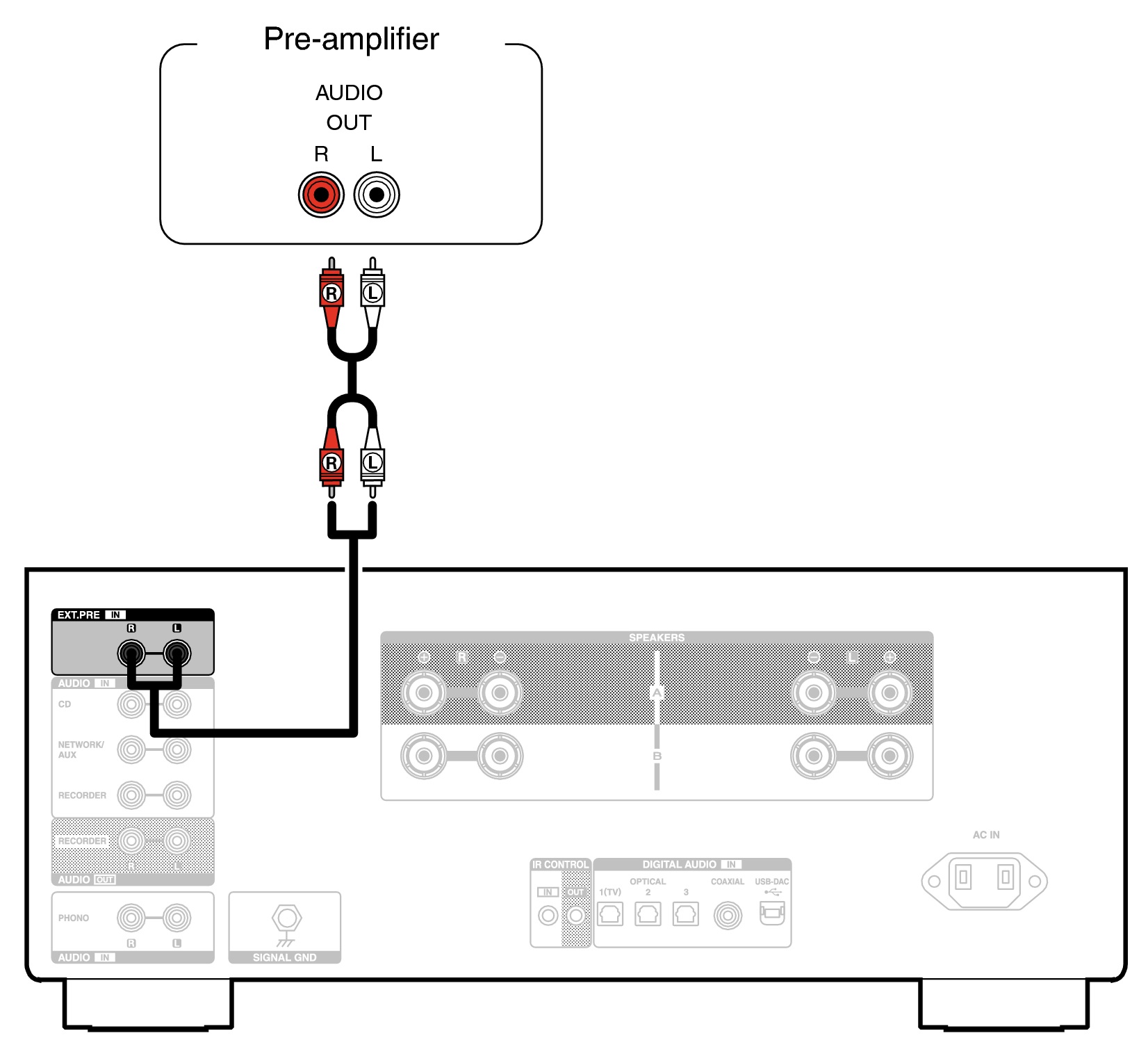

Connecting a pre-amplifier

Conne Preamp PMA3000NE

The EXT.PRE input terminals are equipped with a short pin-plug. Remove this plug to connect a pre-amplifier. Store the removed short pin-plug in a safe place so as not to lose it.
