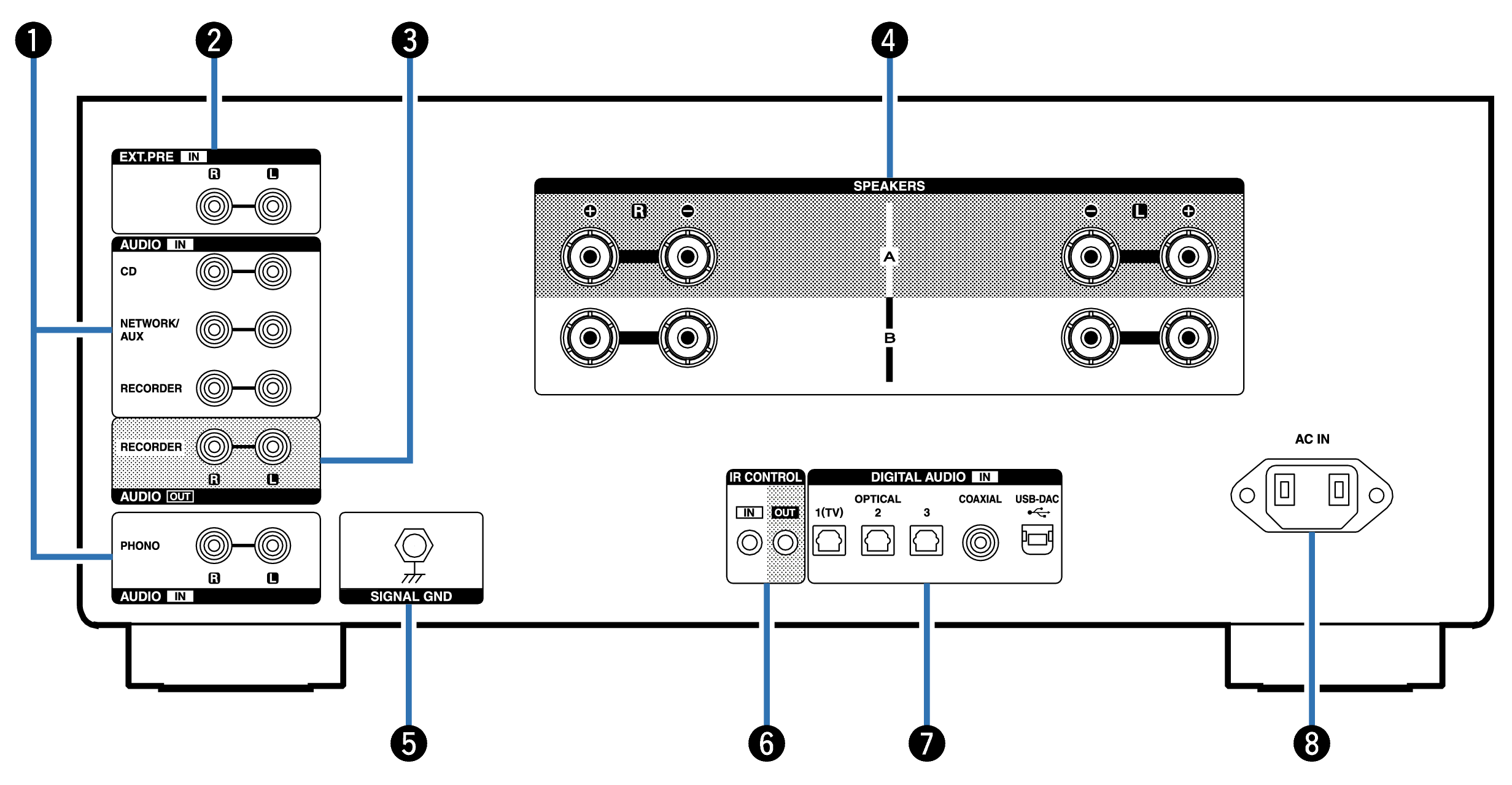

Rear panel

Analog audio connectors (AUDIO IN)

Used to connect devices equipped with analog audio connectors.

Connecting a playback devicelink

Connecting a recording devicelink

EXT.PRE IN connectors

Used to connect a pre-amplifier when this unit is used as a power amplifier. link

The volume should be adjusted on the connected device.

AUDIO OUT connectors

Used to connect the input connector of a recorder. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

SIGNAL GND terminal

Used to connect the ground wire of a turntable. link

IR CONTROL connectors

Used to connect Denon network audio players with an IR controller.

DIGITAL AUDIO IN connectors

Used to connect devices equipped with digital audio output connectors and computer.

Connecting to a device with digital audio output connectorslink

Connecting a PC or Maclink

AC inlet (AC IN)

Used to connect the power cord. link
