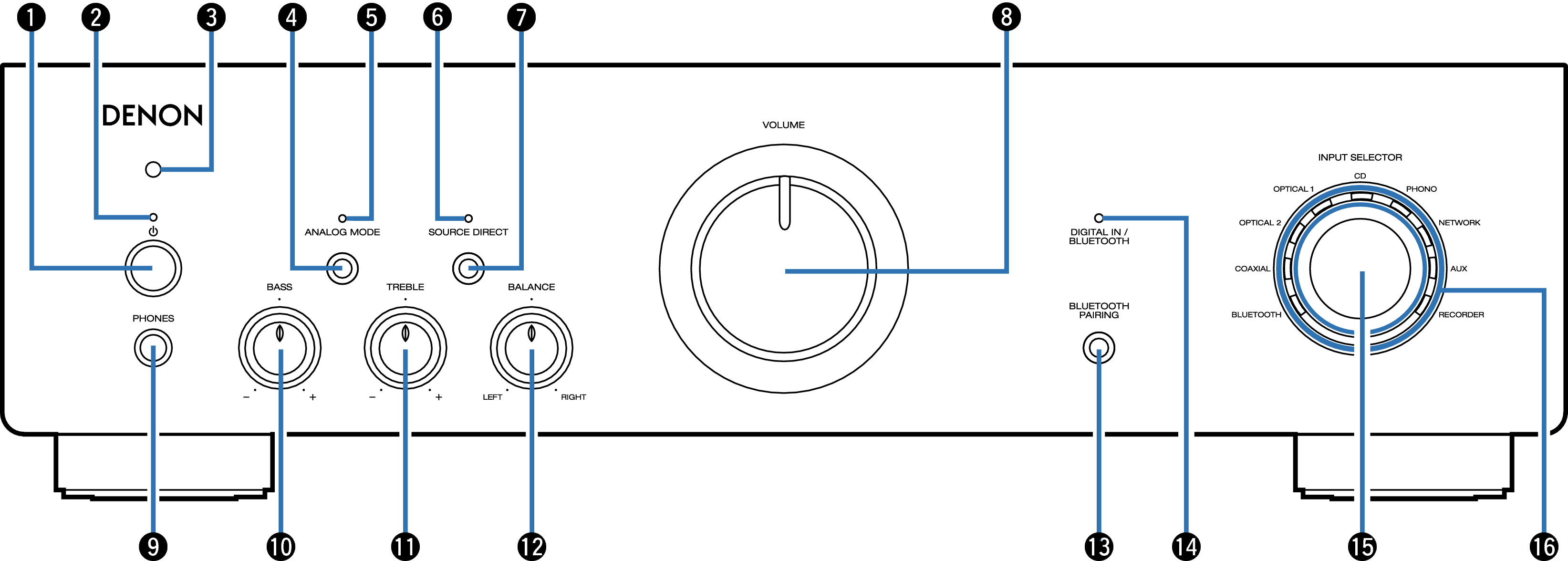

Front panel
Power operation button (
)
This turns the power on/off. link
Power indicator
This is displayed as follows according to the power status:
Lit in green: Power on
Lit in red: Bluetooth standbylink
Off: Normal standby
Remote control sensor
This receives signals from the remote control unit. link
ANALOG MODE button
This turns the analog mode on/off.
link
ANALOG MODE indicator
This is displayed as follows, according to the analog mode status.
Lit in green: Analog mode on
Off: Analog mode off
SOURCE DIRECT indicator
This is displayed as follows according to the source direct status.
Lit in green: Source direct mode on
Off: Source direct mode off
SOURCE DIRECT button
This turns source direct mode on/off. link
VOLUME knob
This adjusts the volume level. link
Headphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
BASS control knob
This setting adjusts the volume level for the bass. link
TREBLE control knob
This setting adjusts the volume level for the treble. link
BALANCE control knob
This adjusts the balance of the volume output from the left and right speakers. link
BLUETOOTH/PAIRING button
This switches the input source to “BLUETOOTH”. It is also pressed during the pairing operation. link
DIGITAL IN/BLUETOOTH indicator
This is displayed as follows, according to the status of the digital audio signals that are input to the digital audio input terminals on this unit.
Lit in green: Playback is supported on this unit
Blinking in green: Playback is not supported on this unit
Off: Sampling frequency cannot be detected
For details on the audio signal specifications that are compatible with this unit, see D/A converterlink.
This is displayed as follows according to the Bluetooth connection status:
Blinking in blue (intervals of about 1 second): Pairing mode
Blinking in blue (intervals of about 2 seconds): Searching mode (searching for a paired Bluetooth device and attempting to connect via Bluetooth)
Lit in blue: Connecting mode (a Bluetooth connection has been made with a Bluetooth device)
Off: Waiting mode (a Bluetooth connection has not been made with any Bluetooth device)
INPUT SELECTOR knob
This selects the input source. link
Input indicators link
,
and
can be adjusted when
is off (SOURCE DIRECT mode is off).
