Remote control unit

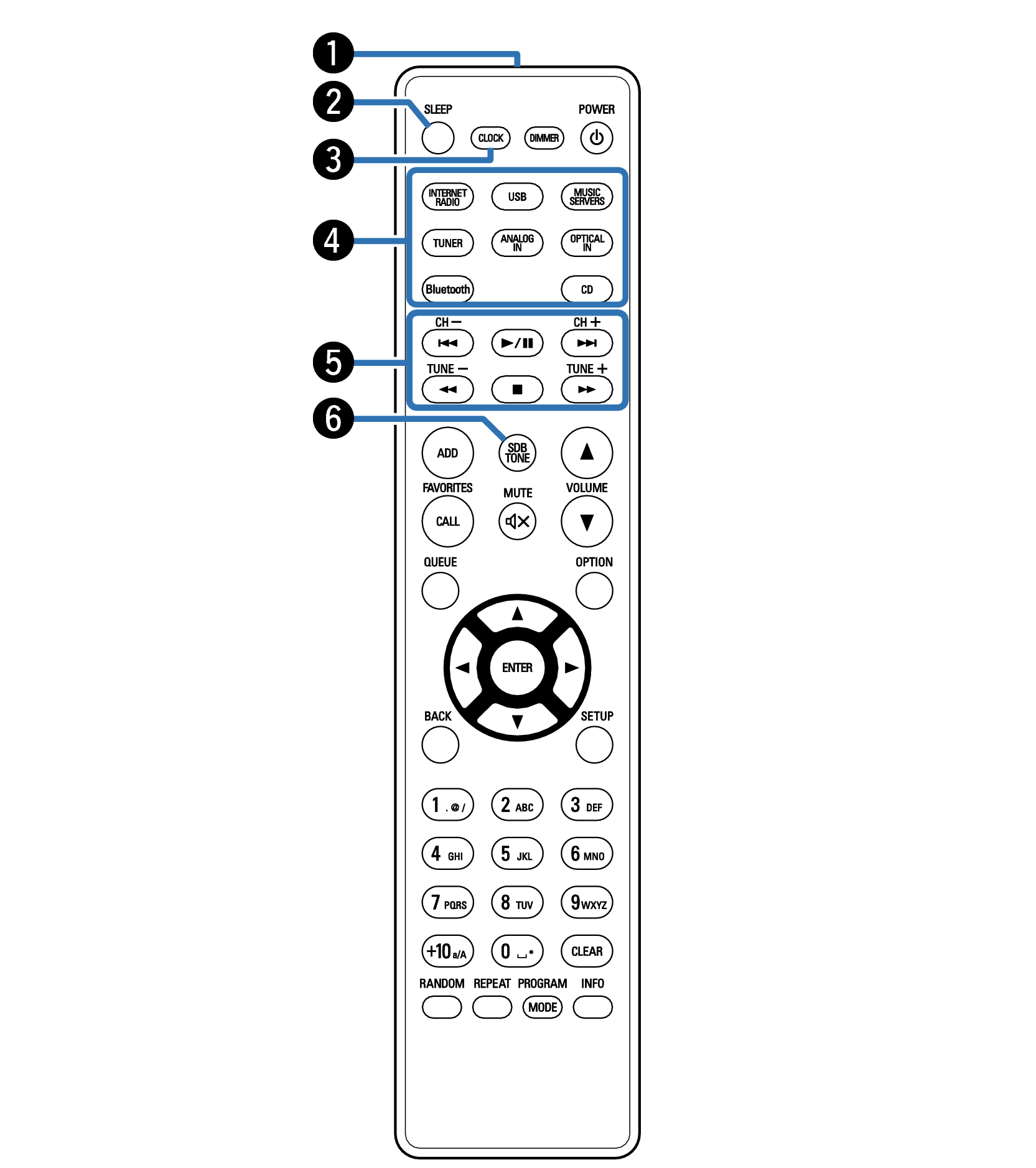

Name RC1222 1

Remote control signal transmitter

This transmits signals from the remote control unit. link

SLEEP button

This sets the sleep timer. link

CLOCK button

The current time appear on the unit. link

Input source select buttons

These select the input source. link

System buttons

These perform playback related operations.

Channel buttons (CH +, –)

These select stations registered to the preset list. link

Tuning buttons (TUNE +, –)

These operate the tuner. link

SDB/TONE button

Adjusting the tone. link

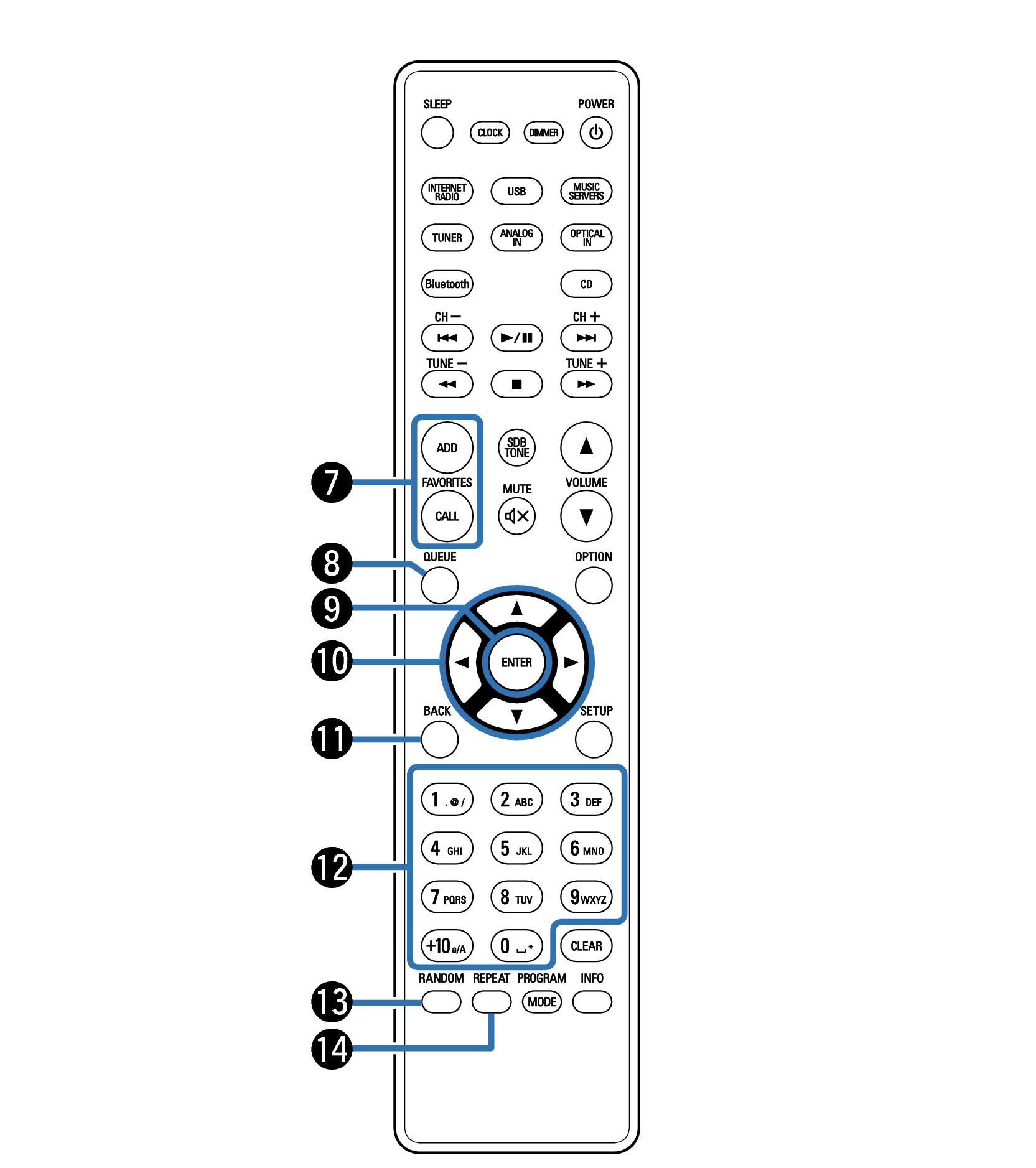

Name RC1222 2


This allows you to register content to “HEOS Favorites” and call registered content.

QUEUE button

This displays the queue.

ENTER button

This determines the selection.

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

BACK button

Returns to the previous item.

Number/letter buttons (0 – 9, +10)

These enter letters or numbers into the unit. link

RANDOM button

Switches the random playback.

REPEAT button

Switches the repeat playback.

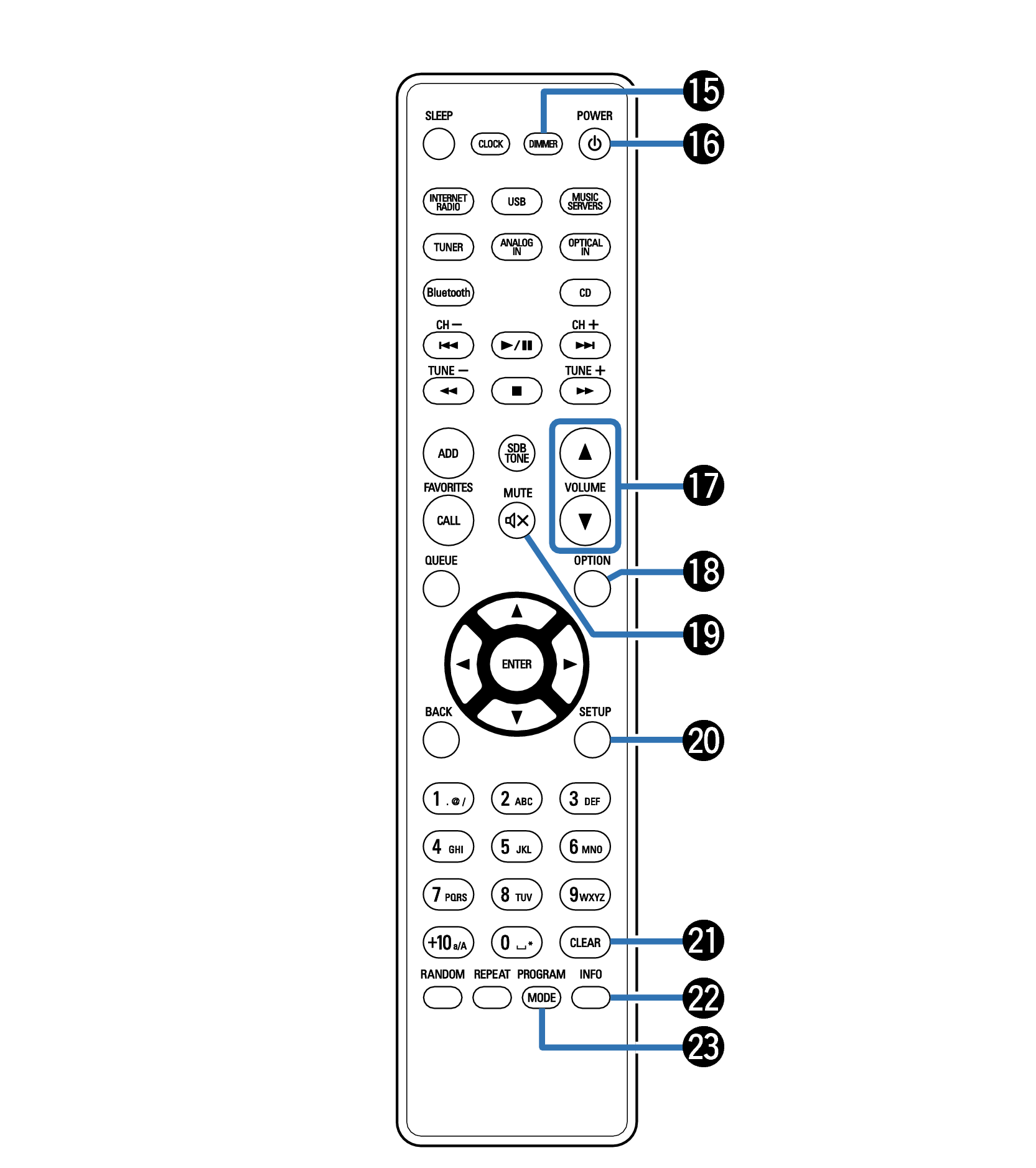

Name RC1222 3

DIMMER button

Adjust the display brightness of this unit. link

Power operation button (POWER Power Button )

This turns the power on/off (standby). link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

Adjusts the volume. link

OPTION button

This displays the option menu on the display.

An option menu is not displayed for some input sources.

This switches the playback range on a data CD. link

MUTE button ( Silent )

This mutes the output audio. link

SETUP button

The setting menu is displayed on the display. link

CLEAR button

This cancels the settings.

Information button (INFO)

This switches the track information shown in the display during playback.

PROGRAM button

This sets program playback. link

MODE button

This switches the operation mode for the FM tuning. link
