Front/Top panel

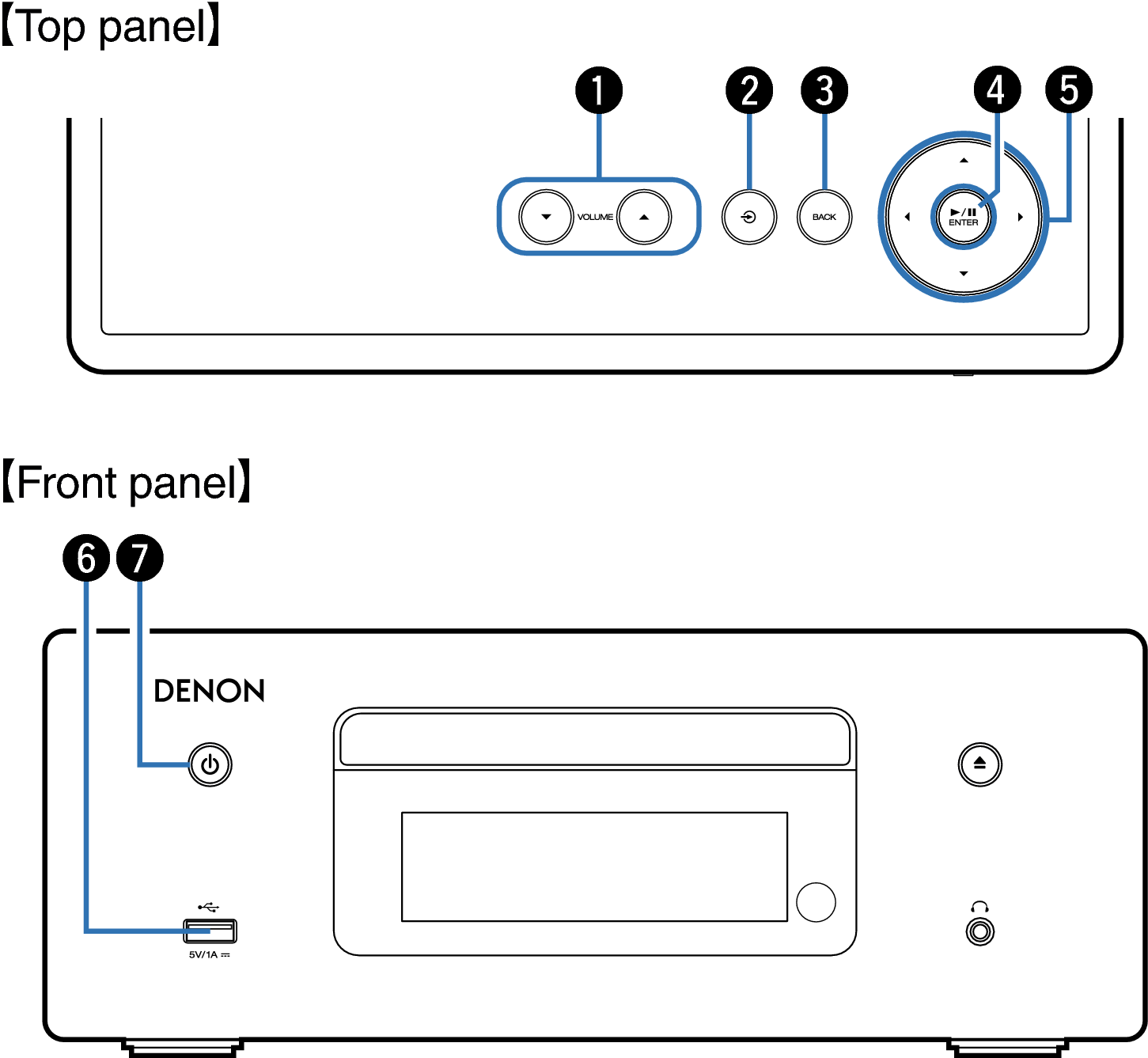

Name Front Small1 RCDN10

VOLUME keys ( kurosankaku Sankaku-Reverse )

Adjusts the volume.

Input source switching key ( Button Input Circle )

This selects the input source.

BACK key

Returns to the previous item.

Playback/Pause/ENTER key ( Triangle Right / Pause /ENTER)

Plays back and pauses tracks, and enters the selected content.

Cursor keys ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices).

Power operation button ( Power Button )

This turns the power on/off (standby). link

Power indicator

This is lit as follows according to the power status:

White: Power on

Off: Standby

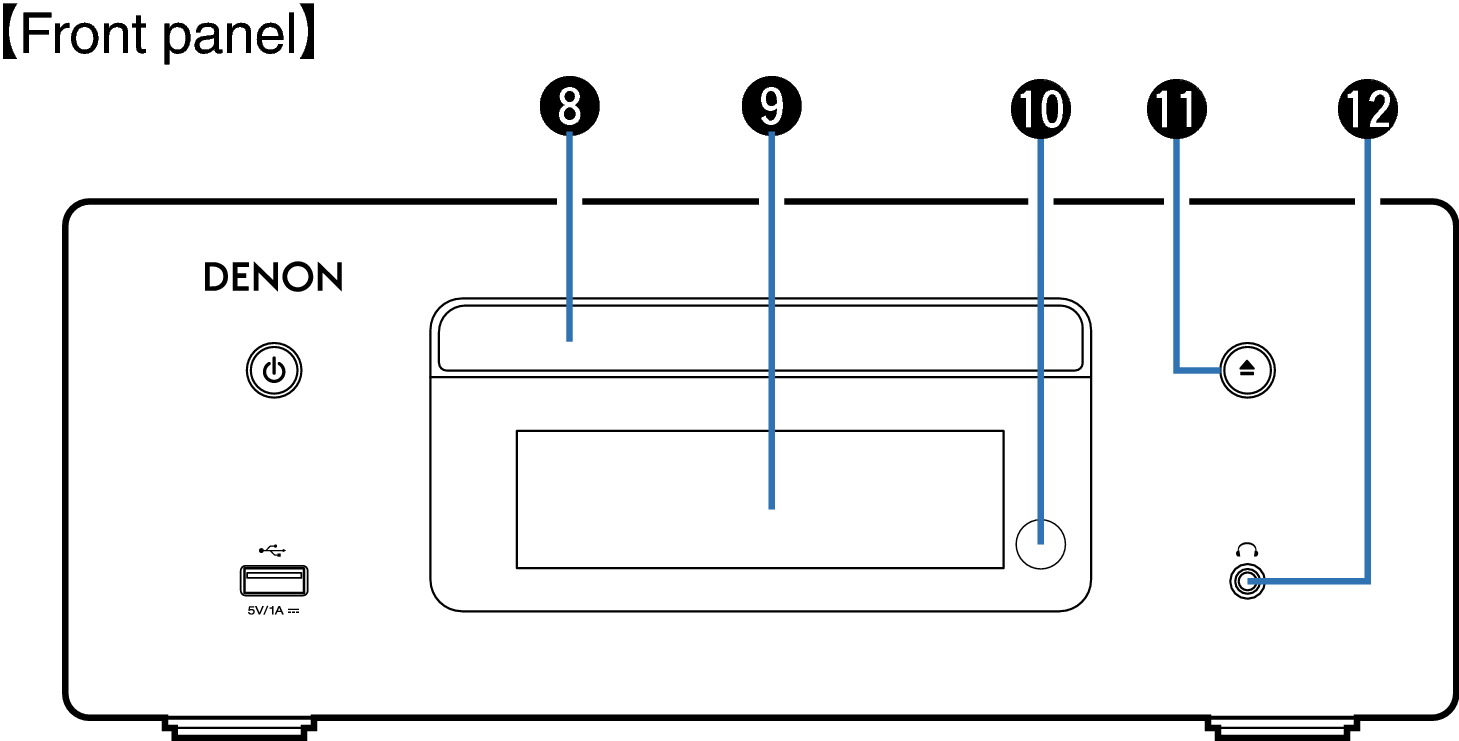

Name Front Small2 RCDN10

Disc tray

Used to insert a disc. link


This displays various pieces of information.

Remote control sensor

This receives signals from the remote control unit. link

Disc tray open/close button ( Triangle-Underline )

Opens and closes the disc tray. link

Headphones jack ( Headphone Jack )

Used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers.


To prevent hearing loss, do not raise the volume level excessively when using headphones.
