Menu map

When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.

The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.

Setting items

Detailed items

Description

Page

Icon Audio

Audio

Subwoofer Level Adjust

Adjusts the subwoofer channel volume for all input sources.

Bass Sync

Adjusts the phase shift when there is a delay in the bass (LFE) recorded on a disc.

Surround Parameter

Adjusts surround sound parameters.

Restorer

Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback.

Audio Delay

Compensates for incorrect timing between video and audio.

Volume

Sets the MAIN ZONE (room where the unit is located) volume setting.

Audyssey

Makes Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFCTM settings.

Graphic EQ

Uses the graphic equalizer to adjust the tone of each speaker.

Icon Video

Video

Picture Adjust

Adjusts picture quality.

HDMI Setup

Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings.

Output Settings

Makes settings for video output.

Component Video Out

Sets whether to use the component video output connector for MAIN ZONE or ZONE2.

On Screen Display

Configures the on-screen display settings.

Screen Saver

Select the screen saver setting.

4K/8K Signal Format

Sets signal format options for your 4K or 8K video equipment.

HDCP Setup

Sets the HDCP version for each HDMI input source.

TV Format

Sets the video signal format to be output for the TV you are using.

Setting items

Detailed items

Description

Page

Icon Inputs

Inputs

Input Assign

Changes input connector assignment and the audio input mode.

Source Rename

Changes the display name for input source.

Hide Sources

Removes from the display input sources that are not used.

Source Level

Adjusts the playback level of the audio input.

Icon Speakers

Speakers

Audyssey® Setup

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically.

Manual Setup

Sets up the speakers manually or changes Audyssey® Setup settings.

Icon Network

Network

Information

Displays network information.

Connection

Selects whether to connect the home network to a wireless LAN or a wired LAN.

Settings

Used for manually setting the IP address.

Network Control

Enables network communication in standby power mode.

Friendly Name

The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.

Diagnostics

Used to check the network connection.

AirPlay

Settings for Apple AirPlay.

Setting items

Detailed items

Description

Page

Icon HEOS Account LEGO

HEOS Account

【When the user is signed out the HEOS Account】

I have a HEOS Account

Selects to sign in.

Create Account

Creates new HEOS Account.

Forgot Password

If you forgot your password, we'll send you an email with instructions about how to reset it.

【When the user is signed in the HEOS Account】

Signed in As

Displays your HEOS Account.

Change Location

Selects your location.

Change Password

Changes your HEOS Account Password.

Delete Account

Deletes your HEOS Account.

Sign Out

Sign out of your HEOS Account.

Setting items

Detailed items

Description

Page

Icon General

General

Language

Changes the language of the display on the TV screen.

ECO

Configures the ECO Mode and Auto Standby energy-saving functions.

Bluetooth Transmitter

Sets Bluetooth transmitter settings.

ZONE2 Setup/
ZONE3 Setup

Makes settings for audio playback with ZONE2 and ZONE3.

Zone Rename

Changes the display title of each zone to one you prefer.

Quick Select Names

Changes the Quick Select Name display title to one you prefer.

Trigger Out 1/
Trigger Out 2

Select the conditions for activating trigger out function.

Front Display

Makes settings related to the display on this unit.

Firmware

Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display.

Information

Shows information about this unit settings, input signals, etc.

Usage Data

Selects whether or not to send anonymous usage data to Denon.

Save & Load

Save and restore device settings by using a USB memory device.

Setup Lock

Protects settings from inadvertent changes.

Reset

Various settings are reset to the factory default values.

Icon SetupAssistant

Setup Assistant

Begin Setup...

Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen.

Page 9 of the separate manual “Quick Start Guide”

Language Select

Sets individual setting items according to the guidance displayed on the TV screen.

Speaker Setup

Speaker Calibration

Network Setup

TV Audio Connection

Input Setup

Mobile Apps

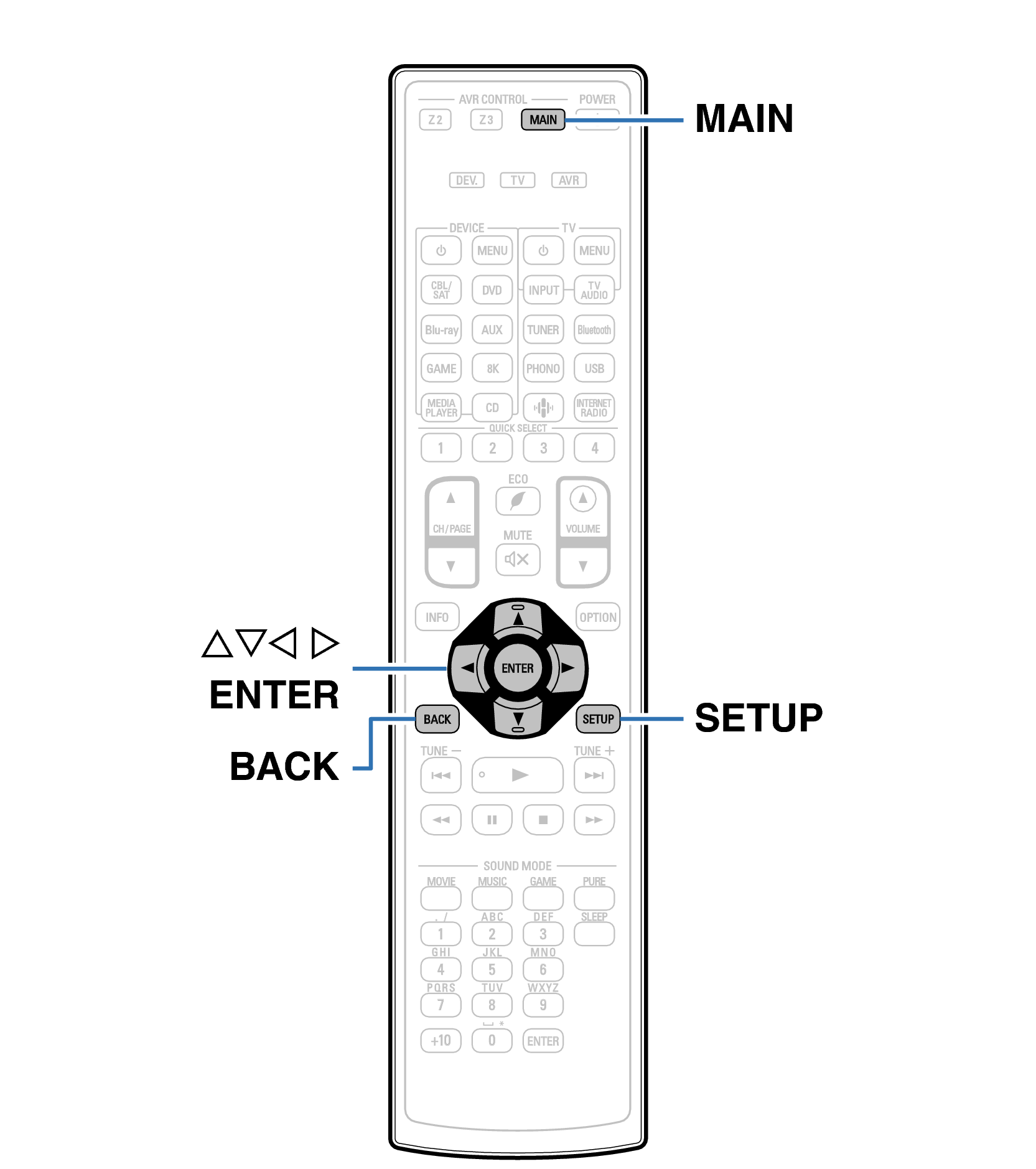

Remote control unit illustration

Ope Menu RC1240
