Connecting an amplifier

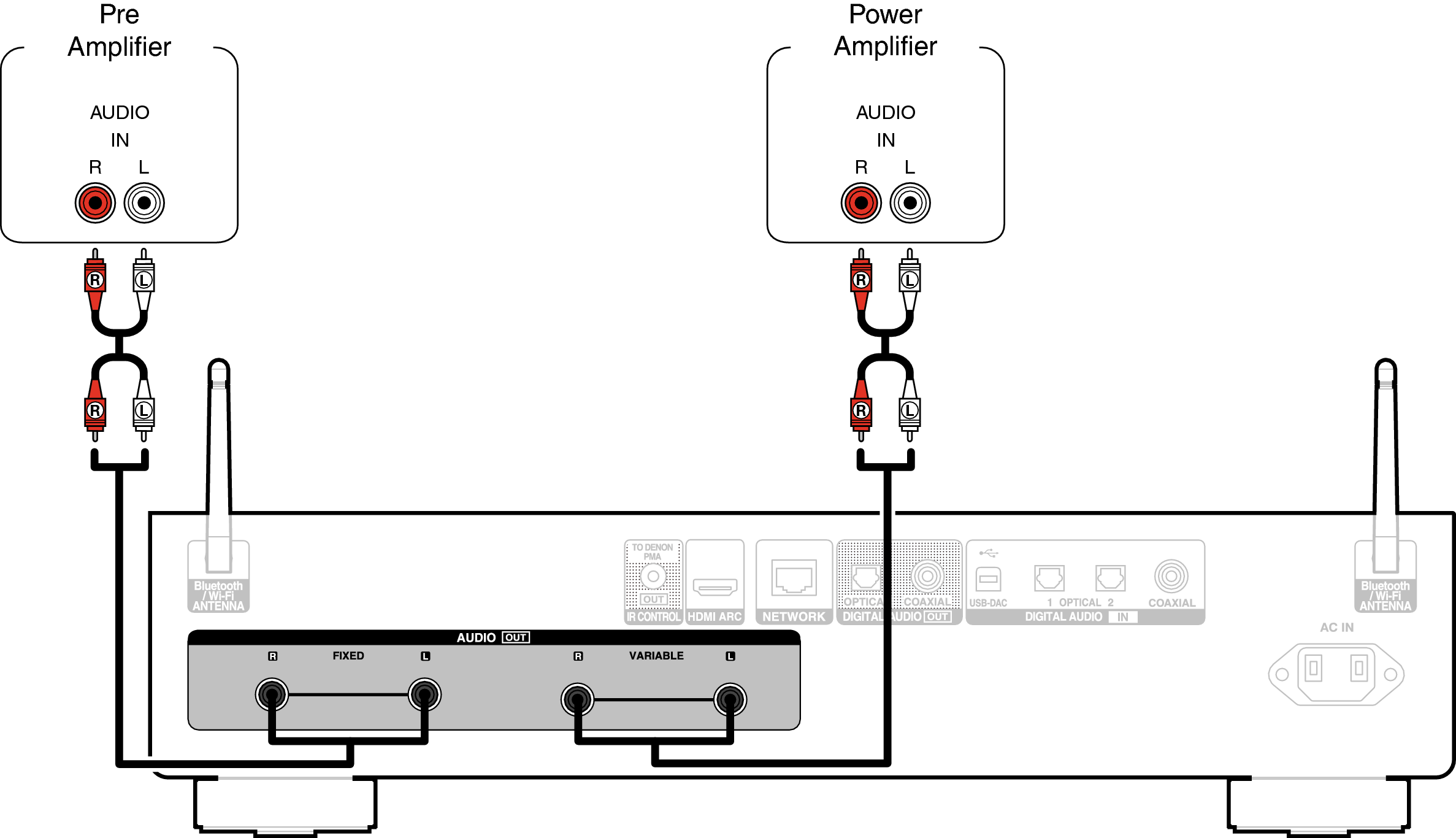

In addition to the normal analog audio output connectors (FIXED) this unit has analog audio output connectors (VARIABLE) that allow you to adjust the volume of the audio signal output from this unit. Connect the power amplifier to the analog audio output connectors (VARIABLE) and press the VOLUME kurosankaku Sankaku-Reverse buttons on the remote control to adjust the volume of the audio signal output from this unit.

Conne AnalogOut DNP2000NE
NOTE

Do not connect a power amplifier to the analog audio output connectors (FIXED). Connecting a power amplifier may cause damage to the speakers.

In the settings menu, set the audio output terminal for “Line Out Level” to “Variable” or “Fixed”. link

To adjust the volume of the audio signal output from the analog audio output connectors (VARIABLE) of this unit using the remote control, set the remote control operation mode of the volume buttons to network audio player operation mode. link

While using HDMI ARC for TV connection it is highly recommended for the best volume control experience to use the variable output from this unit to connect to the amplifier.
