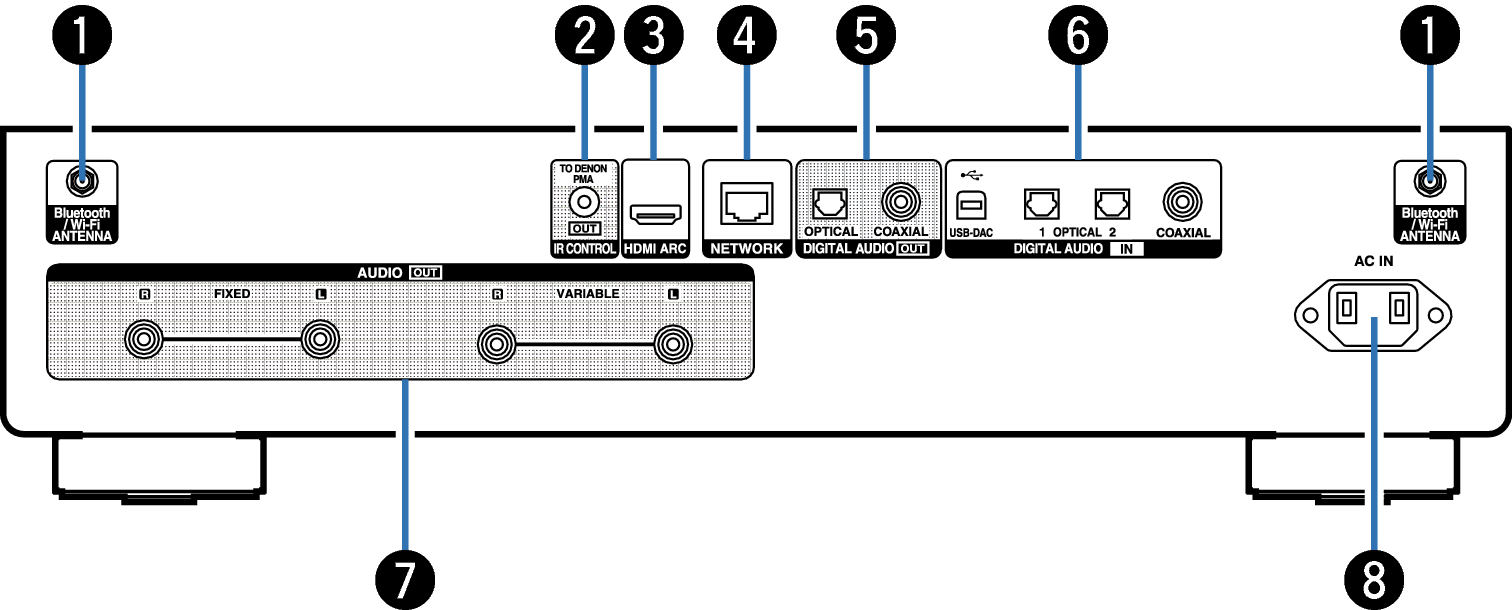

Rear panel

Name Rear small DNP2000NE

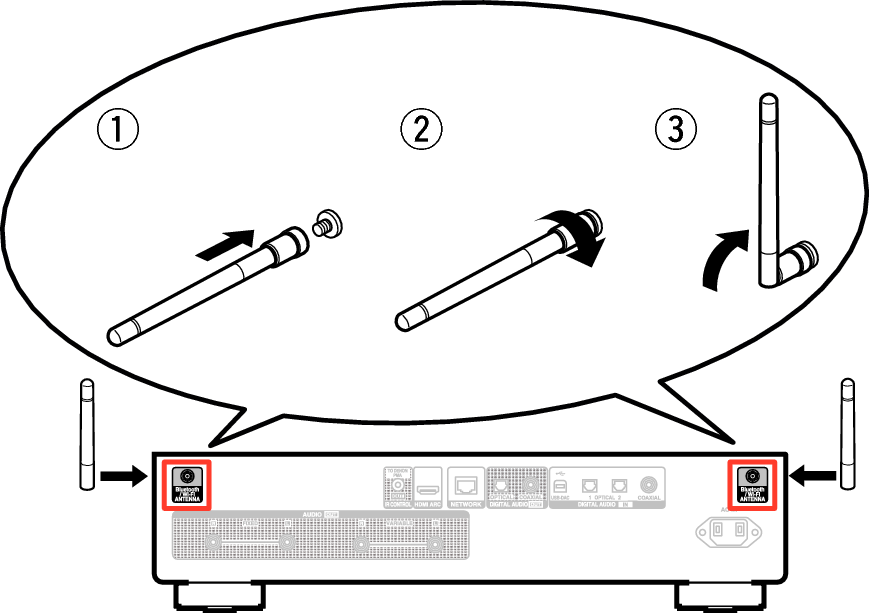

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle DNP2000NE

IR CONTROL connector

Connects to a Denon amplifier that is equipped with a IR CONTROL connector. link

HDMI connector (HDMI ARC)

Used to connect an ARC function-compatible TV. link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

DIGITAL AUDIO OUT connectors

Used to connect an amplifier or D/A converter that has a digital input connectors. link

DIGITAL AUDIO IN connectors

Used to connect a TV with an optical or coaxial digital terminal. link

Used to connect devices equipped with digital audio output connectors. link

AUDIO OUT connectors

Used to connect devices equipped with analog audio inputs connectors or an external power amplifier. link

AC inlet (AC IN)

Used to connect the power cord. link
