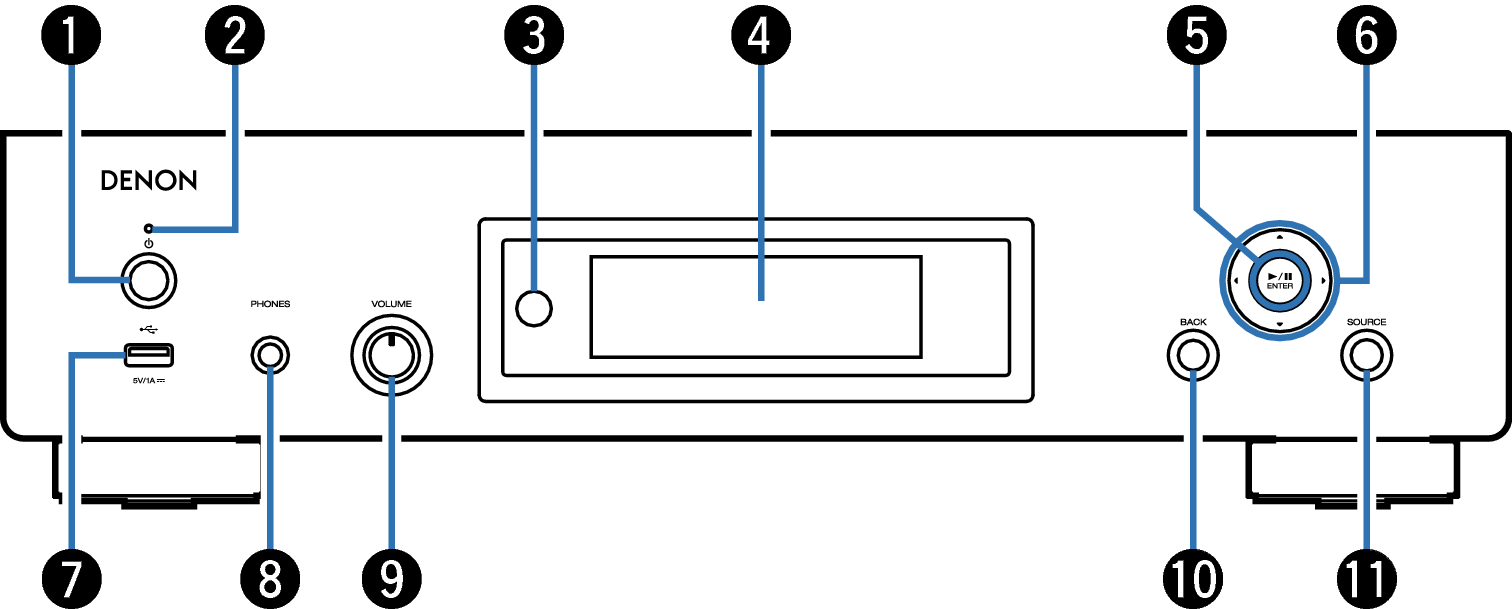

Front panel

Power button

This turns the power on/off (standby). link

Power indicator

This is lit as follows according to the power status:

Green: Power on (Product color: Black or Premium Silver)

White: Power on (Product color: Silver Graphite)

Off: Normal standby

Red:

When “Network Control” is set to “On”link

When “Auto-Play” is set to “On”link

Remote control sensor

This receives signals from the remote control unit. link

Display

This displays various pieces of information.

Playback/Pause/ENTER button ( / /ENTER)

Plays back and pauses tracks, and enters the selected content.

Cursor buttons ( )

These select items.

USB port ( )

This is used to connect USB storages (such as USB flash drives). link

Headphones jack (PHONES)

Used to connect headphones.

Headphone volume control knob (VOLUME)

Adjusts the headphone volume.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

BACK button

Returns to the previous item.

SOURCE button

This selects the input source. link
