Sound mode that can be selected for each input signal
The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.
Adjust the sound field effect with the menu “Surr.Parameter” to enjoy surround sound the way you like it. link

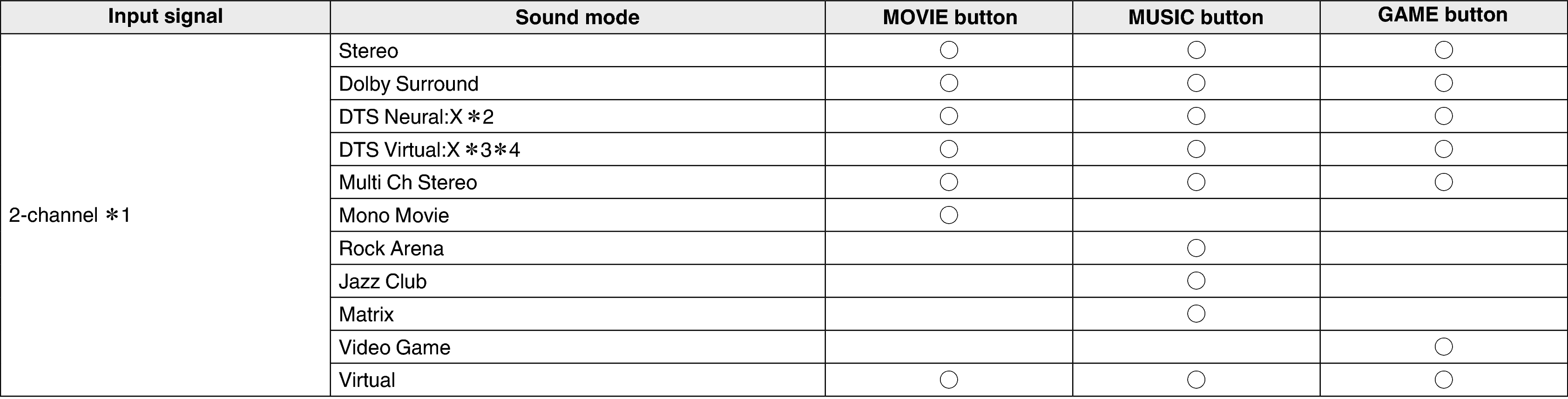

![Pict Soundmode1 S96](fig/Pict Soundmode1 S96_DRDZILrskympzt.png)
2-channel also includes analog input.
This mode plays back 2-channel sources in 5.1 or 7.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.
It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
It cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.

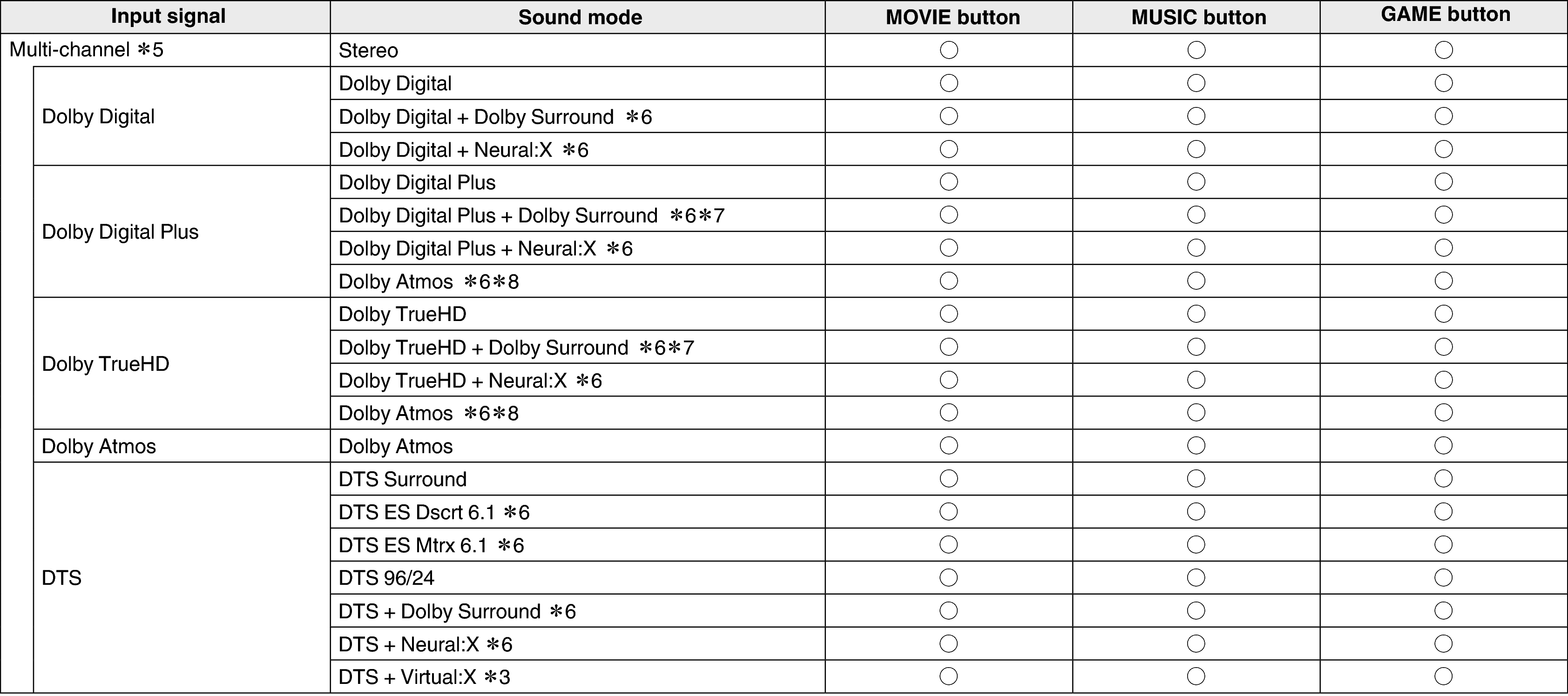

![Pict Soundmode2 S96](fig/Pict Soundmode2 S96_DRDZILnahaddgj.png)
It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
This cannot be selected when headphones are used.
This can be selected when the input signal does not contain Dolby Atmos.
This can be selected when the input signal contains Dolby Atmos.

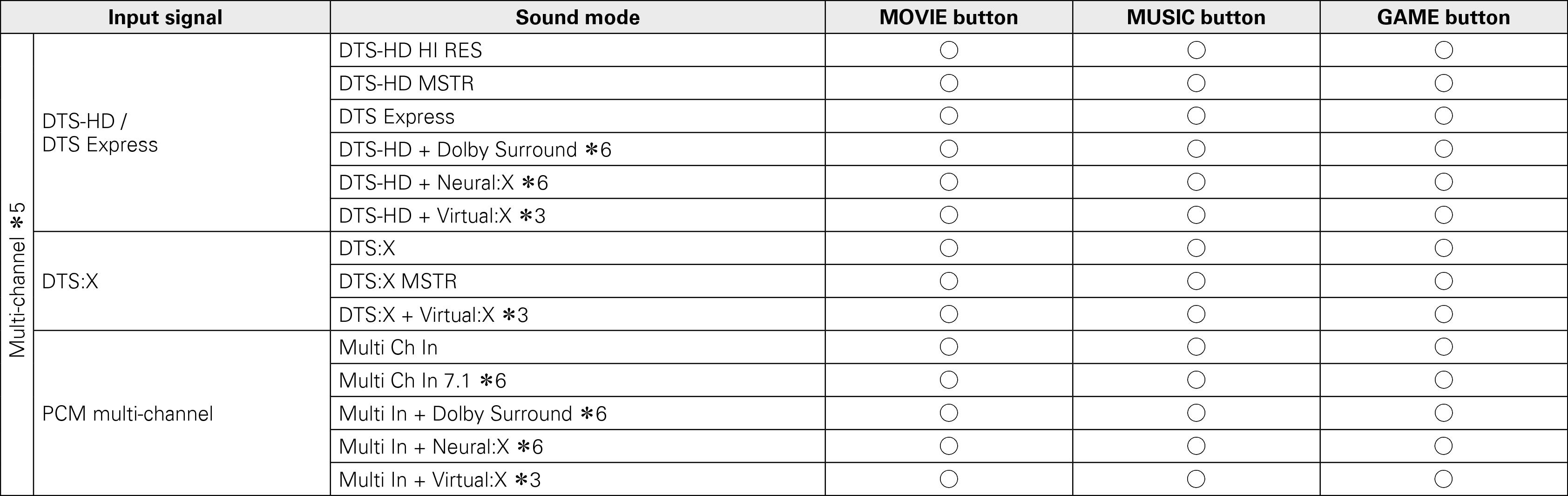

![Pict Soundmode3 S76](fig/Pict Soundmode3 S76_RQIFILyukdsvwy.png)
It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
This cannot be selected when headphones are used.

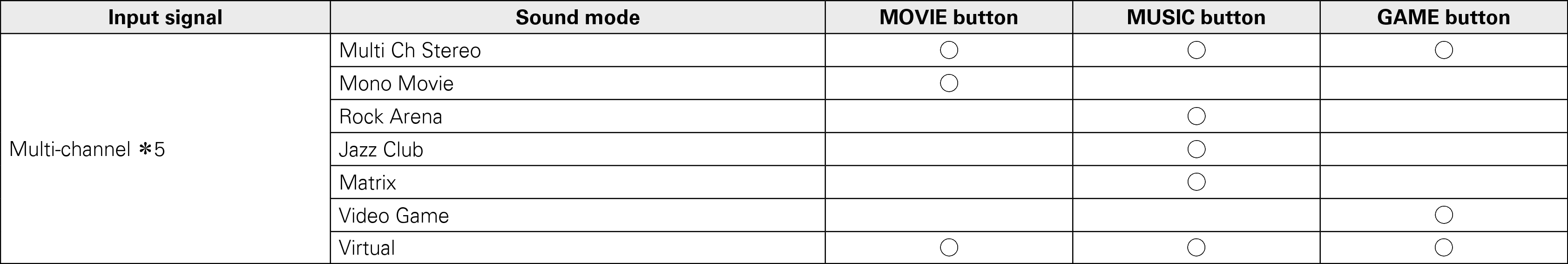

![Pict Soundmode4 S76](fig/Pict Soundmode4 S76_RQIFILkxofiayw.png)
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

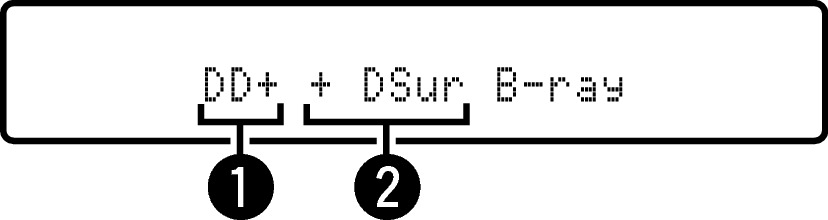

Views on the display
![Disp DOLBY DIGITAL S76](fig/Disp DOLBY DIGITAL S76_DRDZILwarsohwe.png)
Shows a decoder to be used.
In the case of the Dolby Digital Plus decoder, “ ” is displayed.
Shows a decoder that creates sound output.
“ ” indicates that the Dolby Surround decoder is being used.
