Connecting a game console or player device compatible with the 8K

This unit supports 8K HDMI video signals.

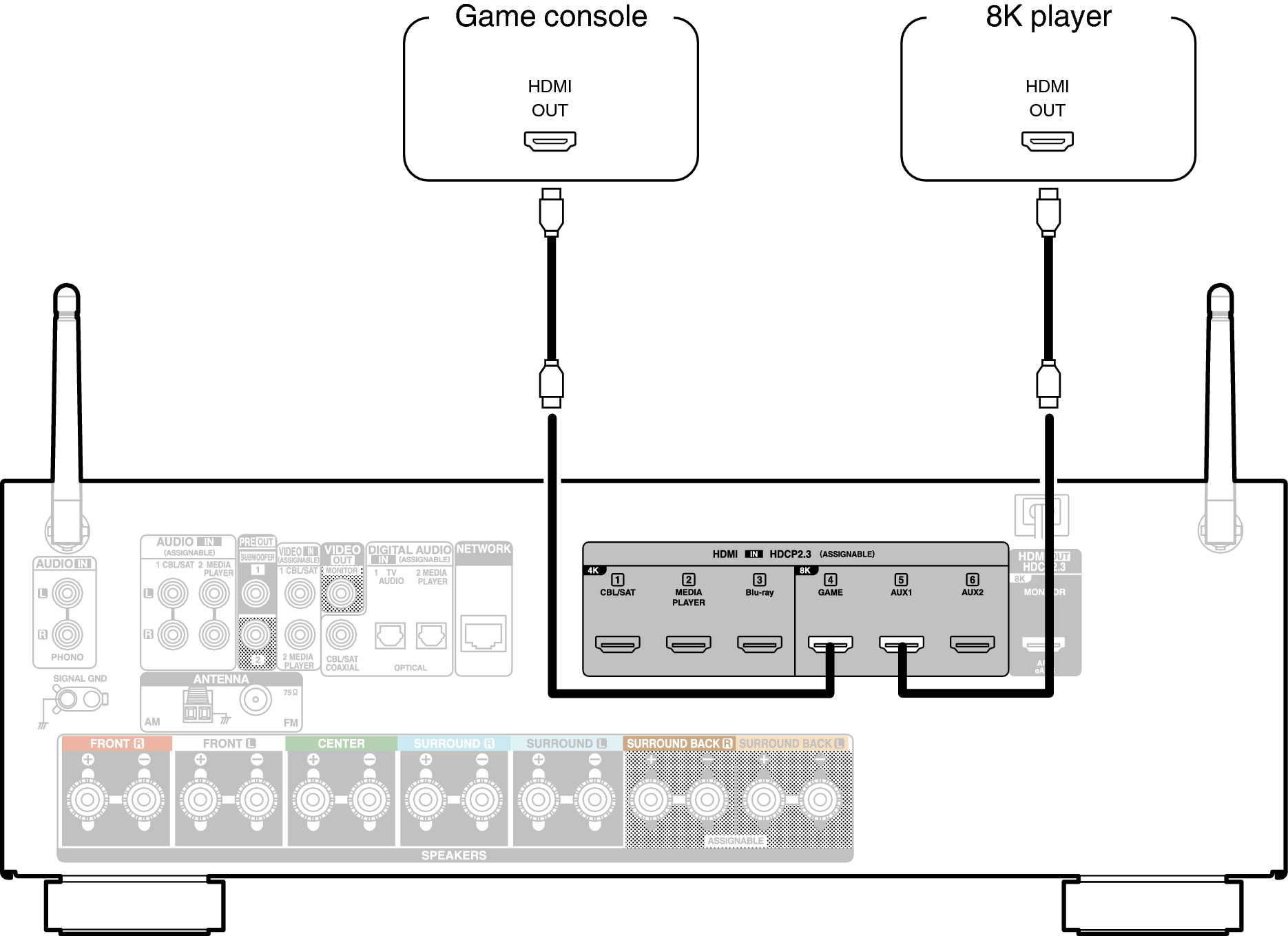

If your game console or player device supports 8K, connect it to the HDMI 4, HDMI 5 or HDMI 6 connector on your device.

Conne 8K S76E3

To enjoy 8K or 4K 120Hz video, connect an 8K-compatible TV with a certified “Ultra High Speed HDMI cable”.

Set “4K/8K Signal Format” to “8K Enhanced” in the menu to enjoy 8K video. link
