Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
The color of the menu screen and operations content displayed on the television is different from normal
Controlling the unit from a web control
Switch the “Network Control” setting to “Always On”. link

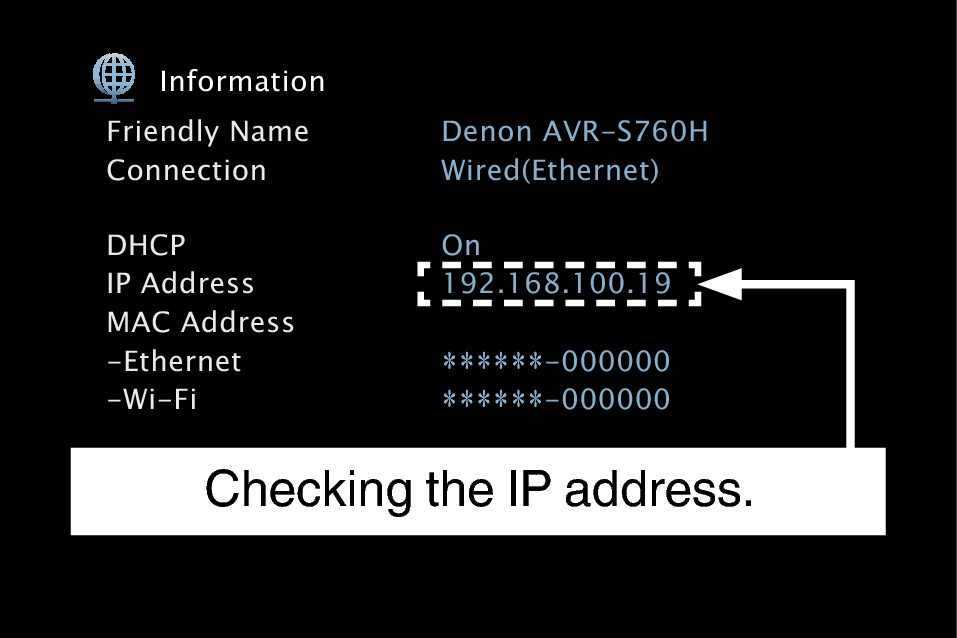

Check the IP address of this unit with “Information”. link
Start up the web browser.

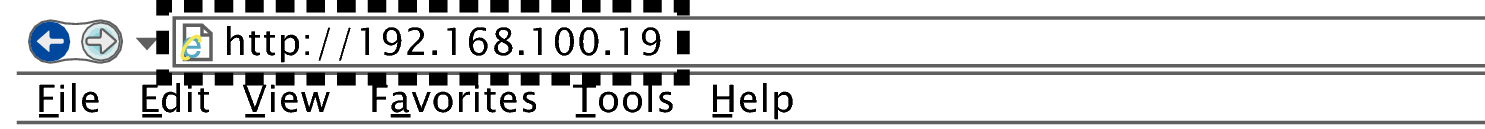

Enter the IP address of this unit in browser’s address box.
For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”.
When the top menu is displayed on the web browser, click on the menu item you want to operate.
