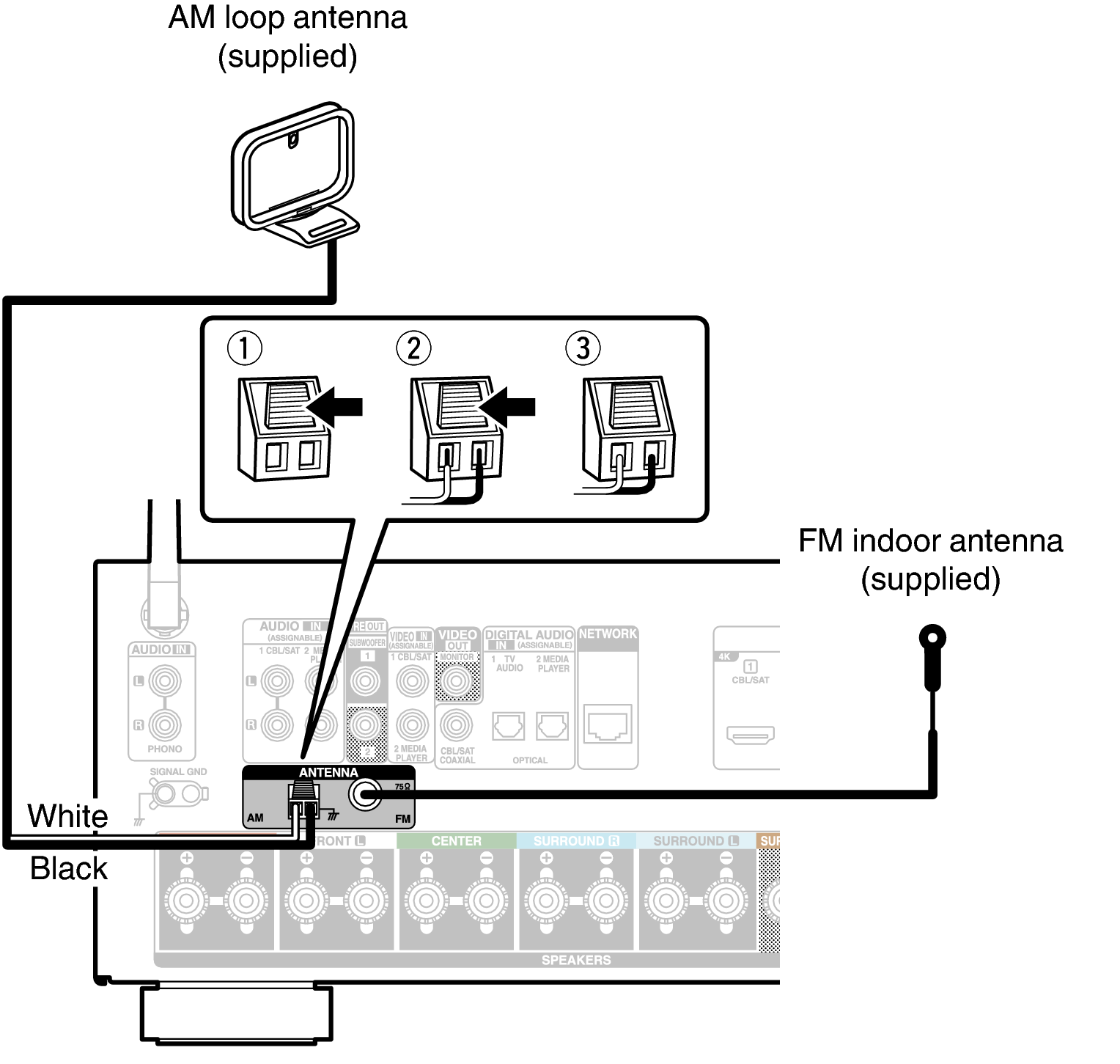

Connecting FM/AM antennas
Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. (Listening to FM/AM broadcastslink)
If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.
NOTE
Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
Using the AM loop antenna

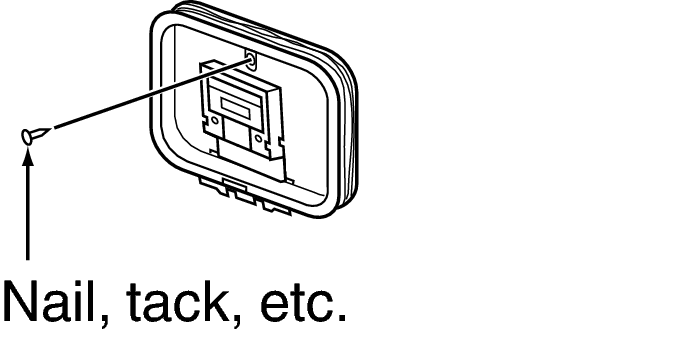

Suspending on a wall
Suspend directly on a wall without assembling.

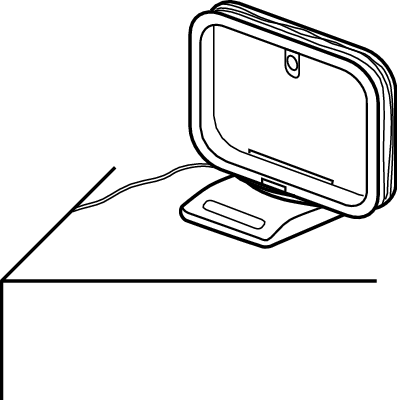

Standing alone
Use the procedure shown above to assemble.
When assembling, refer to “AM loop antenna assembly”.

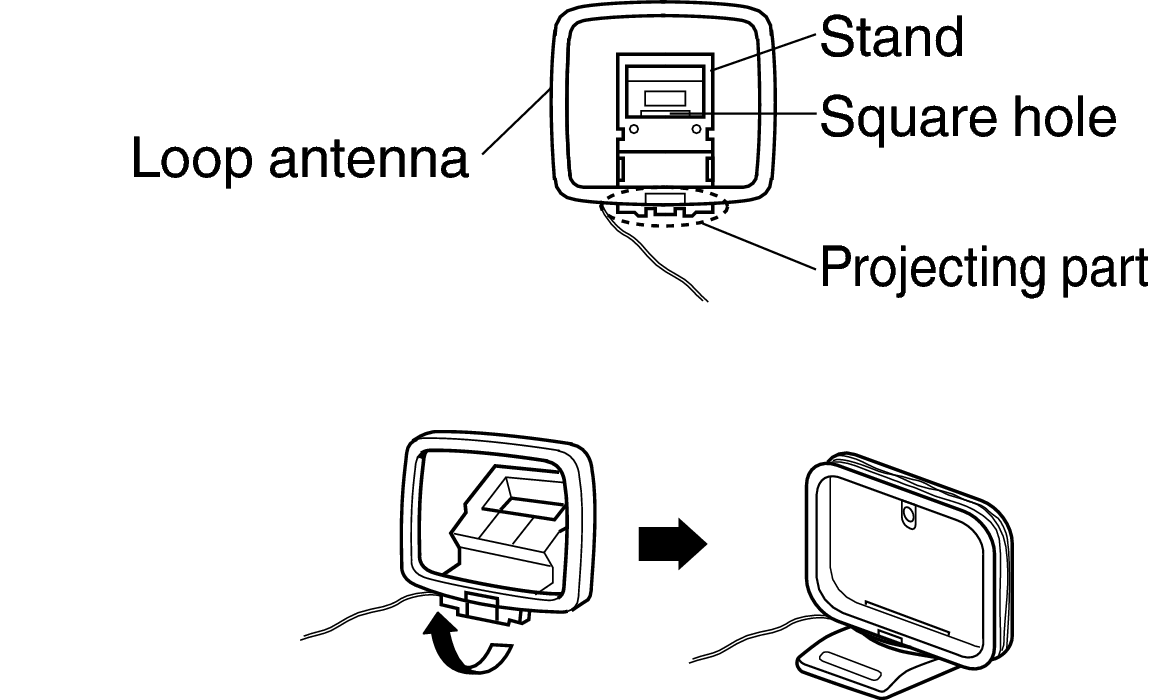

AM loop antenna assembly
Put the stand section through the bottom of the loop antenna from the rear and bend it forward.
Insert the projecting part into the square hole in the stand.
