Auto surround playback

This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.
Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.

Press PURE to select “Auto”.

Auto surround playback begins.

Description of sound mode types

Dolby sound mode

Sound mode type

Description

Dolby Surround

This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field.

Dolby Digital

This mode can be selected when playing sources recorded in Dolby Digital.

Dolby TrueHD

This mode can be selected when playing sources recorded in Dolby TrueHD.

Dolby Digital Plus

This mode can be selected when playing sources recorded in Dolby Digital Plus.

Dolby Atmos

This mode can be selected when playing back content encoded with Dolby Atmos.
It decodes Dolby Atmos content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use ceiling speakers and Dolby Atmos Enabled speakers to realize a three-dimensional sound field.

DTS sound mode

Sound mode type

Description

DTS Neo:X

This matrix decoding technology uses the DTS Neo:X decoder to playback 2-channel source or 5.1/6.1/7.1-channel surround sources as a maximum of 11.1-channel surround sound.
The “Music” mode is suitable for playing music, the “Cinema” mode is suitable for playing movies and the “Game” mode is suitable for playing games.

DTS Surround

This mode can be selected when playing sources recorded in DTS.

DTS ES Dscrt6.1∗

This mode is suitable for playing discs recorded in DTS-ES.
The surround back channel added using the discrete method is played as an independent channel. Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.

DTS ES Mtrix6.1∗

This mode is suitable for playing discs recorded in DTS-ES.
The surround back channel added to the surround-left and surround-right channels by a matrix encoder at software recording time is decoded by this unit’s matrix decoder and played from each channel (surround left, surround right, surround back).

DTS 96/24

This mode can be selected when playing sources recorded in DTS 96/24.

DTS-HD

This mode can be selected when playing sources recorded in DTS-HD.

DTS Express

This mode can be selected when playing sources recorded in DTS Express.

This can be selected when “Speaker Config.” - “Surr. Back” is not set to “None”. link

Upgrade (Auro-3D)

Auro-3D sound mode

Sound mode type

Description

Auro-3D

This mode uses an Auro-3D decoder to create three-dimensional audio output using the Height Channel. It is ideal for playback of signals encoded as Auro-3D with a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to create highly realistic three-dimensional audio output.

Auro-2D Surround

This mode uses an Auro-3D decoder to create Surround Sound without a Height Channel. It is ideal for playback of signals encoded as Auro-3D without a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to output Surround Sound.

PCM multi-channel sound mode

Sound mode type

Description

Multi Ch In

This mode can be selected when playing multi-channel PCM/DSD sources.

Audyssey DSX® sound mode

Sound mode type

Description

Audyssey DSX® (A-DSX)∗

This mode creates playback for the new channels (front wide or front height) in 5.1-channel systems. By adding front wide or front height channels, the surround sound effects sound become more three dimensional and realistic.

This can be selected when a setting other than “None” is selected for “Front Height” or “Front Wide”, and a setting other than “None” is selected for “Center” in “Speaker Config.”. link

Original sound mode

Sound mode type

Description

Multi Ch Stereo

This mode is for enjoying stereo sound from all speakers.
Stereo audio (2-channel) sources are played back via the front (L/R) speakers, the surround speakers and surround back speakers (if connected).

Rock Arena

This mode simulates the expansive sound of a live concert in an arena.

Jazz Club

This mode simulates the experience of being in an intimate jazz club.

Mono Movie

This mode works with monaural audio sources and delivers a surround sound effect. For optimum channel balance and surround sound effects, connect the monaural source to both of the front (L/R) audio inputs.

Video Game

This mode provides an exciting, dynamic surround sound effect with your favorite action video games.

Matrix

This mode adds a spacious surround sound effect with stereo music sources.

Virtual

This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones.

Auto sound mode

Sound mode type

Description

Auto

In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.
If the input signal is analog or PCM (2-channel), stereo playback is used. For Dolby Digital or DTS, the music is played back according to the respective channel number.

Stereo sound mode

Sound mode type

Description

Stereo

This mode plays 2-channel stereo audio with no additional surround sound processing.

Sound is output from the front left and right speakers, and subwoofer if connected.

When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing.

Direct sound mode

Sound mode type

Description

Direct

This mode plays back audio as recorded in the source.

Pure Direct

This mode plays back an even higher quality sound than the “Direct” mode.
The following circuits are stopped in order to further improve sound quality.

Display indicator circuit of the main body (display will go off.)

The analog video input/output switcher and processor is disabled.

Sound mode that can be selected for each input signal

The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link

Input signal

Sound mode

Sound mode

MOVIE

MUSIC

GAME

2-channel ∗1

Stereo

Circle-Large

Circle-Large

Circle-Large

Dolby Surround

Circle-Large

Circle-Large

Circle-Large

DTS Neo:X Cinema ∗2

Circle-Large

DTS Neo:X Music ∗2

Circle-Large

DTS Neo:X Game ∗2

Circle-Large

Circle-Large

Multi Ch Stereo

Circle-Large

Circle-Large

Circle-Large

Mono Movie

Circle-Large

Rock Arena

Circle-Large

Jazz Club

Circle-Large

Matrix

Circle-Large

Video Game

Circle-Large

Virtual

Circle-Large

Circle-Large

Circle-Large

2-channel also includes analog input.

This mode plays back 2-channel sources in 5.1, 7.1 or 9.1-channel playback. It cannot be selected when headphones are used, or when only front speakers are used.

Input signal

Sound mode

Sound mode

MOVIE

MUSIC

GAME

Multi-channel ∗3

Stereo

Circle-Large

Circle-Large

Circle-Large



Dolby Digital

Dolby Digital

Circle-Large

Circle-Large

Circle-Large

Dolby Digital + Dolby Surround

Circle-Large

Circle-Large

Circle-Large

Dolby Digital A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

Dolby Digital + Neo:X Cinema

Circle-Large

Dolby Digital + Neo:X Music

Circle-Large

Dolby Digital + Neo:X Game

Circle-Large

Dolby TrueHD

Dolby TrueHD

Circle-Large

Circle-Large

Circle-Large

Dolby TrueHD + Dolby Surround∗5

Circle-Large

Circle-Large

Circle-Large

Dolby Atmos∗6

Circle-Large

Circle-Large

Circle-Large

Dolby TrueHD A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

Dolby TrueHD + Neo:X Cinema

Circle-Large

Dolby TrueHD + Neo:X Music

Circle-Large

Dolby TrueHD + Neo:X Game

Circle-Large

Some sound modes cannot be selected depending on the audio format or number of channels of the input signal. For details, see “Types of input signals, and corresponding sound modes” link.

These modes add new channels to 5.1-channel surround using Audyssey DSX® processing. link

This can be selected when the input signal does not contain Dolby Atmos.

This can be selected when the input signal contains Dolby Atmos.

Input signal

Sound mode

Sound mode

MOVIE

MUSIC

GAME

Multi-channel ∗3

Dolby Digital Plus

Dolby Digital Plus

Circle-Large

Circle-Large

Circle-Large

Dolby Digital Plus + Dolby Surround∗5

Circle-Large

Circle-Large

Circle-Large

Dolby Atmos∗6

Circle-Large

Circle-Large

Circle-Large

Dolby Digital Plus A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

Dolby Digital Plus + Neo:X Cinema

Circle-Large

Dolby Digital Plus + Neo:X Music

Circle-Large

Dolby Digital Plus + Neo:X Game

Circle-Large

Dolby Atmos

Dolby Atmos

Circle-Large

Circle-Large

Circle-Large

DTS

DTS Surround

Circle-Large

Circle-Large

Circle-Large

DTS ES Dscrt 6.1

Circle-Large

Circle-Large

Circle-Large

DTS ES Mtrx 6.1

Circle-Large

Circle-Large

Circle-Large

DTS 96/24

Circle-Large

Circle-Large

Circle-Large

DTS + Dolby Surround

Circle-Large

Circle-Large

Circle-Large

DTS Surround A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

DTS + Neo:X Cinema

Circle-Large

DTS + Neo:X Music

Circle-Large

DTS + Neo:X Game

Circle-Large

Some sound modes cannot be selected depending on the audio format or number of channels of the input signal. For details, see “Types of input signals, and corresponding sound modes” link.

These modes add new channels to 5.1-channel surround using Audyssey DSX® processing. link

This can be selected when the input signal does not contain Dolby Atmos.

This can be selected when the input signal contains Dolby Atmos.

Input signal

Sound mode

Sound mode

MOVIE

MUSIC

GAME

Multi-channel ∗3

DTS-HD /
DTS Express

DTS-HD HI RES

Circle-Large

Circle-Large

Circle-Large

DTS-HD MSTR

Circle-Large

Circle-Large

Circle-Large

DTS-HD MSTR A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

DTS Express

Circle-Large

Circle-Large

Circle-Large

DTS Express A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

DTS-HD + Dolby Surround

Circle-Large

Circle-Large

Circle-Large

DTS-HD HI RES A-DSX ∗4

Circle-Large

Circle-Large

DTS-HD + Neo:X Cinema

Circle-Large

DTS-HD + Neo:X Music

Circle-Large

Circle-Large

DTS-HD + Neo:X Game

Circle-Large

PCM multi-channel

Multi Ch In

Circle-Large

Circle-Large

Circle-Large

Multi Ch In 7.1

Circle-Large

Circle-Large

Circle-Large

Multi In + Dolby Surround

Circle-Large

Circle-Large

Circle-Large

Multi In A-DSX ∗4

Circle-Large

Circle-Large

Circle-Large

Multi In + Neo:X Cinema

Circle-Large

Multi In + Neo:X Music

Circle-Large

Multi In + Neo:X Game

Circle-Large

Some sound modes cannot be selected depending on the audio format or number of channels of the input signal. For details, see “Types of input signals, and corresponding sound modes” link.

These modes add new channels to 5.1-channel surround using Audyssey DSX® processing. link

Input signal

Sound mode

Sound mode

MOVIE

MUSIC

GAME

Multi-channel ∗3

Multi Ch Stereo

Circle-Large

Circle-Large

Circle-Large

Mono Movie

Circle-Large

Rock Arena

Circle-Large

Jazz Club

Circle-Large

Matrix

Circle-Large

Video Game

Circle-Large

Virtual

Circle-Large

Circle-Large

Circle-Large

Some sound modes cannot be selected depending on the audio format or number of channels of the input signal. For details, see “Types of input signals, and corresponding sound modes” link.

Upgrade (Auro-3D)

Input signal

Sound mode

Sound mode

MOVIE

MUSIC

GAME

2-channel ∗1/Multi-channel ∗3

Auro-3D∗7

Circle-Large

Circle-Large

Circle-Large

Auro-2D Surround∗8

Circle-Large

Circle-Large

Circle-Large

2-channel also includes analog input.

Some sound modes cannot be selected depending on the audio format or number of channels of the input signal. For details, see “Types of input signals, and corresponding sound modes” link.

It cannot be selected when headphones are used, or when a speaker configuration without front height speakers is used.

It cannot be selected when headphones are used, or when only front speakers are used.

Views on the display

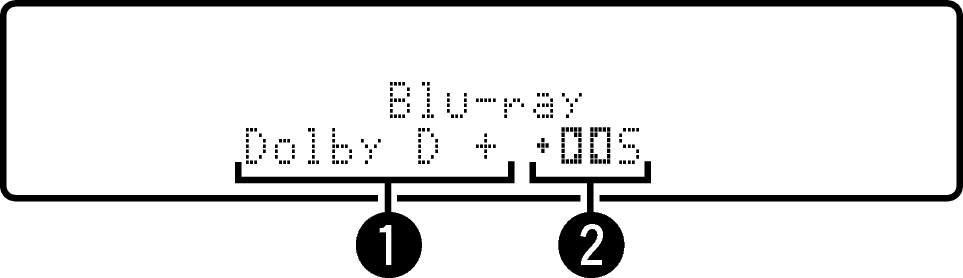

Disp DOLBY DIGITAL

Shows a decoder to be used.

In the case of the Dolby Digital Plus decoder, “Dolby D +” is displayed.

Shows a decoder that creates sound output.

Icon DOLBY Ds ” indicates that the Dolby Surround decoder is being used.
