Operating devices

To operate an external device, press the input source button registered with the preset code, followed by one of the buttons in the following tables.

The “DEV.” indicator lights when an external device is being operated.

The “TV” indicator lights when the TV is being operated.

To operate the menu of this unit, press MAIN before operating the unit. The “AVR” indicator lights when this unit is being operated.

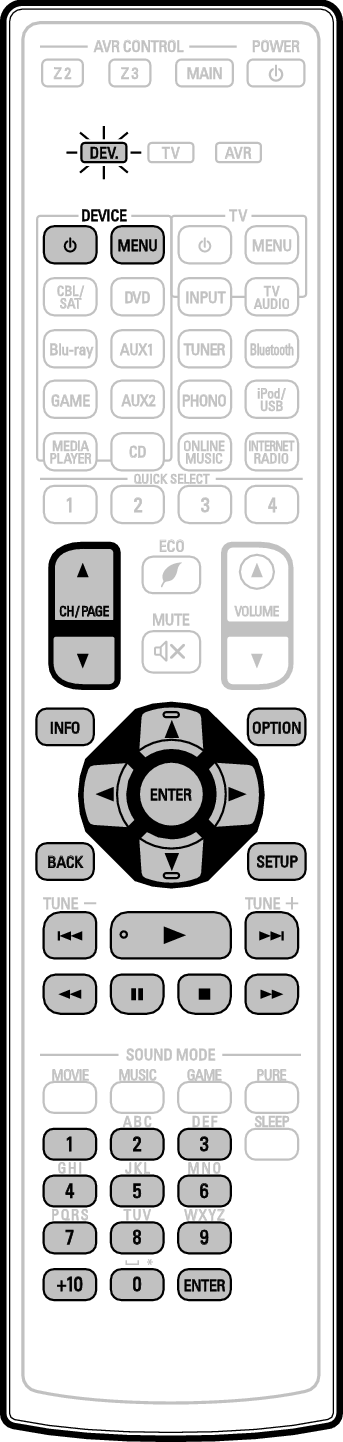

CBL/SAT group(Set top box for satellite (SAT)/cable TV (CBL)/Media player/IP TV) operation

RC CBL SAT

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

Menu

CH/PAGE  kurosankaku Sankaku-Reverse

Switch channels (up/down)

INFO

Information

OPTION

Sub menu, Option

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER(Cursor)

Enter

BACK

Back

SETUP

Home menu

Skip-Left Skip-Right

Skip chapter

Triangle Right

Playback

Rewind Forward

Fast-reverse / Fast-forward

Pause

Pause

Square Black

Stop

0 – 9, +10

Channel selection

ENTER(Number)

3 digit entry

Depending on the device, the DEVICE  Power Button button only performs the power-on operation.

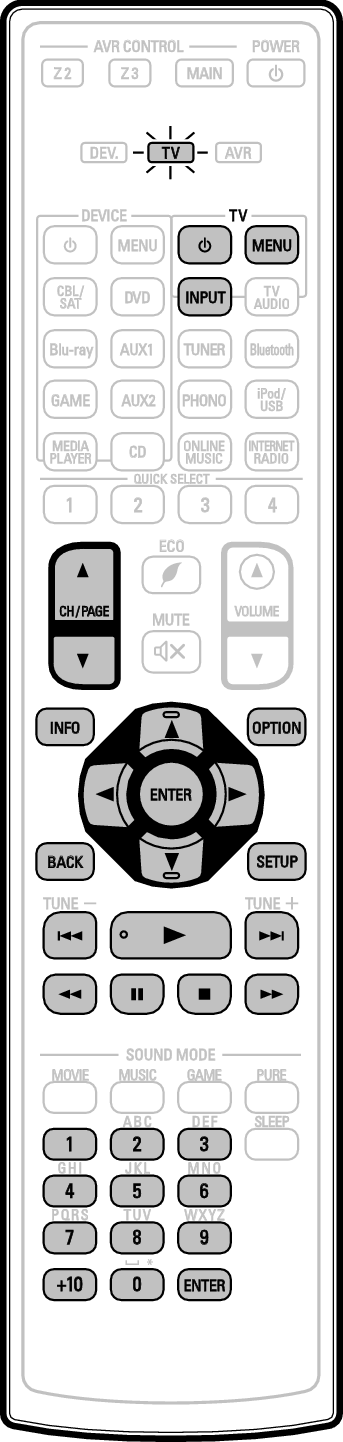

TV group(TV) operation

RC TV AVRX5200WE3

Operation buttons

Function

Operation buttons

Function

TV  Power Button

TV power on/off

TV INPUT

Switch TV input

TV MENU

TV menu

CH/PAGE  kurosankaku Sankaku-Reverse

Switch channels (up/down)

INFO

Information

OPTION

Sub menu, Option

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER(Cursor)

Enter

BACK

Back

SETUP

Setup

Skip-Left Skip-Right

Skip chapter

Triangle Right

Playback

Rewind Forward

Fast-reverse / Fast-forward

Pause

Pause

Square Black

Stop

0 – 9, +10

Channel selection

ENTER(Number)

3 digit entry

Depending on the device, the power may not be turned off for the DEVICE  Power Button and TV  Power Button buttons.

TV  Power Button and TV INPUT buttons can be operated at any time without pressing the TV button.

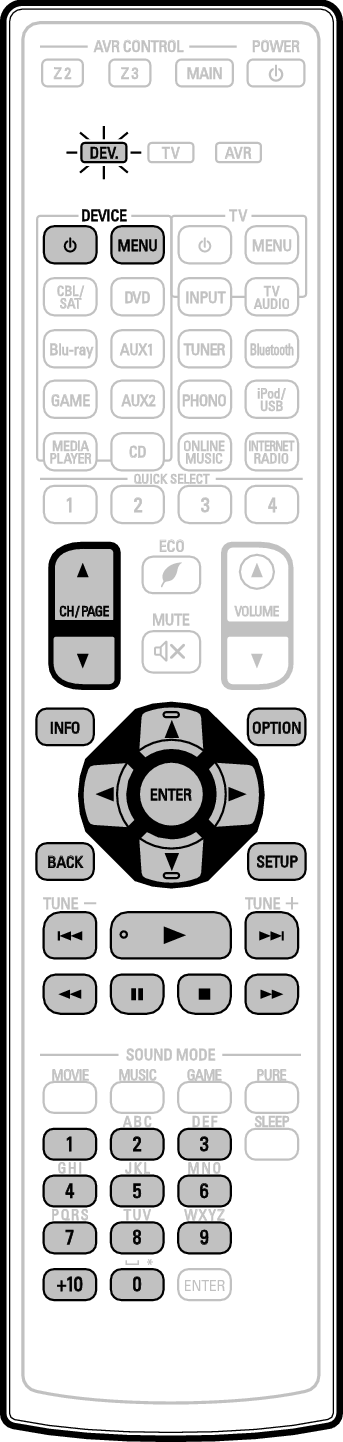

VCR/PVR group(Video cassette recorder (VCR)/personal video recorder (PVR)) operation

RC VCR AVRX5200WE3

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

Menu

CH/PAGE  kurosankaku Sankaku-Reverse

Switch channels (up/down)

INFO

Information

OPTION

Sub menu, Option

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

BACK

Back

SETUP

Setup

Skip-Left Skip-Right

Skip chapter

Triangle Right

Playback

Rewind Forward

Fast-reverse / Fast-forward

Pause

Pause

Square Black

Stop

0 – 9, +10

Select title, chapter or channel selection

Depending on the device, the power may not be turned off for the DEVICE  Power Button and TV  Power Button buttons.

BD/DVD group(Blu-ray Disc player/HD-DVD player/DVD player/DVD recorder) operation

RC BD DVD AVRX5200WE3

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

(Popup) Menu

CH/PAGE  kurosankaku Sankaku-Reverse

Switch channels (up/down)

INFO

Information

OPTION

Top menu

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

BACK

Back

SETUP

Setup, Home menu

Skip-Left Skip-Right

Skip chapter

Triangle Right

Playback

Rewind Forward

Fast-reverse / Fast-forward

Pause

Pause

Square Black

Stop

0 – 9, +10

Select title, chapter or channel selection

Depending on the device, the DEVICE  Power Button button only performs the power-on operation. (Depending on the device, some Denon models can only be operated with the power turned on.)

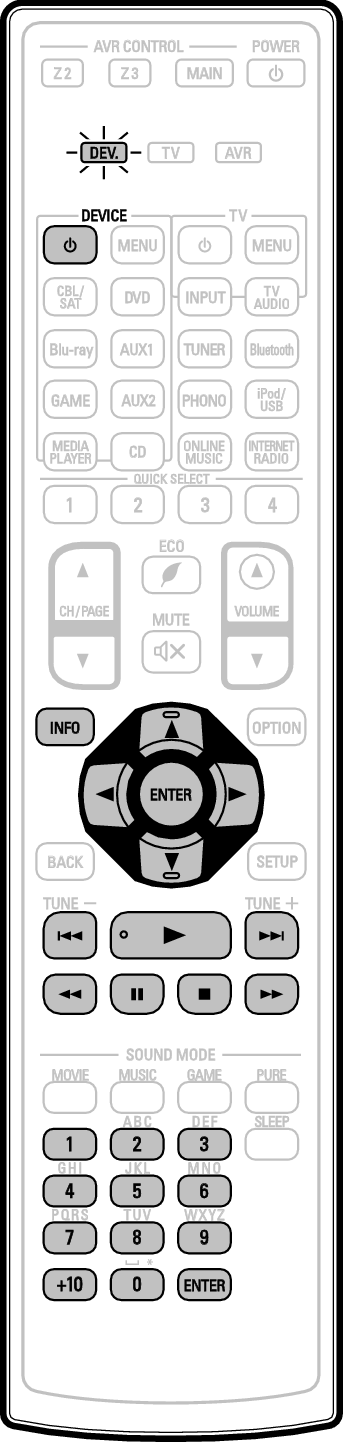

Audio group(CD player/CD recorder) operation

RC CD AVRX5200WE3

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

INFO

Information

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

Skip-Left Skip-Right

Skip track

Triangle Right

Playback

Rewind Forward

Fast-reverse / Fast-forward

Pause

Pause

Square Black

Stop

0 – 9, +10

Track selection

Depending on the device, the DEVICE  Power Button button only performs the power-on operation. (Depending on the device, some Denon models can only be operated with the power turned on.)
